GM500 Series Industrial Digital Pressure Manometer with LCD Display and USB Charging
Price:
EXW US$35~US$69
MOQ:
40
Delivery Time:
3-5 working days
Brand:
Bestone,Benetech
Product Description
Pressure Manometer GM500 Series Industrial Differential Pressure Manometer with LCD Display
With 11 selectable units: bar, mbar, Kpa, Kgf/cm², mmHg, cmH2O, Ozf/in², Psi, inHg, inH2O, ftH2O, this unit features Data Hold/Data Correction/Auto Off and connection with PC via APP for data access.
Introduction and Application
Pressure Manometer can be widely used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice differential pressure, etc. It is also used for air gas ratio control and automatic valve control during combustion, as well as blood pressure and respiratory pressure monitoring in healthcare equipment.
Features
- 11 Pressure units available: bar, mbar, Kpa, Kgf/cm², mmHg, cmH2O, Ozf/in², Psi, inHg, inH2O, ftH2O.
- USB charging and PC software communication.
- MAX/MIN/AVG measurement capabilities.
- Difference/record model.
- Unit measure switch.
- Measurable differential pressure (only GM505).
- Data retention function.
- Backlight display.
- Automatic shutdown.
- Temperature compensation (only GM511, GM520, GM522, GM525).
- Zero and calibration functions.
- Low battery indicator.
Product Technical Parameters
| Model | GM505 | GM510 | GM511 | GM520 | GM522 | GM525 |
|---|---|---|---|---|---|---|
| Measuring range | ±2.49kPa | ±10kPa | ±10kPa | ±35Kpa | ±100Kpa | ±35Kpa |
| Precision | ±0.3%FSO (25℃) | |||||
| Repeatability | x | ±0.2% | ||||
| Linear/lag | x | ±0.29%FSO | ||||
| Reaction time | 0.5S | |||||
| Operating temperature | 0~50°C | |||||
| Storage temperature | -10~60°C | |||||
| Beyond positive pressure range | Err.1 | |||||
| Beyond negative pressure range | Err.2 | |||||
| Power supply | 1.5V AAA battery x 4pcs | |||||
| Weight | 277.8g (included batteries) | 232.5g (included batteries)(only for GM525) | ||||
| Size | 171.4*38*76.5 mm | 144*55*29.4+278*36*36mm(only for GM525) | ||||
Package Contents
- Pressure Manometer: 1pc
- English Instruction Manual: 1pc
- 1.5V AAA battery: 4pcs (no battery for air shipping)
- Transparent PVC hose: 2pcs
- USB cable: 1pc
- Translucent silica gel hose: 2pcs
- Paper color box: 1pc
- Cloth bag: 1pc (only for GM525)

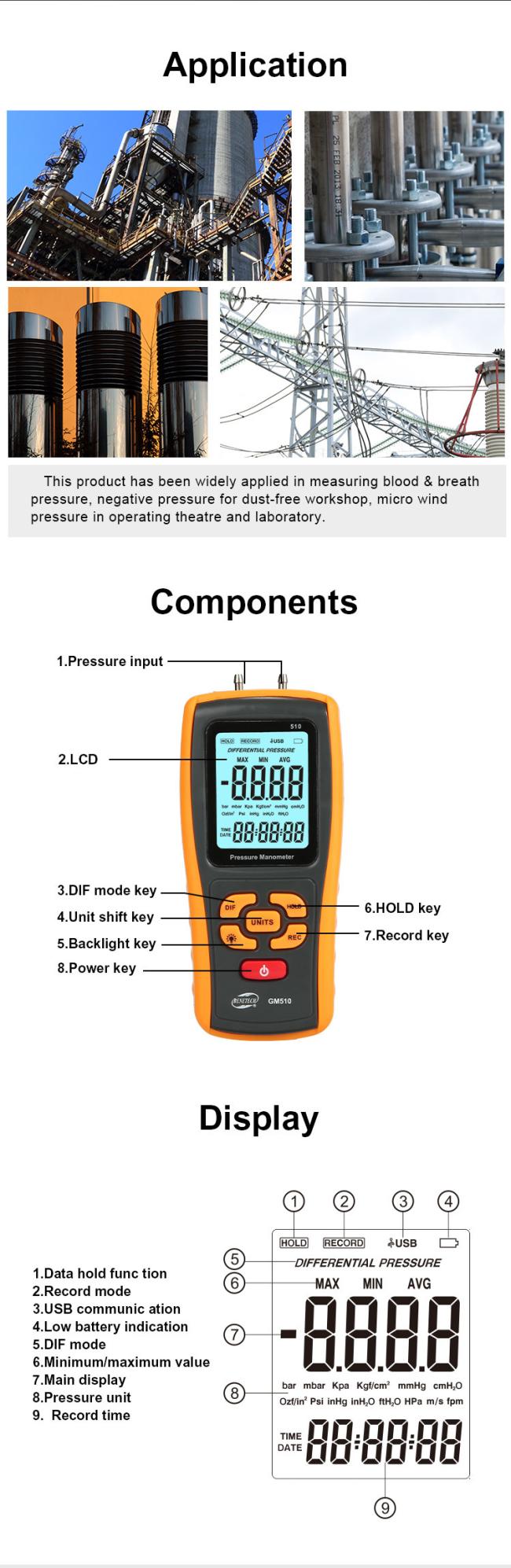

Product Images
