China WT5110 Series RS485 Communication Digital Pressure Manometer with 12 Pressure Units and Differential Pressure Mode for sale

WT5110 Series RS485 Communication Digital Pressure Manometer with 12 Pressure Units and Differential Pressure Mode

Price Negotiable

Price: EXW US$35~US$70

MOQ: 40

Delivery Time: 3-5 working days

Brand: WINTACT,BESTONE

Product Description

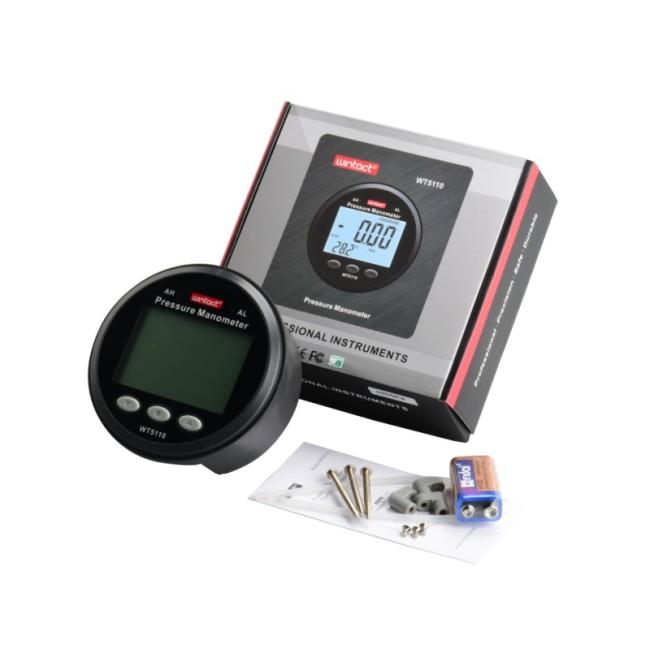

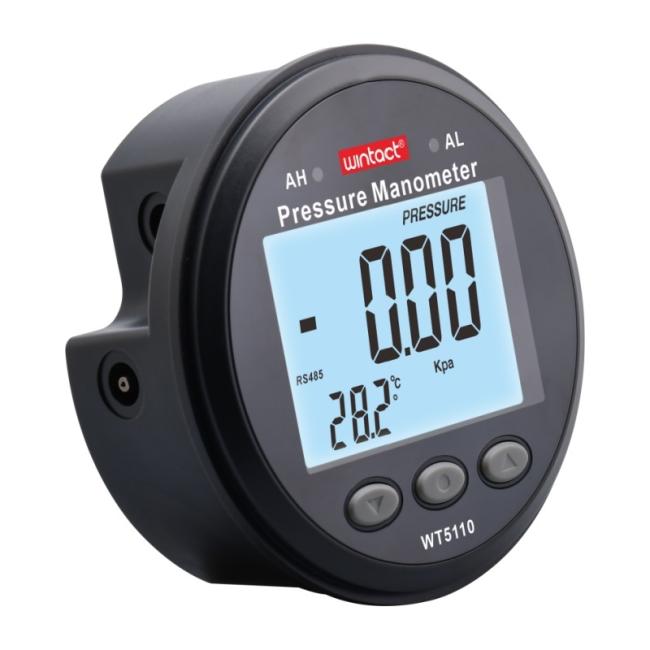

WT5110 Series RS485 Communication Digital Pressure Manometer

Introduction and Application

This product offers 12 selectable pressure units: bar, mbar, Kpa, Kgf/cm², mmHg, cmH₂O, Ozf/in², Psi, inHg, inH₂O, ftH₂O, Pa. It is widely used for measuring fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice differential pressure, and more. Applications also include air gas ratio control and automatic valve control during combustion processes, as well as blood pressure and respiratory pressure monitoring in healthcare equipment.

Key Features

12 pressure units available
RS485 communication interface
Overvalue alarm function
Data hold capability
Separate high and low pressure alarm value settings
Zero adjustment and data correction functions
Low battery alert
Large LCD backlight display
Differential pressure mode

Technical Parameters

Parameter	Specification
Measuring Range	±125Pa, ±250Pa, ±500Pa, ±1Kpa, ±2.5Kpa, ±5Kpa, ±10Kpa, ±50Kpa, ±100Kpa
Operating Temperature Range	-10℃ ~ 60℃
Operating Humidity Range	10%~60% RH
Temperature Accuracy	±2℃
Instrument Power	Approximately 90mW (DC+12V power supply, backlight off, buzzer not ringing)
Backlight Power	Approximately 40mW
Accuracy (Total Error)	±1.5%FS (instruments ≥ 1Kpa range) ±2%FS (instruments < 1Kpa range)
Temperature Compensation Range	-5~50℃
Overload Pressure	3 × FS
Burst Pressure	5 × FS
Source Gas	Non-corrosive, non-ionic gases (such as air and other dry gases)
Charge Mode	5V 1A power adapter or computer connection
Dimensions	160 × 65 × 35mm
Weight	Approximately 176g
