GM320 GM321 GM530 GM531 Mini Digital Infrared Thermometer Non Contact
Price:
US$4.70~US$5.50
MOQ:
80
Delivery Time:
3-5 working days
Brand:
Benetech, Bestone
Product Description

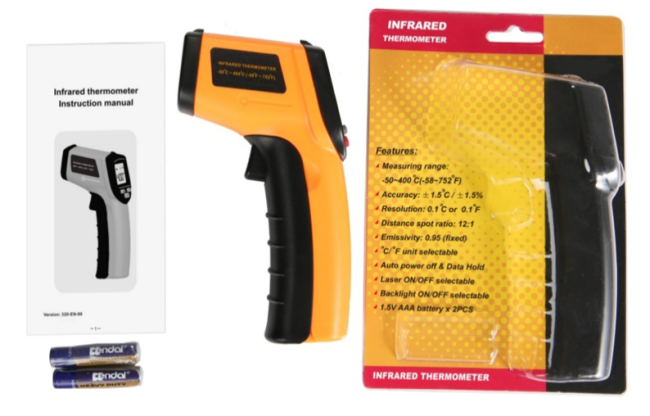

Digital Mini Infrared Thermometers
GM320, GM321, GM530, and GM531 non-contact thermometers for precise surface temperature measurement of hot, hazardous, or hard-to-reach objects safely and efficiently.
How It Works
The infrared thermometer collects emitted infrared energy through its optics, focuses it onto the temperature sensor, which converts the energy into an electrical signal. This signal is amplified and processed by the circuit before being displayed digitally on the LCD screen.
Key Features
- Data retention capability
- Positioning laser for accurate targeting
- Screen backlight function for low-light conditions
- Low battery reminder
- Conversion between ℃ and ℉ units
- Automatic shutdown to conserve battery
- Self-calibration function (GM321 and GM531 models)
- Adjustable emissivity (GM321 and GM531 models)
- Ambient temperature measurement (GM321 and GM531 models)
- Maximum/minimum temperature display (GM321 and GM531 models)
Technical Specifications
| Temperature Range | GM320/GM321: -50℃ to 400℃ (-58°F to 752°F) GM530/GM531: -50℃ to 530℃ (-58°F to 986°F) |
| Accuracy | <0℃ (32℉): ±3℃ (±5℉) >0℃ (32℉): ±1.5% or ±1.5℃ (±2.7℉), whichever is greater |
| Repeatability | 1% of reading or 1℃ |
| Resolution | 0.1℃ or 0.1℉ |
| Response Time | 500 mSec, 95% response |
| Spectral Response | 5~14μm |
| Emissivity | GM320/GM530: 0.95 preset GM321/GM531: 0.10~1.00 adjustable (preset as 0.95) |
| Operating Temperature | 0~40℃ (32~104℉) |
| Operating Humidity | 10~95%RH non-condensing |
| Storage Temperature | -20~60℃ (-4~140℉) |
| Dimensions | 144.5mm × 38mm × 93mm |
| Weight | 115.1g (including battery) |
| Power | 3V (1.5V AAA battery × 2) |
| Battery Life | Non-laser mode: 22 hours Laser mode: 12 hours |
| Distance to Spot Size | 12:1 ratio |
