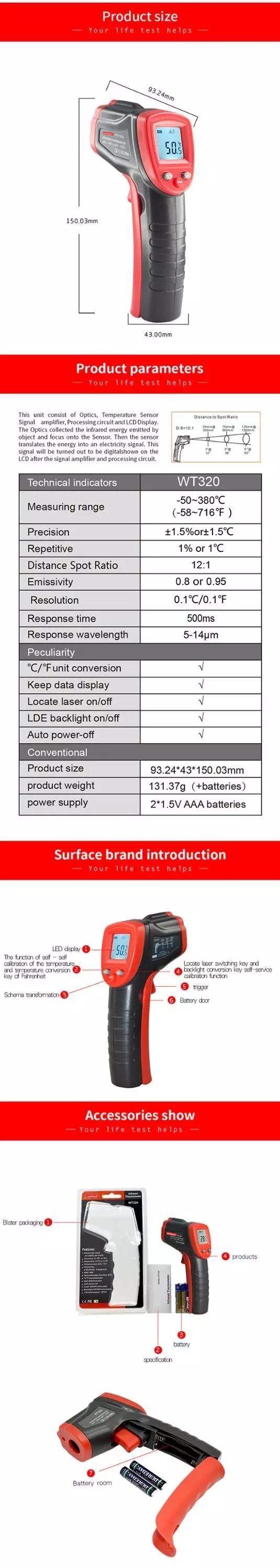

WT320 Industrial Infrared Thermometer with 12:1 Distance Spot Ratio
Applications:
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for
various hot, hazardous or hard-toreach objects without contact safely and quickly. This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Data retention.
Backlit screen.
Low battery reminder.
Automatic shutdown.
℃/℉temperature unit conversion.
Position the laser.
Self-calibration function.
| Temperature range | -50℃~380℃ (-58~716℉) |
|---|---|
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec,95% response |
| Accuracy | >0℃: ±1.5℃or ±1.5%, whichever is greater <0℃: ±3℃ |
| Spectral response | 5-14μm |
| Emissivity | 0.95preset,0.8 optional |
| Operating temperature | 0~40℃ (32~104℉) |
| Operating humidity | 10~95%RHH non-condensing, up to 30℃ (86℉) |
| Distance to Spot size | 12:1 |
| Power supply | 2*1.5V AAA battery |
