WT326A/B/C/D WT327A/B/C/D Digital Infrared Thermometer with Adjustable Emissivity
Price:
US$6.50 to US$9.50
MOQ:
60
Delivery Time:
3-5 working days
Brand:
WINTACT,BESTONE
Product Description
WT326A/B/C/D, WT327A/B/C/D Infrared Thermometer

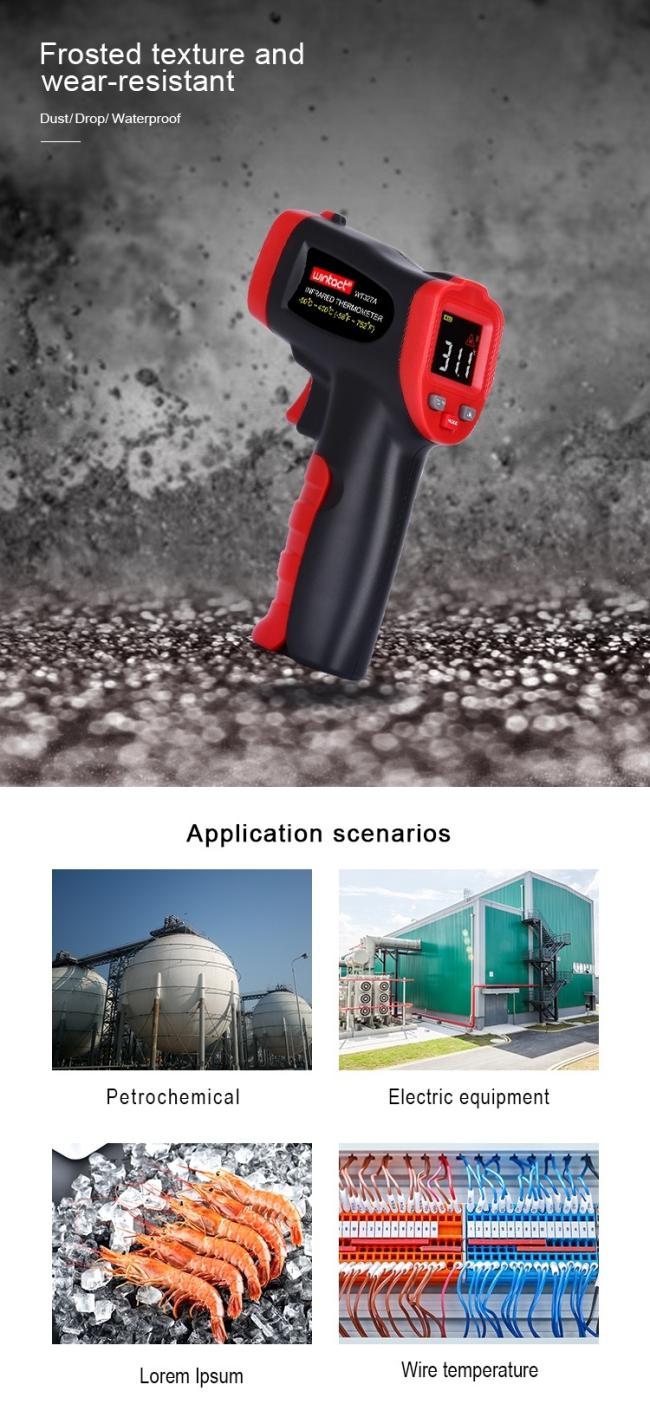

Non-contact digital industrial laser temperature measurement gun for safe, quick surface temperature readings of hot, hazardous, or hard-to-reach objects.
Applications
This infrared thermometer measures surface temperatures of various objects without physical contact. The unit consists of optics, temperature sensor, signal amplifier, processing circuit, and LCD display. The optics collect infrared energy emitted by objects and focus it onto the sensor, which translates the energy into an electrical signal that is processed and displayed digitally on the LCD.
Key Features
- Adjustable emissivity settings
- High-definition color screen display (WT327 models) / LCD with backlight (WT326 models)
- Ambient temperature measurement capability
- High and low temperature alarm system
- Multiple mode conversion options
- Positioning laser conversion
- Zero deviation adjustment
- 9-point laser assisted positioning
Technical Specifications
| Model | WT326A/WT327A | WT326B/WT327B | WT326C/WT327C | WT326D/WT327D |
|---|---|---|---|---|
| Temperature Range | -50℃~400℃ (-58℉~752℉) | -50℃~600℃ (-58℉~1112℉) | -50℃~800℃ (-58℉~1472℉) | -50℃~950℃ (-58℉~1742℉) |
| Display | Backlight LCD (WT326A/B/C/D) / Colorful LCD with backlight (WT327A/B/C/D) | |||
| Emissivity | 0.10~1.00 Adjustable (preset as 0.95) | |||
| Functions | MAX/MIN/AT/CAL | |||
| Accuracy | ≤0℃(32℉): ±3℃(±5℉); >0℃(32℉): ±1.5℃(±2.7℉) or ±1.5%, whichever is greater | |||
| Repeatability | 1% of reading or 1℃, take the bigger value | |||
| Response Time | 0.5s, 95% response | |||
| Spectral Response | 5~14μm | |||
| Auto Shutdown | Approximately 7 seconds | |||
| Power Indicator | Low power indicator for power below 2.5V | |||
| Overload Indicator | "Hi"/"Lo" displayed | |||
| Environment Limits | "AH"/"AL" displayed when exceeding upper/lower limits | |||
| Operating Temperature | 0~40℃ (32~104℉) | |||
| Operating Humidity | 10~90%RH non-condensing, up to 30℃(86℉) | |||
| Storage Temperature | -20~60℃ (-4~140℉) | |||
| Dimensions | 156x91.2x40mm | |||
| Power Supply | 1.5V AAA x 2 batteries | |||
| Distance to Spot Ratio | 12:1 | |||
