China Yarn Fiber Testing Digital Tensiometer High Accuracy LTTS with Blue Back Light LCD for sale

Yarn Fiber Testing Digital Tensiometer High Accuracy LTTS with Blue Back Light LCD

Price Negotiable

Price: negotiable

MOQ: 2

Delivery Time: 5-8 working days

Brand: Bestone

Product Description

LTTS Digital Yarn Tension Meter

The LTTS Digital Tension Meter is a precision hand-held device that accurately measures both running and static tensions for a wide variety of process materials including yarns, fibers, wires, and optical fibers.

Key Features

Employs the proven 'three-roller principle' for tension testing
High accuracy and resolution for precise measurements
Clear digital display eliminates guessing and reading errors
Powered by 4xAAA alkaline batteries for portable operation
Four selectable measurement units: N, kg, lb, g
Simultaneous display of Current, Maximum, Peak, and Minimum values
10-minute auto power-off and manual power-off functions
Takes 62 tension measurements per second and displays the average
Data output via USB cable or optional Bluetooth adapter

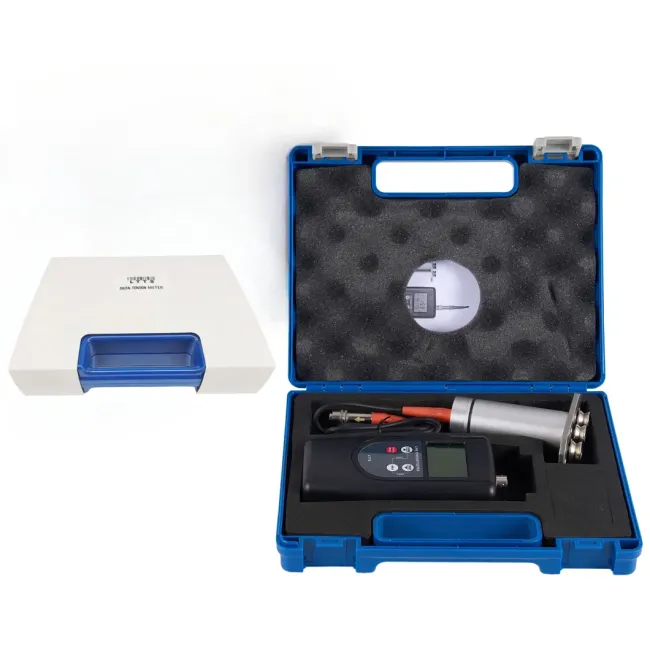

Portable plastic box packaging for safe transportation and protection

Technical Specifications

Units	Kgf, gf, N, Lbf
Measuring Principle	Strain gauge
Measuring Frequency	16 msec (62.5 samples/sec)
Sensing Roller	Deflection of Sensing Roller (max.) 0.2 mm
Overload Capacity	150% of Full Scale
Temperature Coefficient	Zero: less than ±0.3% FS/°C Span: less than ±0.01% FS/°C
Display	Blue Back light LCD
Display Update Rate	0.5, 1.0, 2.0 or 4.0 seconds, selectable
Memory System	Current Value, Max. Value, Peak Value, Min Value
Overrange Indicator	Buzzer Alarm
Power Off	10 Minutes Auto, Manual
Data Output	USB, Bluetooth (Optional)
Roller Material	Stainless Steel (Standard), Plastic (Optional)
Maximum Speed	2000 m/min
Power Supply	4 x 1.5 AAA(UM-4) Battery
Operation Temperature	0 ~ 40 °C
Operation Humidity	< 80%
Weight	400 g
Size	Main Unit: 149 x 70 x 30 mm Sensor: 102 x 81 x 34 mm

Model Specifications

Model	LTTS-200	LTTS-500	LTTS-1K	LTTS-2K	LTTS-5K	LTTS-10K	LTTS-20K	LTTS-50K
Tension Range	0-0.2kgf 0-200gf 0-1.96N 0-0.44Lbf	0-0.5kgf 0-500gf 0-4.9N 0-1.1Lbf	0-1.0kgf 0-1000gf 0-9.8N 0-2.2Lbf	0-2.0kgf 0-2000gf 0-19.6N 0-4.4Lbf	0-5.0kgf 0-5000gf 0-49N 0-11Lbf	0-10.0kgf 0-98N 0-22Lbf	0-20.0kgf 0-196N 0-44Lbf	0-50.0kgf 0-490N 0-110Lbf
Resolution	0.001kgf 1gf 0.001N 0.001Lbf	0.001kgf 1gf 0.001N 0.001Lbf	0.001kgf 1gf 0.001N 0.001Lbf	0.001kgf 1gf 0.01N 0.001Lbf	0.01kgf 1gf 0.01N 0.01Lbf	0.01kgf 0.01N 0.1Lbf	0.01kgf 0.01N 0.1Lbf	0.01kgf 0.01N 0.1Lbf
Accuracy	±1.0% or better				±1.5% or better
Gear spacing	52mm				105mm		210mm
