FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
Price:
negotiable
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description

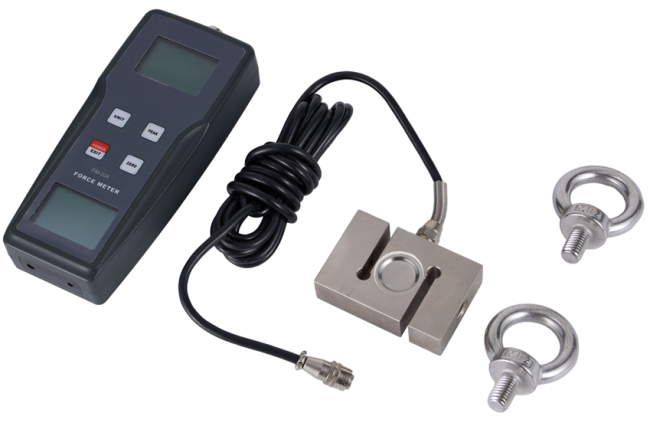

Digital Force Gauge FM-204-200K, FM-204-500K, FM-204-1000K
The digital force gauge is a simple and convenient functional instrument designed for high-accuracy push and pull force testing. It is widely used across multiple industries including electronics, building hardware, textiles, auto parts, ignition devices, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemicals, power machinery, and scientific research institutions.
Key Features
- High accuracy and resolution for precise measurements
- Digital display eliminates guessing and reading errors
- Three measurement units available: N, kg, lb with easy conversion
- Peak value hold function for maximum force recording
- 10-minute auto power off with manual power off option
- Dual power options: alkaline batteries or 5V DC power
Technical Specifications
| Model | FM-204-200K | FM-204-500K | FM-204-1000K |
|---|---|---|---|
| Force Range | ±200kgf / ±1960N / ±440Lbf | ±500kgf / ±4900N / ±1100Lbf | ±100kgf / ±9800N / ±2200Lbf |
| Resolution | 0.01kgf (<100kgf), 0.1kgf (≥100kgf) 0.1N (<1000N), 1N (≥1000N) 0.1Lbf |
0.01kgf (<100kgf), 0.1kgf (≥100kgf) 0.1N (<1000N), 1N (≥1000N) 0.1Lbf (<1000Lbf), 1Lbf (≥1000Lbf) |
0.01kgf (<100kgf), 0.1kgf (≥100kgf) 0.1N (<1000N), 1N (≥1000N) 0.1Lbf (<1000Lbf), 1Lbf (≥1000Lbf) |
| Accuracy | ±0.5%FS ± 1 Digit | ||
| Measurement Units | kgf, N, Lbf | ||
| Measurement States | Peak Value, Real Time Measurement | ||
| Display | 2 Reversed 4 Digit LCD | ||
| Power Management | 10 Minutes Auto Power Off, Manual Power Off | ||
| Backlight | Blue Backlight | ||
| Safe Load | 150%FS (Buzzer Alarm Over 110%FS) | ||
| Power Supply | 2x1.5 AA(UM-3) Battery or 5VDC Power | ||
| Operating Conditions | Temperature: 0°C~40°C, Humidity: <80% | ||
| Environment | No Vibration Source or Corrosive Medium | ||
| Weight | 1165g | ||
| Case Size | 175mm x 80mm x 36mm | ||
| Sensor Size | 181mm x 54mm x 30mm | ||
Included Accessories
| Standard Accessories | Digital Force Gauge |
| Sensor (M12 Screw Hole) | |
| 2 Suspension Links | |
| Manual | |
| Carrying Case | |
| Optional Accessories | Power Adapter |
