BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces
Price:
negotiable
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description
Infrared Belt Tension Tester BTT-2880R8
Product Features
- Laser sensor technology for direct measurement, more convenient than mechanical sensors
- Compact split sensor design ideal for measuring in narrow spaces
- Dual sensor options: integrated sensor and split sensor
- Display readings in metric or imperial units
- Automatic power off function for energy efficiency
Measurement Principle
This tension tester measures the natural vibration frequency of belts through laser emission and reception technology. The system calculates belt tension values by combining input belt mass and free belt length parameters.
Technical Specifications
| Measurement Range | 10Hz~800Hz |
| Input Range | Free Belt Length Max 99.99m | Belt Mass Max 9.999kg/m |
| Digital Sampling Error | <1% |
| Display Error | ±1Hz |
| Total Error | <5% |
| Operating Temperature Range | +10°C~50°C |
| Transportation Temperature Range | -5°C~70°C |
| Units of Measurement | Metric: m, kg/m, N | Imperial: Inch, lbs/foot, lbf |
| Optical Path Measurement Distance | 3mm~20mm |
| Depth of Split Sensor | Approximately 66mm |

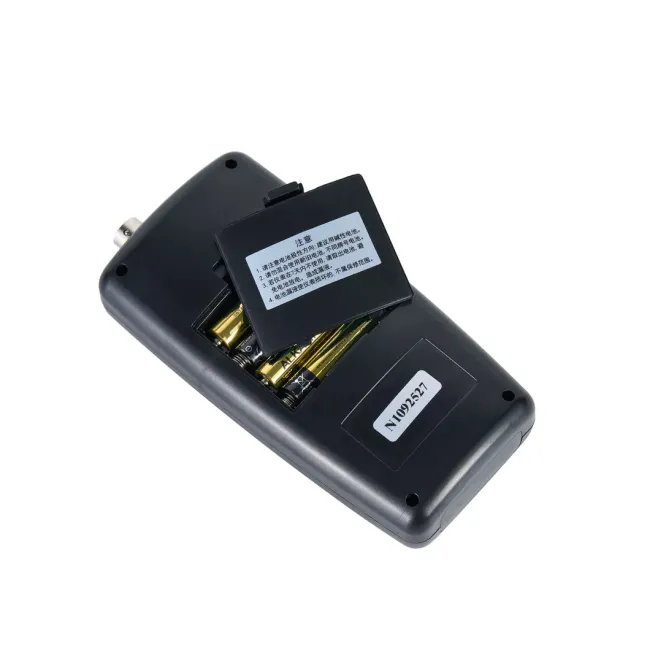

| Power Supply | 4x1.5V AAA (UM-4) Battery |
| Dimensions | Main Unit: 178mm x 72mm x 34mm | Sensor: 124mm x 21mm x 12mm |
| Weight | 180g (Not Including Battery) |
Standard Accessories
- Main Unit
- Split Sensor
- Carrying Case (B04)
- Operation Manual
Product Images
