FM-204DJ Soil Load Penetrometer with 0kg-100kg Measuring Range and 0cm-30cm Test Depth for Highway and Railway Applications
Price:
negotiable
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description
Soil Load Penetrometer / Ground Bearing Capacity Detector FM-204DJ
Product Overview
The FM-204DJ Universal Penetrometer is an advanced geotechnical testing instrument designed for rapid assessment of soil properties and ground bearing capacity. Based on comprehensive geotechnical research, this device establishes relationships between soil penetration resistance, dry density, water content, and compactness through extensive parallel testing.
Key Applications
This versatile instrument is widely used in industrial and civil construction, highway and railway projects, bridge construction, municipal drainage systems, oil pipelines, water conservancy projects, dam and dike construction, irrigation canals, reservoir development, and airport runway engineering.
Product Features
- Radiation-free and environmentally safe with no nuclear contamination
- Cost-effective solution with compact, portable design for field use
- High testing efficiency - complete test cycle in 15-20 minutes
- Quick determination of dry density and compaction coefficient through penetration resistance measurement
Technical Specifications
| Measuring Range | 0kg-100kg (0N-1000N) |
| Test Depth | 0cm-30cm |
| Material Tested | All types of backfill soil, clay, sand, and mixed soil after rolling |
| Application Environment | Highway, railway, reservoir, dike, dam, and civil building projects |
| Test Results | Filling resistance, relative density, compaction coefficient, and foundation bearing capacity |
| Power Supply | 2 AA batteries (6V DC matching) |
| Weight (excluding battery) | Instrument: 415g, Handle: 295g, Probe Rod: 380g |
| Test Accuracy | ≤ 0.25% |
| Shutdown Mode | Automatic close or manual shutdown after 10 minutes |
Standard Accessories
| Standard Accessories | Instrument x 1pc, Measurement bracket x 1pc, Screws (4pcs), User manual x 1pc, Probe rods: φ7mm*240mm x 1pc, φ10mm*120mm x 1pc, and φ10mm*320mm x1pc, corresponding adapter x 1pc,Handle x 1pc, Carrying case x 1pc |
| Optional Accessories | Power adapter x 1pc |

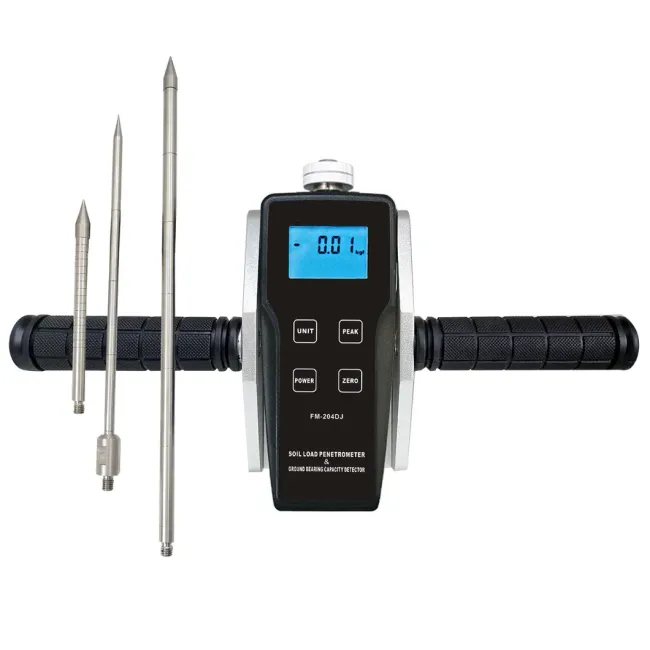

Product Image
