ES-2100E/ES-2100L Elevator Speedometer Contact Tachometer with 0.1~2,000.0m/Min Measurement Range ±1 Count Accuracy and Memory Function for 20 Sets
Price:
US$215 to US$245
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description
Contact Linear Speed Tachometer Elevator Speedometer ES-2100E/ES-2100L
Product Overview
This compact and lightweight handheld speedometer is specifically designed for adjustment, maintenance, and inspection of elevators. Featuring dual display units, it enables simultaneous speed measurement at two different timing intervals for comprehensive analysis.
Key Features
- Memory function stores and recalls up to 20 sets of measurement results including CH1 Value, CH2 Value, and Maximum Value
- Customizable memory capacity available for larger data storage requirements
- Maximum hold function for capturing peak values
- Averaging function with customizable averaging cycles up to 200 times
- Fast 10 ms measurement interval for precise readings
- Low battery indicator for power management
- Distance measurement capability
- Optional Bluetooth printer for direct data printing
- Computer connectivity via optional USB Cable or Bluetooth Adapter for data transfer
Technical Specifications
| Specification | ES-2100E | ES-2100L |
|---|---|---|
| Measurement Method | Contact method | |
| Measurement Range | Speed: 0.1~2,000.0 m/min Rotational Speed: 1~20,000 r/min Distance: 0~999 mm |
|
| Measurement Accuracy | ±1 count | |
| Measurement Time | 10 ms | |
| Measurement Unit | m/min, r/min, mm | |
| Auto Power-off | 180 seconds after last operation | |
| Measurement Value Hold | CH1 Value, CH2 Value, MAX Value | |
| Averaging Function | 1 to 200 times | |
| Memory Function | 20 sets storage (expandable) | |
| Number of Pulses | 400 pulses/rotation, slit reflection method | |
| Light Source | Infrared LED | |
| Light-receiving Element | Photo diode | |
| Bearing Life | 2×10⁷ r/min×h (maximum load within specification) | |
| Display Unit | 5-digit backlight LCD (upper and lower display) | |
| Power Supply | 2 × 3.7V 14500 lithium-ion battery | |
| Operating Temperature | 0~45°C | |
| Dimensions | 211 × 80 × 36 mm | |
| Weight (Including batteries) | 270 g | |

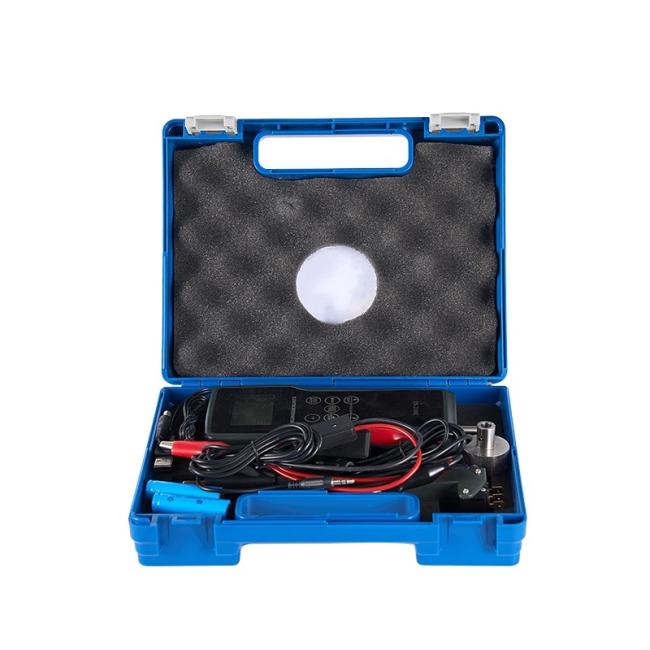

| Standard Accessories | Main Unit, Circumferential Ring, Screwdriver, 3.7V 14500 Lithium-Ion Battery × 2, Power Adapter, External Hold Signal Cable × 2, Instruction Manual, Carrying Case | Main Unit, Circumferential Ring, Screwdriver, 3.7V 14500 Lithium-Ion Battery × 2, Power Adapter, Rotating Contact Tip, Instruction Manual, Carrying Case |
Note: Measurement is possible for up to 5,000 mm. Measurement values of 999 mm or larger cannot be guaranteed.
Optional Accessories
Lengthening Rod for Rotating Contact Tip, Trigger Unit, Bluetooth Printer, USB Cable & Software, Bluetooth Adapter & Software
