Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Price:
US$975
MOQ:
1
Delivery Time:
3-5 working days
Brand:
Bestone
Product Description

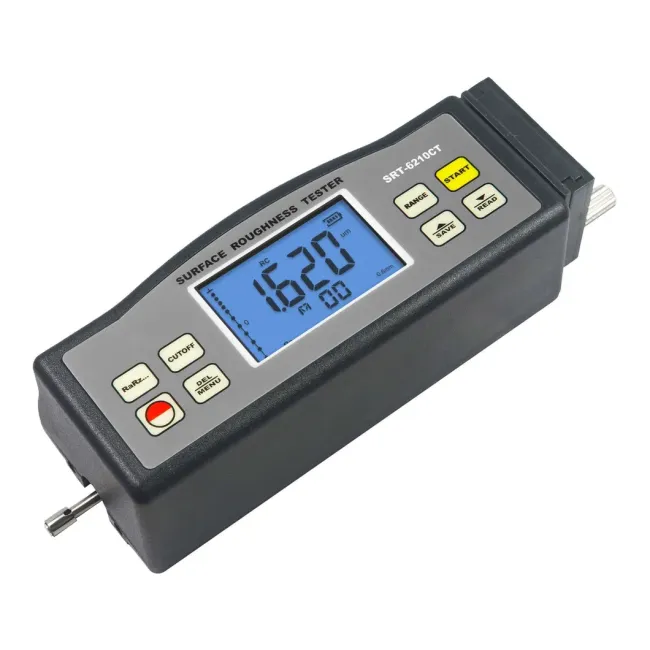

Concrete Surface Texture Tester SRT-6210CT
Product Features
- Compatible with four international standards: ISO, DIN, ANSI, and JIS
- Multiple parameter measurement: Ra, Rz, Rq, Rt
- Highly sophisticated inductance sensor for precise readings
- Four wave filtering methods: RC, PC-RC, GAUSS, and D-P
- Built-in lithium-ion rechargeable battery with high-capacity control circuit
- Compact, lightweight design for easy portability and operation
- Manual or automatic shutdown functionality
- Stores 7 groups of measurement results and conditions for later use or PC download
- Metric/Imperial unit conversion capability
- USB/RS-232 data output for PC connectivity
- Optional Bluetooth data output available
Measurement Principle
When measuring surface roughness, the sensor is placed on the surface and uniformly slides along it via the internal driving mechanism. The sharp built-in probe detects surface roughness, causing probe displacement that changes the inductive amount of induction coils. This generates an analog signal proportional to the surface roughness at the output end of the phase-sensitive rectifier. The exclusive DSP processes and calculates the data, then displays the measurement results on the LCD.
Technical Specifications
| Standards | GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1 |
| Parameters | Ra, Rq, Rz, Rt |
| Measuring Range | Ra, Rq: 0.005µm~20.00µm Rz, Rt: 0.020µm~200.0µm |
| Accuracy | ≤±10% |
| Fluctuation of Display Value | ≤6% |
| Resolution | 0.001/0.01/0.1 |
| Sensor Specifications | Radius of Probe Pin: 10µm Material of Probe Pin: Diamond Measurement Force of Probe: 16mN(1.6gf) Probe Angle: 90º Vertical Radius of Guiding Head: 48 mm Maximum Driving Stroke: 17.5mm/0.7inch |
| Cutoff length(l) | 0.25mm, 0.8mm, 2.5mm |
| Driving Speed | Sampling: - Length=0.25mm, Vt=0.135 mm/s - Length=0.8mm, Vt=0.5mm/s - Length=2.5mm, Vt=1mm/s Returning: Vt=1mm/s |
| Profile Digital Filter | RC, PC-RC, GAUSS, D-P |
| Evaluation Length | 1L~5L Optional |
| Data Memory | 7 Groups |
| Operating Conditions | Temperature: 0ºC~50ºC Humidity: <80%RH |
| Power Supply | Built-in Rechargeable Li-ion Battery |
| Dimensions | 140mm x 52mm x 48mm |
| Weight | 420g |
Standard Accessories
- Main Unit
- Standard Sample Plate SSP-100
- Standard Sensor SSP-100
- Small Screwdriver
- Carrying Case (B09)
- Operation Manual
Optional Accessories
- RS-232C Cable with Software
- Bluetooth Adapter with Software
- Extension Rod SER-150
- Groove Stylus SRP-110
- Curvature Probe SRP-120
- Measurement Stand SRS-1
