This instrument is controlled by intelligent microcontroller chip, with high accuracy and high reliability; it can be used to measure grounding resistance of various power facilities wiring, electrical equipment, lightning protection equipment and other grounding devices, and it can also measure ground voltage. (Note: This instrument is not suitable for harsh outdoor environmental conditions, such as raining, lightning, etc.)

Backlight a battery detection function.

Data holding.

"OL" stands for over range

Double insulation or reinforced insulation safety structure.

When measuring ground resistance, if C or E end of test lead is not in good contact,"...Warning appears on LCD.

It can be used for precise three-wire measurement or simple two-wire measurement.

1.Measurement range and measurement error (under condition of 20℃ + 5℃and≤75%RH)

auxiliary grounding resistance 500Ω;Error + 5% ;Grounding voltage ≤10V AC

2. Application standard:

IEC61010-1 CAT.11 600V Pollution degree 2;
CAT.15000VPollution degree 2;
IEC61326-1(EMC standard);
IEC 60529(IP40)
3. measurement method:
(1)Ground voltage measurement:average response;
(2)Groundresistance measurement: test signal frequencyabout 820Hz,current: 20Ω about 3.2mA.

4. Working environment: temperature: 5°C~ 40°C; relative;
humidity:≤80~RH (no fog)Altitude≤2000 meters.

5. Storage conditions: temperature:-20~60 °C; relative;
humidity:≤70% RH (no fog).
6. Power supply: 9V power supply [1.5V (No. 5 alkaline battery)* 6]

7. Overload protection:Groundresistance:200VAC(10 seconds);
Ground voltage:400VAC(30 seconds).
8. Insulation resistance:The insulation resistance betweenmeasurement circuit and case is not less than 20MΩ.

9. Dimensions:176mm*77mm*110mm.

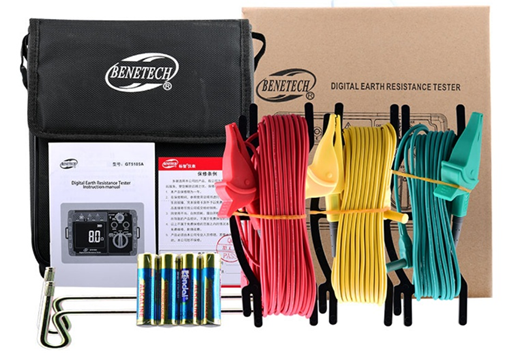

Digital Tester:1pc.

English Instruction Manual:1pc.

1.5V (No. 5 alkaline battery):6pcs (for air shipping, not included).

Soft cloth bag: 1pc.

Gray box: 1pc.

5 meters of green test lead (with alligator clip):1pc.

10 meters of yellow test lead (with alligator clip):1pc.

20 meters of red test lead (with alligator clip):1pc.

Auxiliary ground nail:2pcs.

Strap:1pc.
