Portable Digital Gauss Meter 0~2000mT Measuring Peak Retention GS-100D/DA/DAH/D2 Series
Price:
negotiable
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description

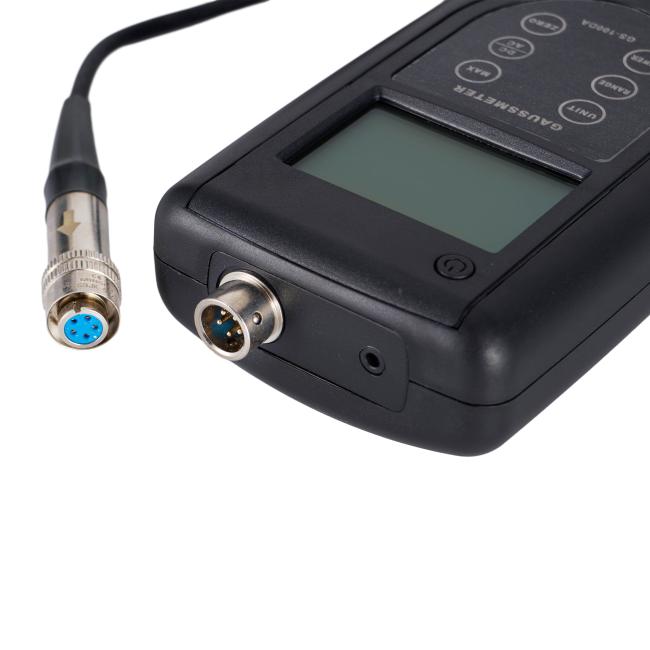

Digital Gauss Meter Models: GS-100D, GS-100DA, GS-100DAH, GS-100D2
Applications
- Magnetic field distribution measurement on permanent magnet material surfaces
- Interstitial magnetic field analysis in magnetic circuit structures
- Magnetic field measurement for electromagnetic devices (iron removers, magnetic separators, magnetic chucks, electromagnets, demagnetization devices)
- Environmental magnetic field assessment (including geomagnetic fields and residual weak magnetic fields)
Key Features
- Portable design with wide measurement range
- Easy operation with clear LCD display
- Measurement/peak retention functionality
- mT/Gs unit conversion capability
- 200mT/2000mT range selection
Operating Principle
The tension sensor operates based on Hall's principle. The circuit utilizes low-drift amplifiers and high-stability power supply, controlled by a single-chip microcomputer, with measured values displayed on a 4½-digit LCD.
Technical Specifications
| Model | GS-100D | GS-100DA | GS-100DAH | GS-100D2 |
|---|---|---|---|---|
| Measuring Range | 0mT~200mT~2000mT | |||
| Frequency Range | N/A | 10Hz~200Hz | 1Hz~400Hz | 10Hz~200Hz |
| Accuracy | DC: 5% (uniform magnetic field) | 0~100mT: 2%, above 100mT: 5% (uniform magnetic field) | DC: 1%/AC: 1%, 1-400Hz (uniform magnetic field) | DC: 5%/AC: 5%, 1-200Hz (uniform magnetic field) |
| Resolution | N/A | DC*1: 0.00~200.00mT (0.01mT) DC*10: 0.0~2000.00mT (0.1mT) AC*1: 0.00~200.00mT (0.01mT) AC*10: 0.0~2000.00mT (0.1mT) |
N/A | N/A |
| Magnetic Field Type | DC magnetic field (static) | DC magnetic field (static) and AC magnetic field (dynamic) | ||
| Functions | Peak retention, Gs/mT unit conversion, DC polarity measurement (N positive, S negative) | |||
| Operating Conditions | 5ºC~40ºC, 20%~80% relative humidity (no condensation) | |||
| Power Supply | 4x1.5V AAA (UM-4) Batteries | |||
| Dimensions | 140mm (L) × 73mm (W) × 30mm (H) | |||
| Weight | 180g | |||
| Display | 4½-digit LCD | |||
| Units | mT/Gs | |||
Standard Accessories
- Main unit (1)
- Hall sensor (1)
- Operating instructions (1 copy)
- Plastic carrying case (B04)
