WTM-1200 Wireless Window Tint Meter High Accuracy ±2% with LED Light Source
Price:
US$171
MOQ:
2
Delivery Time:
3-5 working days
Brand:
Bestone
Product Description

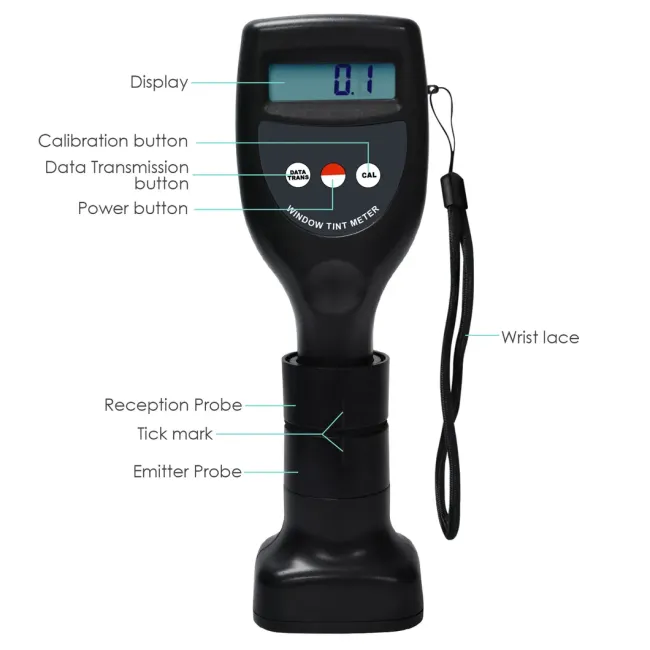

Window Tint Meter (Wireless Type) Model WTM-1200
Applications
This meter is designed to measure light transmittance for various transparent and translucent materials with parallel planes, including automotive manufacturing, aerospace components, glass products, plastic sheets, and similar materials. It can also determine turbidity or clarity in liquid samples such as water and beverages.
Key Features
- Handheld device for measuring window light transmission
- Designed in compliance with GB 2410-80, ASTM D1033-61, JIS k7105-81 standards
- Digital LCD display with wide measurement range and high resolution
- Wireless design for easy operation and portability
- One-key calibration for simplified use
- Compact, lightweight construction for easy carrying
- USB data output for PC connectivity
- Optional Bluetooth data output capability
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | LCD |
| Measurement Range | 0~100% |
| Resolution | 0.1 |
| Accuracy | ±2% |
| Sample Thickness | ≤18 mm / 0.7 inch |
| Light Source | LED |
| Measuring Mode | Single / Continuous |
| Operating Conditions | Temperature: 0~50ºC, Humidity: <90% |
| Power Supply (Main Unit) | 4x1.5V AAA (UM-4) Battery |
| Power Supply (Light Emitter) | 2x1.5V AAA (UM-4) Battery |
| Size (Main Unit) | 141x65x38mm |
| Size (Light Emitter) | 70x62x52mm |
| Weight | 290g (Including Batteries) |
Standard Accessories
Main Unit, Light Emitter, Standard Block, Carrying Case, Operation Manual
Optional Accessories
USB Data Cable with Software, Bluetooth Data Adapter with Software
