Data Record Sound Level Meter GT1355 GT1355A GT1355B with Color Screen Three Color Light Alarm
Price:
negotiable
MOQ:
40
Delivery Time:
5-8 working days
Brand:
Bestone, Benetech
Product Description
Sound Level Meter with Color Screen and Three-Color Light Alarm (GT1355,GT1355A,GT1355B)
This professional Sound Level Meter is designed for noise engineers, quality control, and health prevention applications. It accurately measures environmental noise in factories, offices, traffic areas, residential spaces, and other settings.
Key Features
- Real-time environmental noise measurement
- A/C Frequency weighting selection
- Fast/Slow Time weighting selection
- Three-color light alarm system
- Value display: Maximum/current (GT1355),Max/Min/Current (GT1355A/B)
- Data HOLD function
- Data storage: 31,000 records (GT1355),43,000 records (GT1355A/B)
- Data read options: PC-only (GT1355),device and PC (GT1355A/B)
- Automatic shutdown: 10 minutes (GT1355),customizable duration (GT1355A/B)
- Date/time display: Switchable (GT1355),simultaneous (GT1355A/B)
- USB charging and PC communication for data analysis and printing
- Compliant with IEC PUB 651 TYPE2 and ANSI S1.4 TYPE2 standards
- DC output available on GT1355B model
- VA color screen (GT1355),IPS color screen (GT1355A/B)
Technical Specifications
| Parameter | GT1355 | GT1355A | GT1355B |
|---|---|---|---|
| Calibration sound source | 94dB@1KHz | ||
| Measurement range | 30~130 dB(A), 35~130dB(C) | ||
| Accuracy | ±1.5dB (Reference sound pressure standard,94dB@1KHz) | ||
| Resolution | 0.1dB | ||
| Frequency weighting | A/C | ||
| Frequency response | 31.5Hz~8500Hz | ||
| Time weighting | FAST/SLOW | ||
| Sampling rate | FAST: 8 times/second SLOW: 1 times/second | ||
| Power supply | 3.7V lithium battery /1000mAh | ||
| Data storage | 31,000 | 43,000 | 43,000 |
| LCD | VA color screen | IPS color screen | IPS color screen |
| DC output | No | No | Yes |
| Weight (excluding sponge ball) | 126g | 120g | 114g |
DC Output Specifications (GT1355B Only)
| Parameter | Value |
|---|---|
| DC voltage range | 300mV~1300mV |
| DC voltage error | ±5mV |
| DC impedance | 120R |
| DC and noise relationship | Vout= dB x10 Unit: mV(dB: noise value,Vout: DC output voltage) |
Product Images

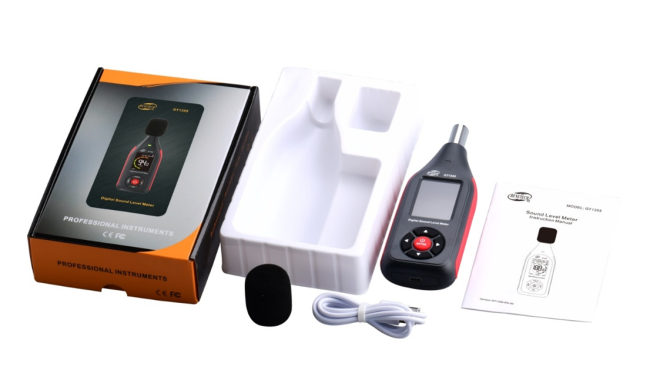

GT1355 Model

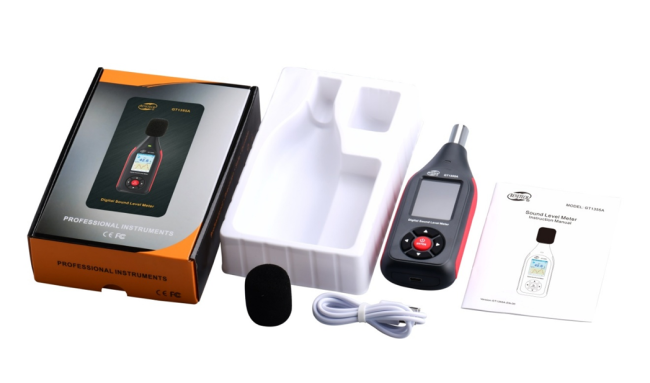

GT1355A Model

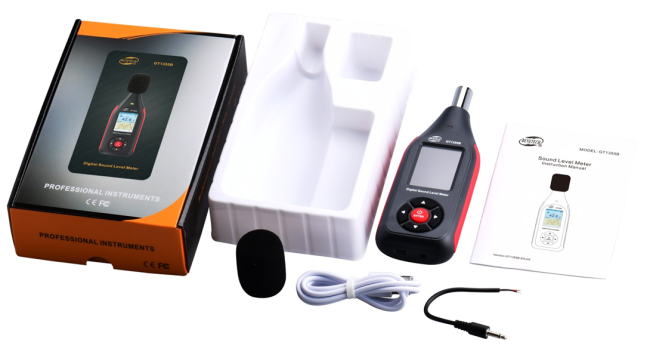

GT1355B Model
Package Contents
- Digital Sound Level Meter: 1pc
- English Instruction Manual: 1pc
- 3.7V lithium battery /1000mAh (built-in)
- Sponge ball: 1pc
- USB (type-C) cable: 1pc
- DC output wire (GT1355B only)
- Paper color box: 1pc
