TS7700 Portable Colorimeter with D/8 Geometric Optical Illumination 400-700nm Full Spectrum
Professional portable color measurement instrument for textile, food, paint, automotive, and manufacturing industries with advanced spectral analysis capabilities.
The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.
Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.
Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.
- D/8 geometric optical structure compliant with CIE No.15, GB/T 3978, ISO7724/1, ASTM E1164 standards
- High-life combined LED light source with UV/excluding UV options
- Switchable 8mm & 4mm measuring apertures for versatile sample measurement
- Dual optical path system measuring SCI and SCE spectra simultaneously
- Precise spectral data for color matching and accurate color transmission
- Advanced hardware: 3.5-inch TFT color screen, capacitive touch, 1000-line grating
- USB/Bluetooth dual communication for wider adaptability
- Superior dirt-resistant calibration board
- 30,000+ test data storage capacity
- Multiple observer angles, light sources, and color systems
- Camera positioning and stabilizer cross measurement

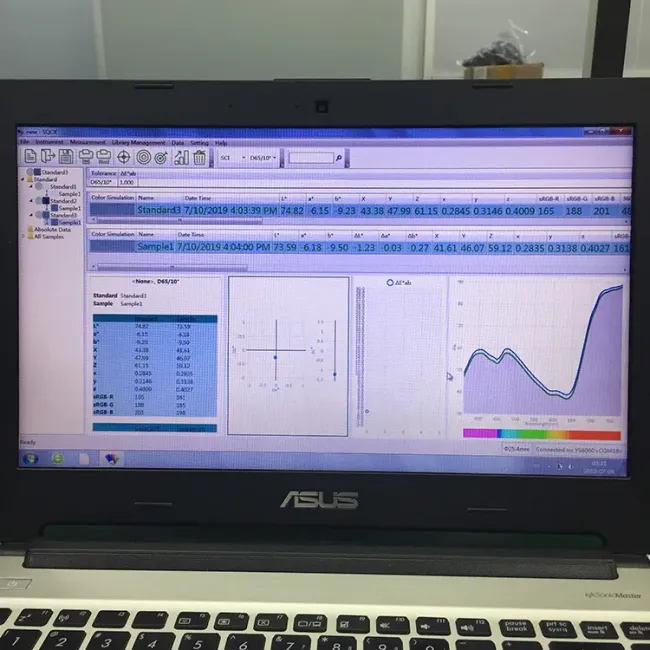

- Powerful PC software for extended functionality
| Model | TS7700 |
|---|---|
| Optical Geometry | Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle) SCI/SCE with UV/excluded UV light source |
| Integrating Sphere | Φ40mm |
| Light Source | Combined full spectrum LED with UV option |
| Wavelength Range | 400~700nm |
| Measuring Aperture | MAV: Φ8mm/Φ10mm; SAV: Φ4mm/Φ5mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99, Munsell(C/2) |
| Measurement Time | Approx 1.5s (SCI & SCE: approx 3.2s) |
| Dimensions | 129×76×217mm |
| Weight | Approx 600g |
| Battery | 3.7V, 5000mAh Li-ion (6000 measurements within 8 hours) |
High-resolution 3.5-inch capacitive touch display with comprehensive colorimetric data presentation
Dual-row 40-group silicon photodiode array for enhanced color sensitivity
Long-life LED & UV LED lamps for stable, accurate light source generation
UV light source capability for precise fluorescent color measurement
Pass/Fail test results with color deviation direction indicators
Simultaneous SCI+SCE measurement with single button press
Power Adapter, User Guide, PC Software, USB Cable, White and Black Calibration Cavity, Protective Cover, Wrist Strap, 8mm Flat Aperture, 8mm Tip Aperture, 4mm Flat Aperture, 4mm Tip Aperture
Micro Printer, Powder Test Box
