TM-204-1N.m 5N.m 20N.m High accuracy digital torque tester with peak value hold function and multi-functional hand-held torsion meter
The digital display hand-held torque meter is a compact, versatile, and high-precision torque testing instrument. Widely used across multiple industries including electronic appliances, building hardware, light industry textiles, automotive components, ignition devices, fire fighting equipment, writing instruments, lock manufacturing, fishing tackle, chemical processing, power machinery, and scientific research institutions.
- High accuracy and resolution for precise measurements
- Multiple measurement units with automatic conversion capability
- Peak value hold function for maximum torque recording
- Dual power options: alkaline battery or external DC power supply
| Parameter | TM-204-1N.m | TM-204-5N.m | TM-204-20N.m |
|---|---|---|---|
| Force Range | ±0.1kgf.m ±100gf.m ±1N.m ±0.2Lbf.m |
±0.5kgf.m ±500gf.m ±5N.m ±1.1Lbf.m |
±2kgf.m ±2000gf.m ±20N.m ±4.4Lbf.m |
| Resolution | 0.001kgf.m 1gf.m 0.01N.m 0.001Lbf.m |
0.001kgf.m 1gf.m 0.01N.m 0.001Lbf.m |
0.001kgf.m 1gf.m 0.01N.m 0.001Lbf.m |

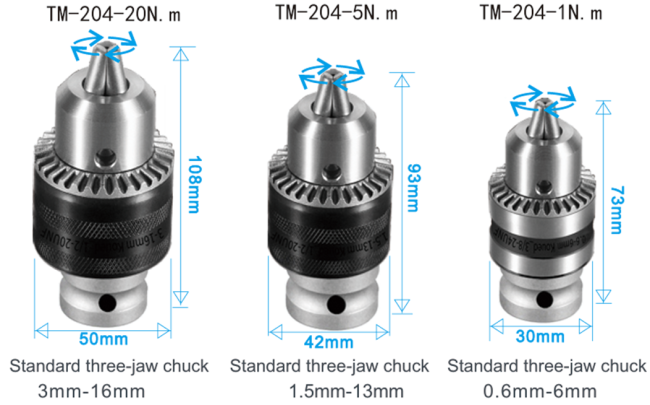

| Standard Chuck Size | 0.6mm-6mm | 1.5mm-13mm | 3mm-16mm |
Accuracy: ±0.5%FS ±1 Digit
Measurement Units: kgf, gf, N, Lbf
Measurement Modes: Peak Value Measurement, Real Time Measurement
Display: Four large LCD, large screen display
Power Management: 10 Minutes Auto Power Off, Manual Power Off
Backlight: Blue Backlight
Safe Load: 150%FS (Buzzer Alarm Over 110%FS)
Power Supply: 2x1.5 AA(UM-3) Battery or 5V DC Power Supply
Operating Conditions: Temperature: 0~40°C, Humidity: <80%
Environmental Requirements: No vibration source or corrosive medium around
Dimensions: Main Unit: 211x80x36mm
Weight: 390g

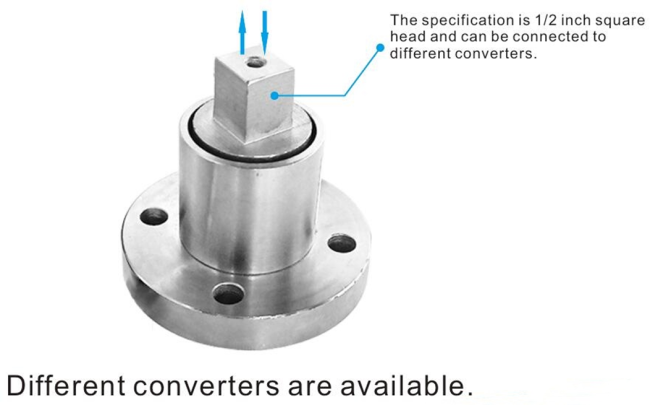

Multi-purpose development:
