High Accuracy Welding Pressure Meter WPM-204-10KG WPM-204-100KG WPM-204-1000KG for Material Testing
Price:
negotiable
MOQ:
2
Delivery Time:
5-8 working days
Brand:
Bestone
Product Description
Welding Pressure Meter WPM-204-10KG, WPM-204-100KG, WPM-204-1000KG
Applications
Our advanced microelectronic digital display instrument features dynamometer (pressure) and weight transducer (strain gauge) inputs. Designed for modern static and dynamic measurement systems including material test machines, printing machines, test benches, and automated equipment. With measurement precision up to ≤ ±0.02%, this instrument is ideal for quality testing systems, first and second batch sample testing, and general calibration procedures. The measurement system incorporates modular components for long-term stability, thermal drift transmission frequency feeders for reduced system complexity, and a 16-bit A/D converter providing 65,000 internal divisions.
Key Features
- High accuracy and resolution for precise measurements
- Digital display eliminates guessing and reading errors
- Three selectable measurement units: N, kg, lb
- Peak value hold function for maximum reading capture
- 10-minute auto power-off with manual override
- Dual power options: alkaline batteries or 5V DC power supply
Technical Specifications
| Model | WPM-204-10KG | WPM-204-100KG | WPM-204-1000KG |
|---|---|---|---|
| Force Range | ±10kgf ±98N ±22Lbf |
±100kgf ±980N ±220Lbf |
±1000kgf ±9800N ±2200Lbf |
| Resolution | 0.001kgf 0.001N 0.001Lbf |
0.001kgf 0.01N 0.01Lbf |
0.01kgf 0.1N 0.1Lbf |
| Accuracy | ±0.2%FS ±1 Digit | ||
| Measurement Units | kgf, N, Lbf | ||
| Measurement States | Peak Value Measurement, Real Time Measurement | ||
| Display | LCD with Blue Backlight | ||
| Power Management | 10 Minutes Auto Power Off, Manual Power Off | ||
| Safe Load | 150%FS (Buzzer Alarm Over 110%FS) | ||
| Power Supply | 2x1.5 AA(UM-3) Battery or 6V DC Power Supply | ||
| Operating Conditions | Temperature: 0~40°C Humidity: <80% No Vibration Source or Corrosive Medium |
||
| Dimensions | Host: 175x80x36mm Sensor: 268mm x φ44.6mm |
||

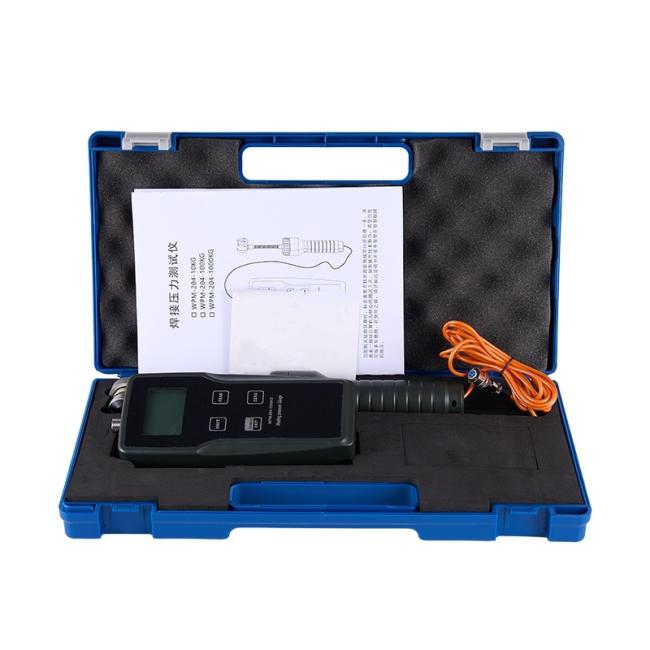

Package Contents
Standard Accessories: Host unit, User manual, Carrying case
Optional Accessories: Power adapter
![]()
Optional Accessories: Power adapter
