GT260,GT260 PRO Digital Coating Thickness Gauge with 0~3000μm Range Bluetooth & Mobile APP and Voice Broadcast
Price:
EXW US$40~US$45
MOQ:
20
Delivery Time:
3-5 working days
Brand:
Benetech, Bestone
Product Description

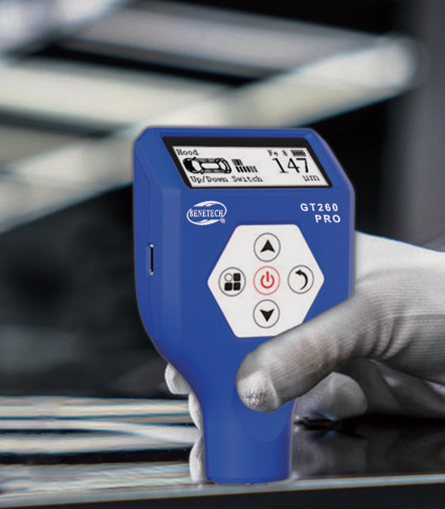

Digital Coating Thickness Gauge Model: GT260, GT260 Pro
Applications
This product is a portable coating thickness gauge with a color screen and high-definition display. It can quickly, non-destructively, and accurately measure the thickness of non-magnetic coatings on magnetic metal substrates and non-metal coatings on non-magnetic metal substrates. It can automatically identify magnetic and non-magnetic metal substrates and is widely used in manufacturing, metal processing, chemical industries, and quality inspection fields.
Key Features
- Thickness measurement of non-magnetic coating on the surface of magnetic metal substrate
- Thickness measurement of the non-metallic coating on the surface of the non-magnetic metal substrate
- Support Fe/nFe/Fe+Zn measurement
- Automatic identification function: Zinc coating on magnetic metals & putty primer on ferromagnetic substrates
- Max/Min/Average data statistics
- Multiple calibration: Basic/Zero/Factory calibration
- Measuring modes: Standard mode and car mode
- Single & continuous measurement optional
- μm/mil unit switchable
- High/low value alarm reminder
- Voice broadcast for measuring data
- Data storage & export; Support PDF/HTML/CSV formats
- Backlight; low battery prompt, auto power-off
- Bluetooth and mobile phone APP communication (only GT260 Pro)
Technical Specifications
| Parameter | GT260 | GT260 Pro |
|---|---|---|
| Measurement range | 0~3000μm/0-118mil | |
| Resolution | 0.1μm (<100μm); 1μm(≥100μm); <5mil:0.01mil; 5mil<x<100mil:0.1mil; >100mil:1mil | |
| Measurement error | ≤150μm:±5μm; 150μm<x<1500μm: ±(3%H+1μm); >1500μm: ±(5%H+1μm) | |
| Minimum diameter of magnetic metal substrate | 12mm | |
| Minimum thickness of magnetic metal substrate | 0.5mm | |
| Minimum radius of curvature of magnetic convex substrate | 2mm | |
| Minimum radius of curvature of magnetic concave substrate | 11mm | |
| Minimum diameter of non-magnetic metal substrate | 50mm | |
| Minimum thickness of non-magnetic metal substrate | 0.5mm | |
| Power supply | 600mA 3.7V Lithium Battery | |
| Data storage | Standard mode: 60 records; Car mode: 999 vehicles | |
| Operating temperature | -20~+40℃ | |
| Operating humidity | 10~95%RH | |
| Product dimensions | 107*62*26mm | |
| Weight | 83.5g | |

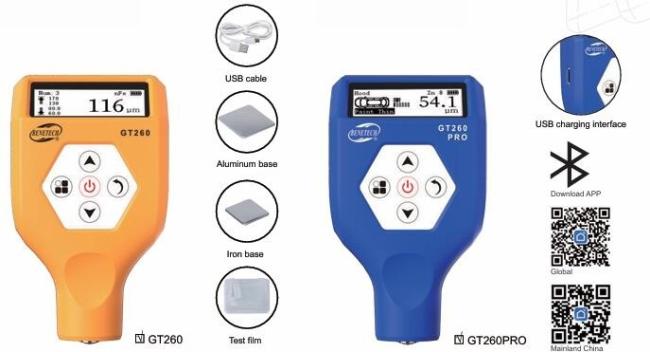

Package Contents
- Coating Thickness Gauge (with built-in 2 in 1 split NFE and FE probe): 1pc
- Aluminum substrate: 1pc
- Iron substrate: 1pc
- Standard films: 6 pieces
- 600mA 3.7V Lithium Battery (built-in)
- English Instruction Manual: 1pc
- Paper color box: 1pc
- Cloth bag: 1pc
- USB cable: 1pc
