ZEROONE-Control Factory P2405D DM542 4.2A DC 20V-80V 42 57 Nema23 Stepper Motor Driver For CNC engraving machines

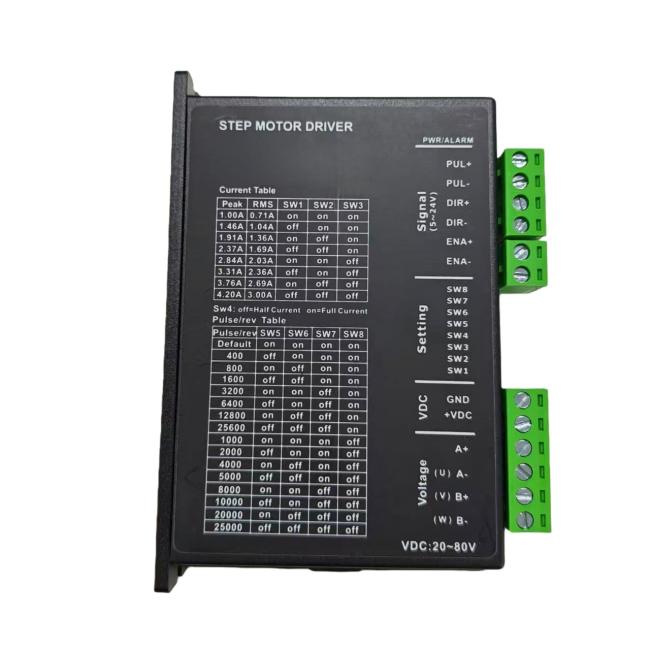

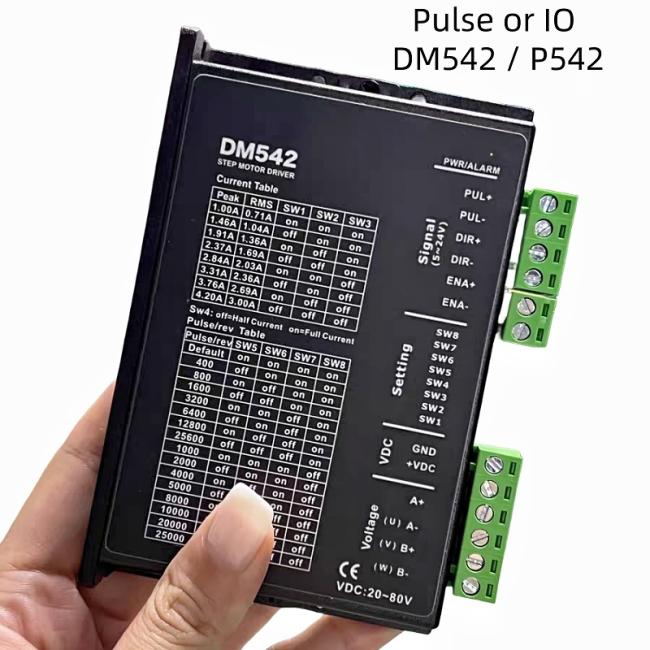

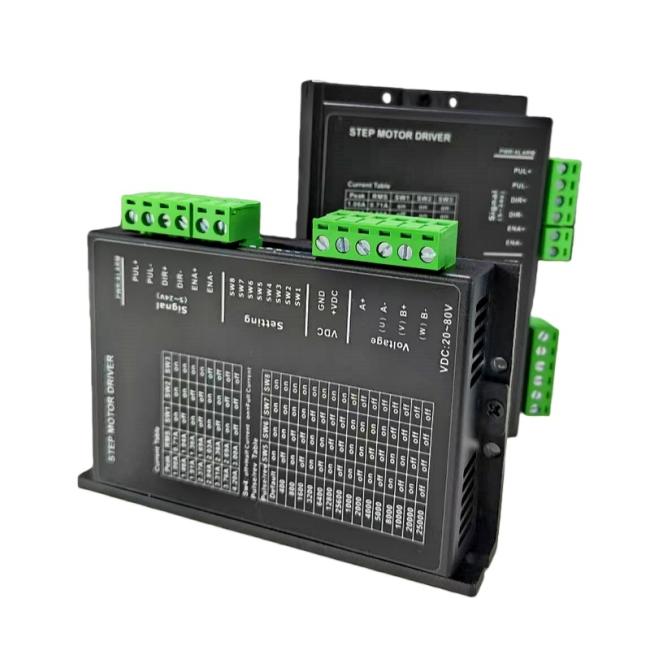

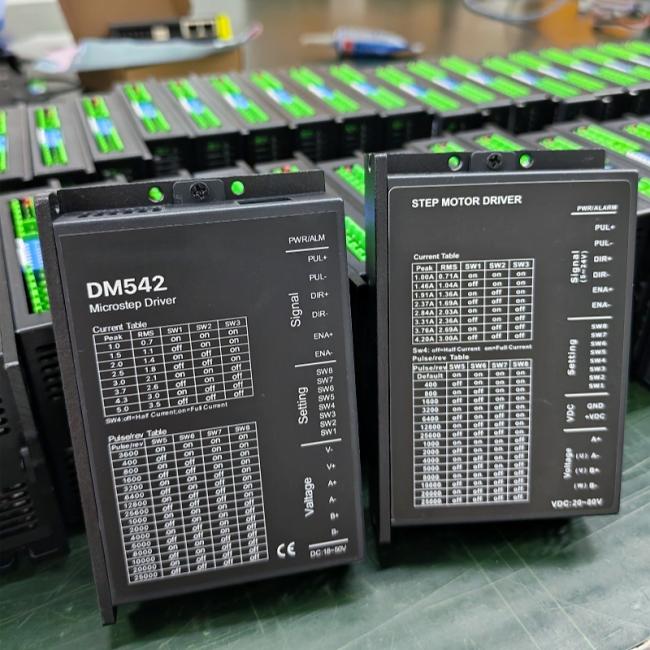

P2405D/ DM542 Two-Phase Digital Stepper Driver

I. Core Electrical Parameters

- Drive Type: Two-phase digital DSP microstepping driver

- Power Supply: DC 20～80V (36V recommended)

- Peak Output Current: 1.0～4.2A (8 selectable DIP switch settings)

- Compatible Motors: NEMA17(42), NEMA23(57) two-phase hybrid stepper motors (4/6/8 wires)

- Max Pulse Frequency: 200 KHz

- Microstep Resolution: 15 selectable levels (400～25600 steps/rev)

- Signals: Opto-isolated; supports single-ended/differential, PUL/DIR, dual-pulse modes


II. Main Features

1. DSP digital vector control for low noise & low vibration
Sine-wave current output delivers smoother operation compared with TB6600 analog drivers, preventing step loss at high speeds; premium versions feature auto-tuning to match motors automatically.

2. Automatic standby current reduction for energy saving
Holding current is automatically reduced approx. 0.4s after motor stop, greatly lowering motor heating and temperature rise during long-hour operation.

3. Multiple microstep resolutions available
Max. 256 microsteps for high positioning accuracy and smooth low-speed movement without jitter.

4. Comprehensive protection functions
Over-current, over-voltage, under-voltage, winding short-circuit and phase-loss protection; ALARM fault output signal.

5. Strong anti-interference performance
Opto-isolated inputs for harsh industrial electromagnetic environments; compact size for easy mounting.

6. Cost-effective
Industrial-grade performance at moderate cost, widely adopted in mass automation equipment.

⚠️ Limitation: Open-loop control without encoder; not recommended for heavy-load, high-speed continuous duty cycles (closed-loop drivers such as DM542S are recommended as upgrade)

III. Typical Applications

1. CNC Machining
Small engraving machines, CNC wood routers, plasma cutters, CNC punching machines

2. Laser Equipment
Laser marking machines, laser engravers, small-format fiber laser cutters

3. Packaging & Printing
Labelers, inkjet printers, die-cutters, computerized embroidery machines

4. Automation Assembly Lines
Small linear modules, XY stages, dispensing machines, screw tightening machines, automatic inspection stations

5. Medical & Laboratory Equipment
Peristaltic pumps, precision linear stages, feeding mechanisms for biochemical analyzers

6. Others
Medium & small 3D printers, camera sliders, fabric cutting machines, small winding machines

IV. Selection Notes

- Motor rated current must be ≤4.2A for compatibility; verify current rating for long-body high-torque NEMA23 motors

- Higher supply voltage improves high-speed torque, but must not exceed the maximum rating of 50V for the driver

- Closed-loop stepper drivers (e.g. DM542S closed-loop version) are recommended for continuous high-speed and high-precision applications.
