SGS Induction Forging Equipment 250KW 400KW Induction Heating Furnace For Forging
400KW Induction Forging Furnace, steel casting machine, Rod hot forging equipment

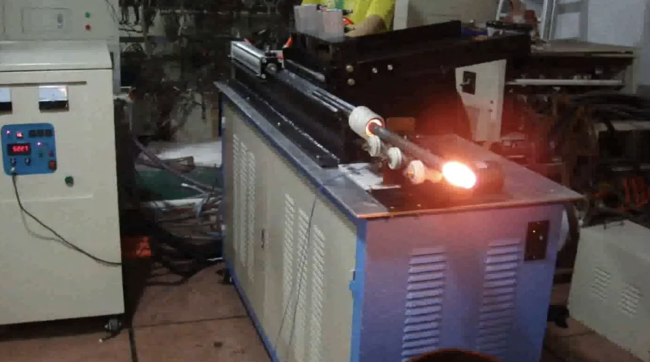

Features of medium frequency induction heating machine: the equipment includes medium frequency induction heating machine, induction coil, feeding machine, infrared temperature detector and some other parts.
Model: GYM-400
Max output power: 400KW
Heating capability for common materials:recommending for diameter 80mm or more big steel/copper bar heating
|
Specification |
Max output power |
Heating capability for common materials |
|
IF-25 IF-40 |
25KW 40KW |
Recommending for diameter 15-30mm steel bar heating |
|
IF-60 IF-100 |
60KW 100KW |
Recommending for diameter 15-50mm steel bar heating |
|
IF-160 IF-200 |
160KW 200KW |
Recommending for diameter 15-80mm steel bar heating |
|
IF-250/400 |
250KW/400KW |
Recommending for bigger than 80mm steel bar heating |
Major features
1. Wide frequency range: 1KHZ-20KHZ, according the diameter of work piece to choose suitable frequency
2. When heating a whole piece of material, the length of induction coil can be made from 500mm-1m, when heating multiple pieces, better penetrating results can be guaranteed
3. It adopts continuously heating process when the temperature of work piece reach 1100℃
4. When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.
5. Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenances, and can save power by approximately 15-20%
