Universal Tire Pressure Sensor Dual Frequency 315Mhz 433Mhz TPMS Sensor For Car

Price Negotiable
Price: USD6.3-USD7.8
MOQ: 100pcs
Delivery Time: 5-8 working days
Brand: JAVAS
Product Description

 Universal Dual Frequency 315Mhz And 433Mhz Tpms Tyre Pressure Monitoring System For Car


TPMS is an electronic system in modern vehicles that tracks the air pressure in your tires and warns you via a dashboard light.
It uses sensors inside the tires, directly reporting pressure and temperature. And also requires proper inflation (using the door
jamb sticker PSI) and sometimes recalibration after service to function correctly.
It senses real-time air pressure (and sometimes temperature) in each tire. And Illuminates a dashboard light if pressure drops
too low (typically 25% below recommended)

This car tyre universal tpms sensor is a blank sensors that needs to be programmed protocols with progammer first. So that it
can works for 98% carprotocols from North America, Europe and Asia. It used to replace the original OE sensors when OE
sensor damaged or battery dead. The original sensor battery works at most 5-6 years. When battery dead, customers needs to
replace it. Usually original sensor is with high price and need to wait for a long time.

What's more, for distributors, they usually needs to buy many stocks for different models for original OE sensors. But with this
universal programmable sensor. He just need to prepare one sensor for most models that he may need. It's make the stock
management much easy and save more cost.

Model: TS-D81

  • Capable of automatically creating, copy ID and manual input sensor ID
  • Cover over 98% car models worldwide, including Aisa, Europe and North America
  • Unlimited programming supported.
  • 315Mhz and 433Mhz in one sensor
  • Pressure range:0-8bar
  • Voltage:3.0V
  • Imported IC and domestic IC available
  • Battery life: more than 5 years
  • Warranty:2 years
  • Handheld programmer and mobile phone programmer workable

Product Parameter

Operating temperature -40 ° C~+125 ° C
Relative humidity 45%~95%
Storage temperature range -40 ° C ~+125 ° C
Working temperature -40ºC~105ºC
Pressure range 0-900Kpa
Installation position automobile wheel hub
Quiescent current 0.3μA≤I≤1.0μA
Emission current 1.0mA ≤I≤3.5mA
Operating voltage 2.90V≤U≤3.50V
Emission power 8dBm
Weight 35g
Service life CR2050 more than 3 years
Waterproofing rate IP67
Transmitting power <10dBm
Transmitting frequency 433.92MHz&315MHz
Temperature error 20~70 ° C : ±3 ° C,
-40~-20ºC,70~125ºC :±5ºC
Pressure error 0 ~50ºC :± 0.07bar,
-40~0ºC , 50~85ºC :± 0.1bar

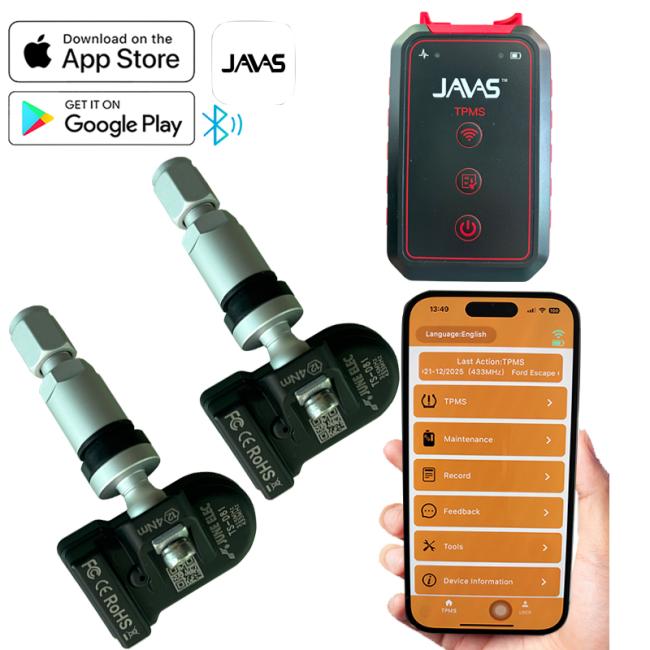

It can be programmed both by handtool and mobile programmer

It can be also programmed by mobile programmer.


FAQ

Q1: What is the frequency and application?
A1: Sensor frequency is 315Mhz/433Mhz. It applied for Asia, Europe and North America aftermarket OE tpms sensor replacement and winter tires.
Q2: What's your package?
A2: Our standard package is carton for 50pcs and 200pcs.
Q3: What is your MOQ?
A3: 100 pieces for sensors.Sample is available.
Q4: Do you offer OEM and ODM service?
A4: Yes, OEM and ODM service available.
Q5: When is the lead time?
A5:1-10 working days upon your order of products.
Q6: What about quality warranty?
A6:2 years for tpms sensor and 1 year for programming tool.
Q7: What is Price Term?
A7: EXW. FOB Shenzhen, CIF accepted.
Q8: How about Payment Term?
A8: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.
Q9: What about shipment?
A9: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea
Q10: After-sales and Refund Policy?
A10: If there is any fault items, pls kindly send us proof, such as photo or video. We will try our best to solve this online first. If still cannot solve, pls send this back to us for repair. The new one will be send to you after problem confirmed.
