6-18 Tires Automotive Tire Pressure Sensor For Trailer Semi Truck Commercial Vehicles
Price:
USD130-160
MOQ:
100pcs
Delivery Time:
15-25 working days
Brand:
OEM
Product Description

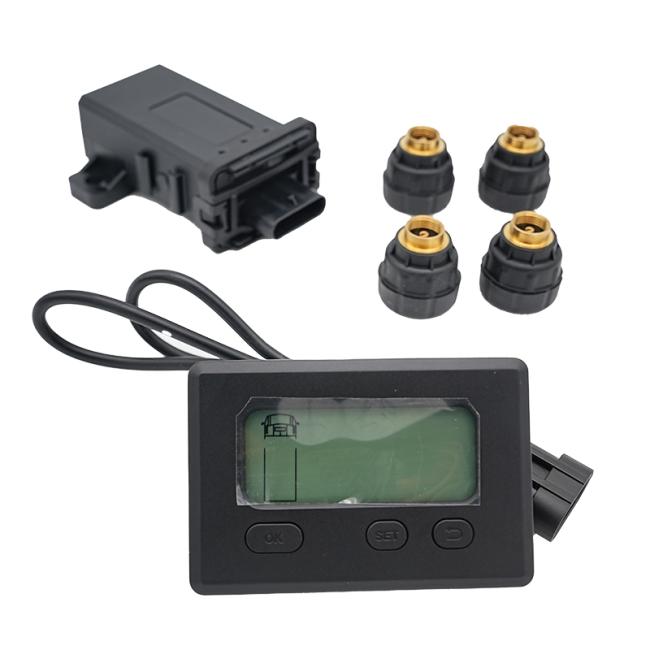

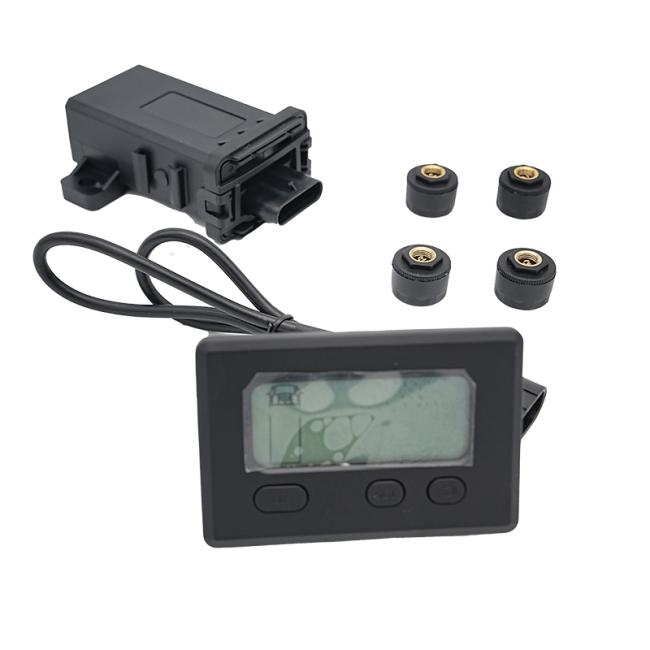

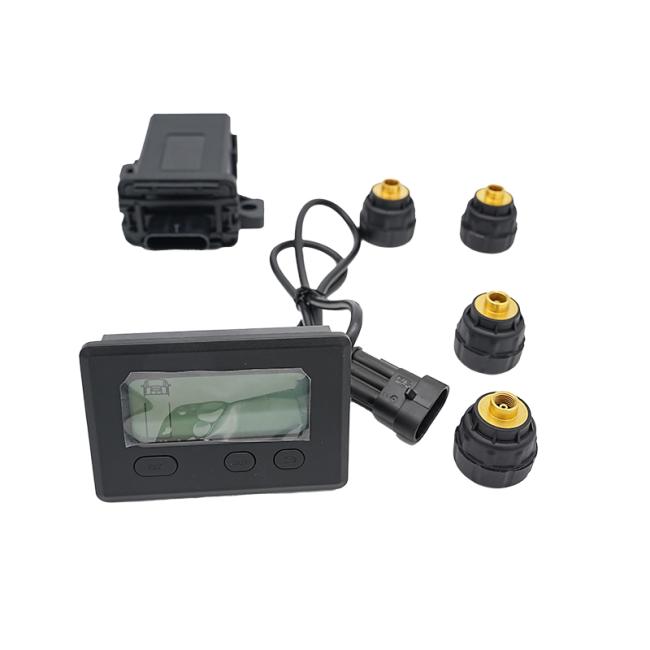

6-18 Tires Automotive Tire Pressure Sensor for Trailer
This system is for truck, semi-truck, trailer heavy-duty truck and commercial vehicles. Maximum support 18 tires.
It is with embeded display and can support RS232 AND Canbus. The monitor is 2.8inch LED black-white display.
It is directly connect the vehicle power and do not have built-in battery in the monitor. It's good to avoid the battery
problem in mornitor.

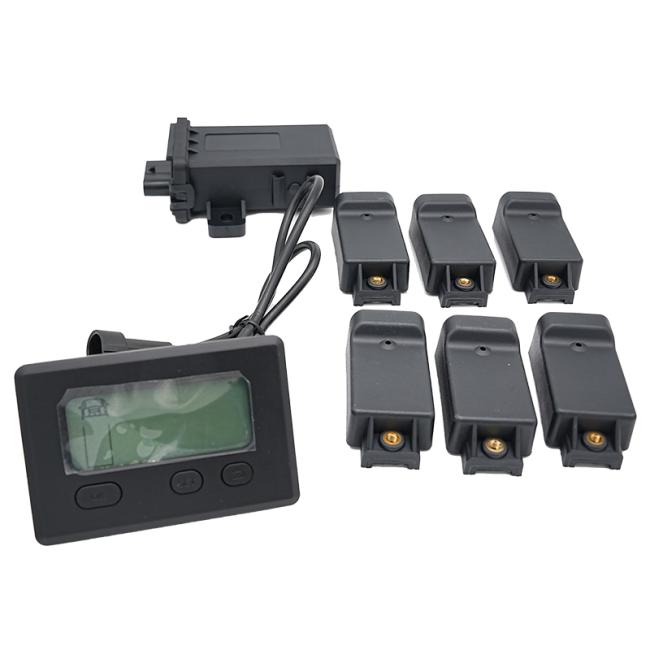

Both internal sensor and external tire pressure sensors for choice. Customers can choose the actual sensor
according to your tires you need.
The operation frequency is 433.92MHz ±68KHz.
Features
- The LED screen shows pressure and temperature
- Customize the tire arrangement, and monitor 18 tire pressures synchronously
- Monitoring tire pressure with GPS
- The standard value of tire high/low pressure alarm can be set.
- When the pressure and temperature are abnormal, LED display and sound prompt alarm.
- Multiple pressure / temperature unit selection.
- Pressure and temperature can be displayed simultaneously.
- All tire information is displayed circularly.
- Long receiving distance.
Product Parameter
| Serial Number | Project | Technical Parameter |
|---|---|---|
| 1 | External Input Voltage | DC 9V ~ DC 36V |
| 2 | High Frequency Demodulation Mode | FSK |
| 3 | Working Current (24V) | < 50 mA |
| 4 | High Frequency Receiving Frequency | 433.92 MHz ± 40 KHz |
| 5 | High Frequency Receiving Sensitivity | < -105 dBm |
| 6 | Working Temperature | -30°C ~ 80°C |
| 7 | Storage Temperature | -40°C ~ 125°C |
| 8 | Weight | 190 g ± 5 g |
Sensor
| Operating frequency | 433.92MHz ± 28KHz |
| Operating voltage | 2.0~3.3V |
| Operating current | ≤10mA |
| Static current | ≤1uA |
| Operating temperature | -30~+85°C |
| Storage temperature | -30°C~+85°C |
| Battery model | Maxell 2450 550MHA |
| Battery lifespan | ≥ 5 years |
| Pressure range | 0-14Bar/0-203Psi |
Receiver
| Operating frequency | 433.92MHz ±68KHz |
| Operating voltage | DC9V-DC30V |
| Operating current | ≤50mA |
| Static current | ≤10mA |
| Operating temperature | -30°C ~ +85°C |

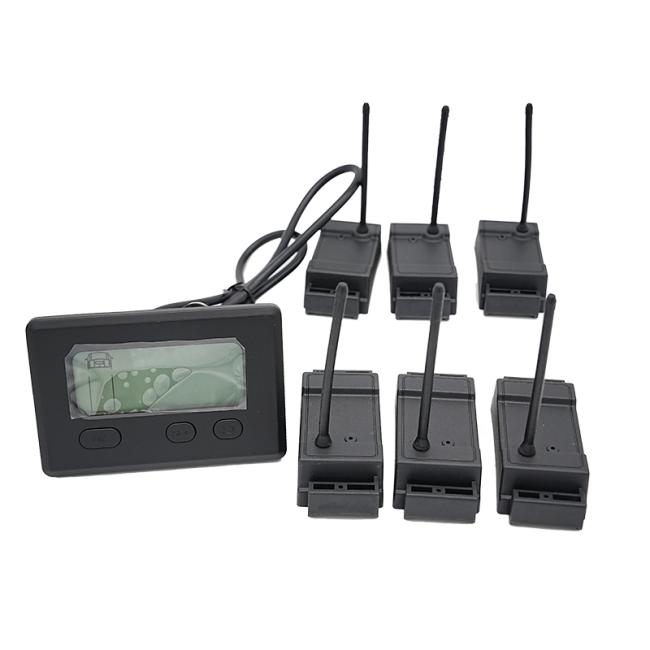

Repeater
| Operating frequency | 433.92MHz ± 68KHz |
| Operating voltage | DC9V-DC30V |
| Operating current | ≤50mA |
| Static current | ≤10mA |
| Operating temperature | -40°C~+125°C |
| Storage temperature | -40°C~+125°C |
| Power supply | Trunk power |
| RF Transmitter power | <10dbm |
| RF receiver sensitivity | >-105dbm |
