Truck Low Speed Collision Warning Sart-off Pedestrian Detection Front MOIS UN R159 Moving Off Assist Information And BSIS UN R151 Blind Spot Information System
Truck Low Speed Collision Warning Sart-off Pedestrian Detection Front MOIS UN R159 Moving Off Assist Information
And BSIS UN R151 Blind Spot Information System

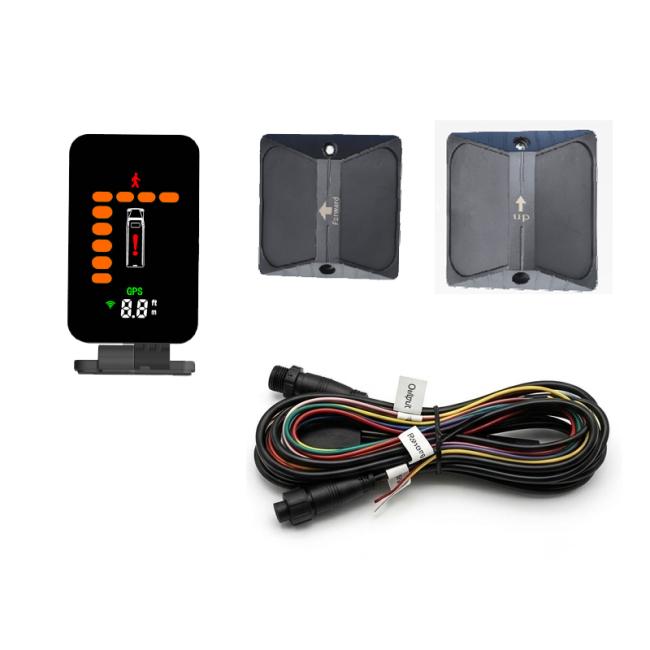

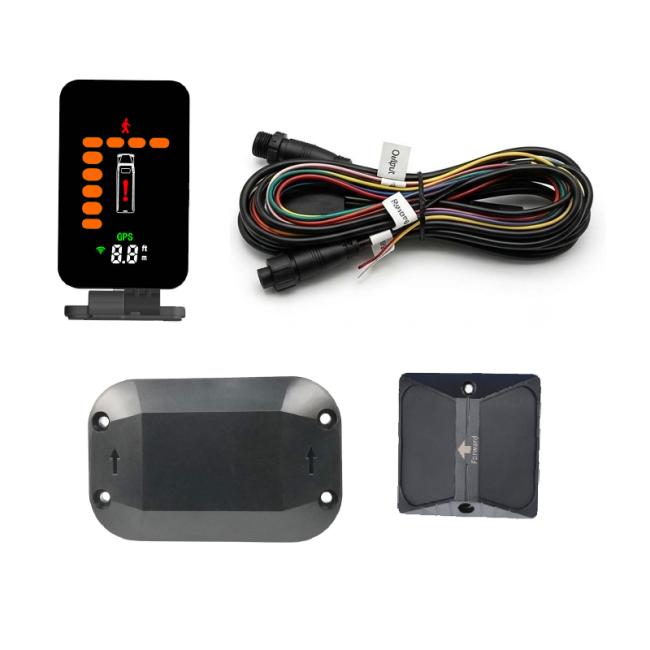

BSIS System consist of two built-in radar PCBA to provide full 180° coverage of the vehicle’s side blind spots.
It effectively detects obstacles within the entire blind spot area.

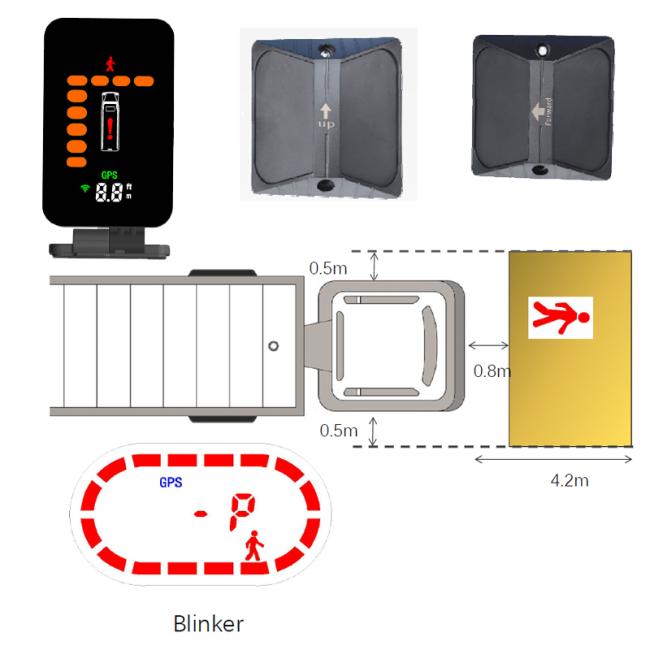

MOIS System use a microwave radar to detect obstacles at front of vehicles. During startup or low-speed driving,
the system provides warnings for potential collision hazards (such as bicycles or motorcycles in front of the vehicle
at traffic lights, or pedestrians or bicycles/motorcycles crossing pedestrian crossings).
It's a microwave 77Ghz millimeter radar system for commericial vehicles, trucks and buses. It is a system to
detect and inform the driver of the presence of pedestrians and cyclists in the close-proximity forward blindspot
of the vehicle and, if deemed necessary based on manufacturer strategy, warn the driver of a potential collision.
It can detect the bicycles and pedestrian in driving with speed less than 20km/h to avoid any collision in driving.
Features
- 77Ghz object detection radar
- Millimeter wave technology based
- LED display and audible buzzer alarm
- Detection length and width settable. maximum length 50m, width 10m
- Handheld setup tool to adjust detection area freely for choice
- 150 degree radar and 180 degree radar available for choice
- OEM and ODM service available for 360 degree detection
BSIS UN R151 Blind Spot Information System And MOIS UN R159 Moving Off Information System is an advanced
safety standard designed to complement the UN ECE requirement. Its primary objective is to equip HGVs with
additional safety features that minimize risks to vulnerable road users, including pedestrians and cyclists.
Product parameter
| ITEM | Parameter | ITEM | Parameter |
|---|---|---|---|
| Rated working voltage | 12V / 24V | Horizontal angle | 150° |
| Operating voltage range | 9–36V | Vertical angle | 20° |
| Working current | < 200mA | Angle accuracy | ±0.5° @ 40° |
| Operating temperature range | -40°C ~ +80°C | Angular resolution | 15° |
| Storage temperature range | -40°C ~ +85°C | Speed range | -300 ~ +300 km/h |
| Working frequency | 77 GHz | Speed accuracy | 0.2 m/s |
| Transmit power | 12 dBm | Detectability distance | 50 m |
| Modulation mode | FMCW | Distance accuracy | 0.1 m |
| Antenna form | 2TX, 4RX | Distance resolution | 0.1 m |
| Traceable target number (Max) | 31 targets | Waterproof grade | IP67 |
