Drive-in Rack

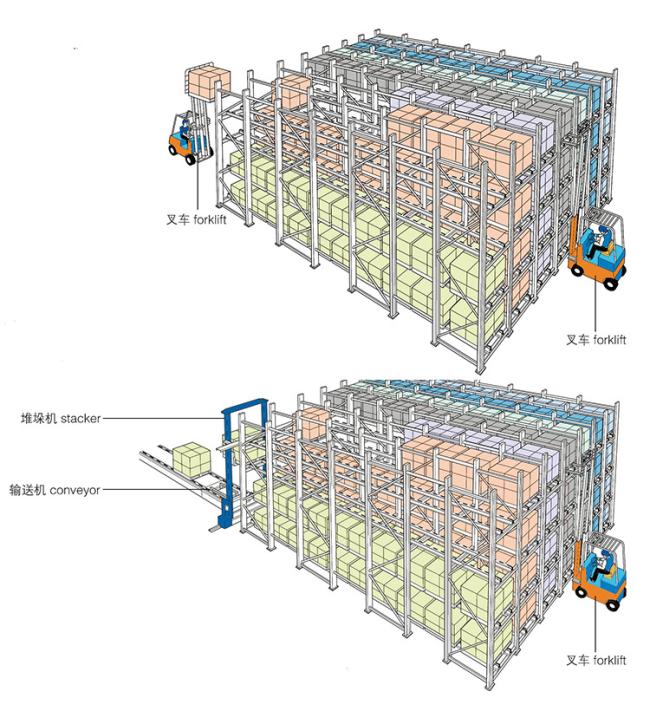

Drive-in racks are designed to maximize warehouse space by minimizing aisles and allowing forklifts to drive directly into storage lanes. This system is perfect for storing large volumes of similar products, using the Last In, First Out (LIFO) inventory method. Ideal for cold storage, it can support heavy-duty operations while optimizing floor space.

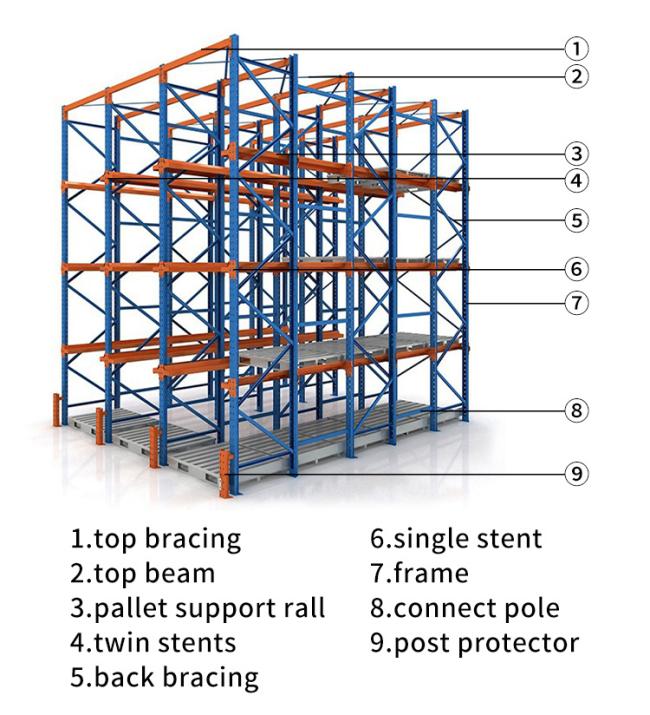

Structure & Components

• Upright Frames: Reinforced with heavy-duty steel to ensure durability.

• Beams: Horizontal beams connecting the uprights to create stability.

• Rails: Designed to guide pallets within storage lanes.

• Protective Accessories: Optional column guards and safety stoppers to protect the structure.

Technical Specifications

• Load per Pallet: 500–1500 kg

• Rack Depth: Up to 10 pallets deep

• Height: Customizable based on warehouse layout

• Material: Cold-rolled steel, powder-coated finish

Q&A

Q1: What is the recommended maximum depth of a Drive-in Rack?
A: Typically, the depth can reach up to 10 pallets per lane, depending on the space and operational needs.

Q2: Can the rack be used in cold storage?
A: Yes, the system is ideal for cold storage applications, as it can withstand low temperatures with proper coatings.
