A10VSO45DFLR/31R-VPA12N00 A10VSO45DR/31L-VPA12N00 Industrial Hydraulic Pump
Price:
negotiation
MOQ:
negotiation
Delivery Time:
negotiation
Brand:
Rexroth
Product Description
A10VSO45DFLR/31R-VPA12N00 A10VSO45DR/31L-VPA12N00 German Rexroth mechanical system hydraulic industrial hydraulic pump imported with original packaging
Product Details
Product Name
Hydraulic Piston Pump
Brand Name
REXROTH
Place of Origin
Fujian, China
Pump Type
Piston Pump
Material
Cast Iron
Weight
33 (Unit: Not Specified)
Warranty
1 Year
Package
Wooden Box

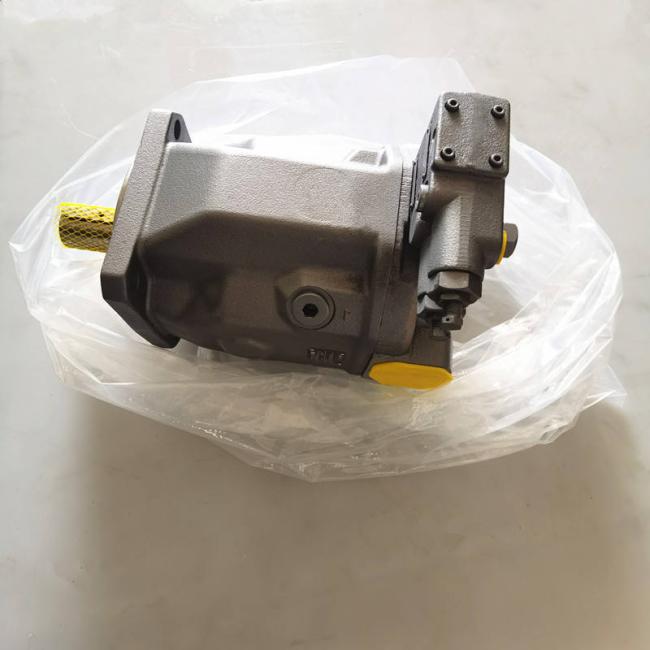

Product Image
Related Models
A10VSO71DRG/31R-VPA12N00
A10VSO71DRG/31R-VPA42N00
A10VSO71DFR1/31L-VPA42N00
A10VSO71DFR1/31L-VPA12N00
A10VSO100DRG/31R-PPA12N00
A10VSO100DFR1/31R-PPA12N00
A10VSO100DFLR/31R-PPA12N00
A10VSO100DRG/31R-VPA12N00
A10VSO100DRG/31L-PPA12N00
A10VSO100DRG/31L-VPA12N00
A10VSO140DRG/31R-PPA12N00
A10VSO71DFR/31R-VPA12N00
A10VSO71DG/31R-VPA12N00
A10VSO45DR/31L-PPA12N00
A10VSO45DG/31R-PPA12N00
A10VSO45DRG/31R-VPA12N00-
A10VSO45DFR1/31R-VPA12N00
A10VSO45DFLR/31R-VPA12N00
A10VSO45DR/31L-VPA12N00
A10VSO71DRG/31R-PPA12N00
A10VSO71DRG/31R-PPA42N00
A10VSO71DFR1/31R-PPA12N00
A10VSO71DR/31R-VPA12N00
A10VSO45DR/31R-PPA12N00
Installation & Commissioning FAQ
Q1: What are the key mechanical installation requirements to avoid early failure?
Focus on three critical points:
① Coaxiality: When coupling with the motor, use a flexible coupling and ensure coaxiality ≤0.05 mm (radial) and ≤0.1 mm (axial) via dial indicator—misalignment exceeding 0.1 mm will cause bearing wear within 300 hours
② Mounting flange: Tighten DIN 24336 Type D flange bolts to 85 N*m torque (use torque wrench, follow VDI 2230 standards)
③ Suction line: Use hose with inner diameter ≥25 mm (avoid ≤20 mm to prevent cavitation), length ≤2 m, and suction height ≤500 mm (from oil level to pump center); install a 100 μm suction strainer
① Coaxiality: When coupling with the motor, use a flexible coupling and ensure coaxiality ≤0.05 mm (radial) and ≤0.1 mm (axial) via dial indicator—misalignment exceeding 0.1 mm will cause bearing wear within 300 hours
② Mounting flange: Tighten DIN 24336 Type D flange bolts to 85 N*m torque (use torque wrench, follow VDI 2230 standards)
③ Suction line: Use hose with inner diameter ≥25 mm (avoid ≤20 mm to prevent cavitation), length ≤2 m, and suction height ≤500 mm (from oil level to pump center); install a 100 μm suction strainer
Q2: How to properly connect the hydraulic lines (pressure, suction, case drain)?
Line connection standards:
① Pressure port (P): Use DN20 steel pipe (PN40) or high-pressure hose (R12), tighten to 120 N*m; install a pressure gauge (0-400 bar) 10 cm from the port to monitor real-time pressure
② Suction port (S): Use smooth-bore hose (avoid corrugated pipes) with no throttling components; ensure the line is filled with oil before startup
③ Case drain port (T): Mandatory to use DN15 hose, directly connect to the tank (no valves or reducers), and ensure the port is 10 cm above the tank oil level to prevent back pressure
④ Control ports (X, Y): For FR control, connect port X to the pilot pressure source (30-40 bar) and port Y to the tank; use DN8 hose
① Pressure port (P): Use DN20 steel pipe (PN40) or high-pressure hose (R12), tighten to 120 N*m; install a pressure gauge (0-400 bar) 10 cm from the port to monitor real-time pressure
② Suction port (S): Use smooth-bore hose (avoid corrugated pipes) with no throttling components; ensure the line is filled with oil before startup
③ Case drain port (T): Mandatory to use DN15 hose, directly connect to the tank (no valves or reducers), and ensure the port is 10 cm above the tank oil level to prevent back pressure
④ Control ports (X, Y): For FR control, connect port X to the pilot pressure source (30-40 bar) and port Y to the tank; use DN8 hose
