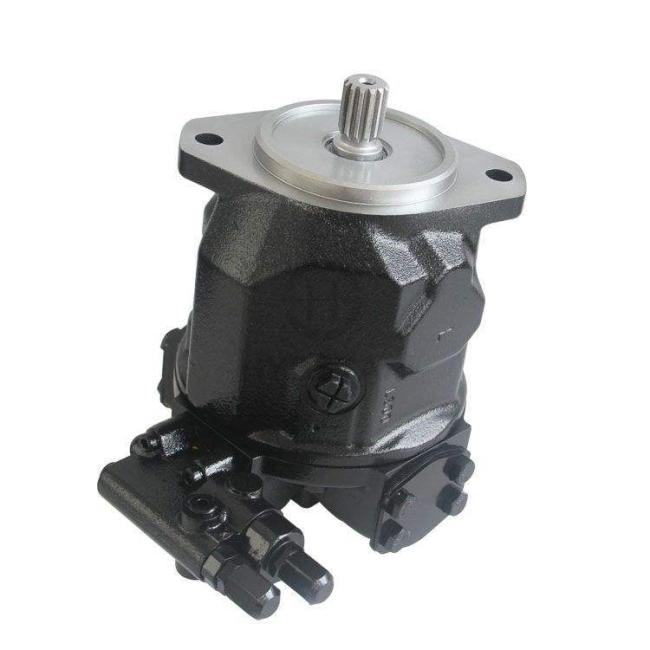

A10VSO45DFR/31R-PPA12N00 A10VSO45DFR1/31L-PPA12N00 Mechanical Hydraulic Pump

A15: Tiered maintenance plan:
• Daily: Check oil level (maintain 2/3-3/4 of the tank), case temperature (<90°C), and listen for abnormal noise; record pressure and flow values
• Weekly: Inspect all hose connections for tightness; clean the suction strainer and pressure gauge
• Monthly: Test pilot pressure (port X) and adjust to 35 bar if needed; check for oil contamination (use a contamination test kit)
• 6-month: Replace the return filter (25 μm) and send oil for analysis (check particle count and moisture)
• 12-month: Full disassembly--replace seals (kit R900912345), bearings (R900014567), and valve plates; measure piston-cylinder and swashplate wear
• 24-month: Replace the entire pump if wear exceeds 30% of allowable limits

A16: Step-by-step oil change:
• Preparations: Heat the oil to 40-50°C (reduces viscosity for thorough drainage); shut down the system and relieve pressure (open the pressure relief valve)
• Drainage: Open the tank drain valve and remove the suction strainer to drain residual oil (takes 15-20 minutes)
• Cleaning: Flush the tank with 5-10 L of new oil (circulate with a portable pump for 5 minutes); clean the strainer and suction line with compressed air
• Refilling: Use a filtered oil filler (10 μm) to add VG 46 oil to the tank; bleed air from the pump (jog motor 3 times)
• Post-check: Run the pump at low speed for 10 minutes, then take an oil sample to verify cleanliness (NAS 9 class)
