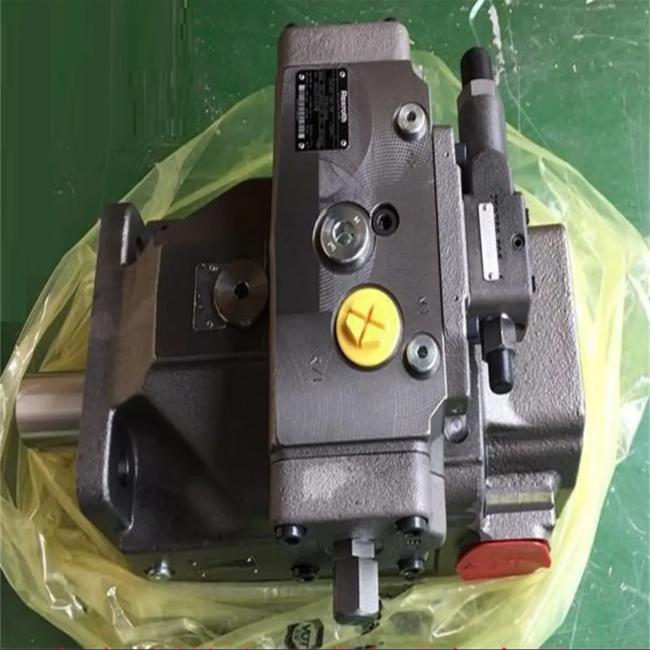

Industrial Rexroth Plunger Pump A4VSO125DRG/22R-PPB13N00 A4VSO40LR2G/10L-PPB13N00 A4VSO71LR2/10R-VPB25N00

Use the "pressure-flow characteristic curve" method for differentiation without disassembly: Data Collection: Measure pressure (p) and flow (Q) at 5 load points (0%, 25%, 50%, 75%, 100%) using a portable hydraulic tester (Rexroth VT-HACD-1-1X); LR2 Control Valve Failure Pattern: The p-Q curve deviates from the hyperbolic power curve (P=p×Q=constant) -- e.g., at 50% load, pressure is 10% lower than expected while flow is normal, indicating the valve cannot restrict displacement properly; Piston-Cylinder Wear Pattern: The p-Q curve is hyperbolic but shifted downward -- volumetric efficiency drops (e.g., 100% load flow is 85 L/min instead of 106.5 L/min), and pressure builds slowly (≥2s to reach 350 bar); Verification Test: For control valve suspicion -- bypass the LR2 valve and use a manual control valve; if the p-Q curve returns to normal, the LR2 valve is faulty. For piston wear suspicion -- measure case drain flow (exceeds 3 L/min at 350 bar indicates internal leakage). This method identifies the root cause with 90% accuracy.

Targeted restoration based on wear analysis (costs 40% less than full replacement): Wear Assessment: Disassemble the pump and measure key components: 1) Piston-cylinder clearance (normal ≤0.02mm; replace if >0.03mm); 2) Valve plate contact area (replace if <80% contact); 3) Swashplate surface roughness (Ra ≤0.4μm; lap if Ra >0.8μm); Restoration Steps: 1) Replace piston-cylinder pairs (Rexroth R900909645) and valve plates (Rexroth R900912345); 2) Lap the swashplate with 400-grit then 800-grit abrasive paper until Ra ≤0.4μm; 3) Replace all seals with FKM kits and apply a thin layer of assembly grease (Rexroth LT 31) to moving parts; Post-Restoration Testing: Run the pump at 1500 rpm and 350 bar -- measure flow (≥101 L/min indicates volumetric efficiency ≥95%); check for pressure stability (fluctuation ≤5 bar); Preventive Measures: Upgrade to NAS 8 class filtration and shorten oil change intervals to 4 months to maintain restored efficiency. This process extends pump life by 4000-6000 hours.
