ODM Adjustable Bimetal Thermostat Creep Action 200C Bi Metal Switch
Price:
please contact us
MOQ:
1000
Delivery Time:
5-7 work days
Brand:
HCET
Product Description
VA1 Creep Action Thermostat - Precision Temperature Control
Professional temperature management solution for heating pads and electric blankets with precision calibration and safety compliance.
Product Specifications
| Product Name | VA1 creep action thermostat |
| Material | Plastic case |
| Temperature Range | 0~200℃ |
| Tolerance | ±3℃, ±5℃ |
| Voltage | 120V |
| Current | 5A |
| Application | Heating Pads/Electric Blankets |
Product Overview
The HCET VA1/VAA1 series creep action thermostat provides precise temperature management for low-voltage heating systems. Engineered with slow make/break action technology, it prevents arcing and extends equipment lifespan through gradual switching.
Certified for UL-compliant heating pads, electric blankets, and medical warming devices, this preset-calibration thermostat offers ±3℃ precision across a 5℃-200℃ range. The insulated case design meets global electrical safety standards for consumer appliances.
Key Features
- Creep Action Mechanism: Slow make/slow break switching eliminates current surges for sensitive low-voltage circuits
- Conductive Bimetal Construction: Direct current-carrying design ensures rapid thermal response and energy efficiency
- 5A/120V AC Rating: Voltage compatibility for global appliance integration
- Precision Temperature Control: Factory-calibrated with ±3℃ tolerance (options for ±5℃/±8℃)
- Medical/Home Appliance Certified: Suitable for patient warming systems and household heating devices
Electrical Characteristics
Temperature Range: 0℃~200℃ (Customizable temperature available)
Temperature Tolerance: ±3℃, ±5℃, ±8℃
Electrical Specifications: VA1 & VAA1: 2A/120VAC | VA2 & VAA2: 5A/120V AC

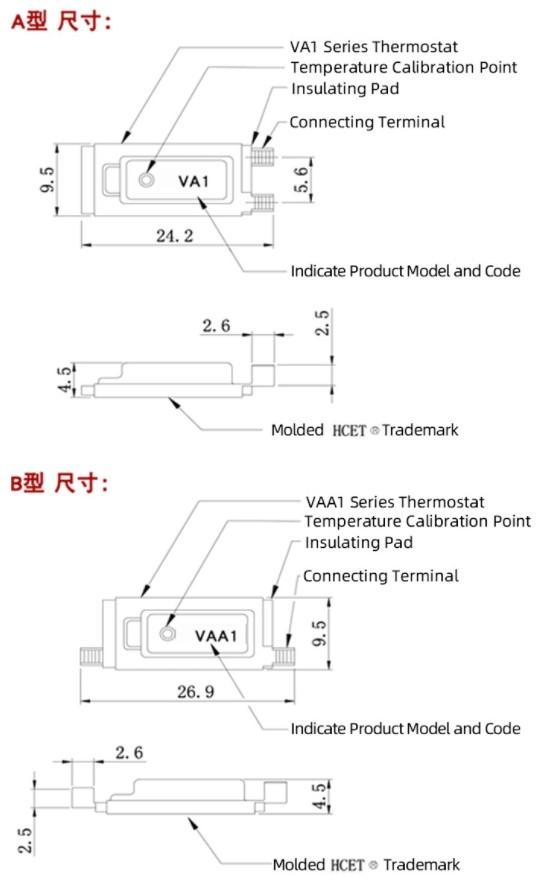

Product Dimensions

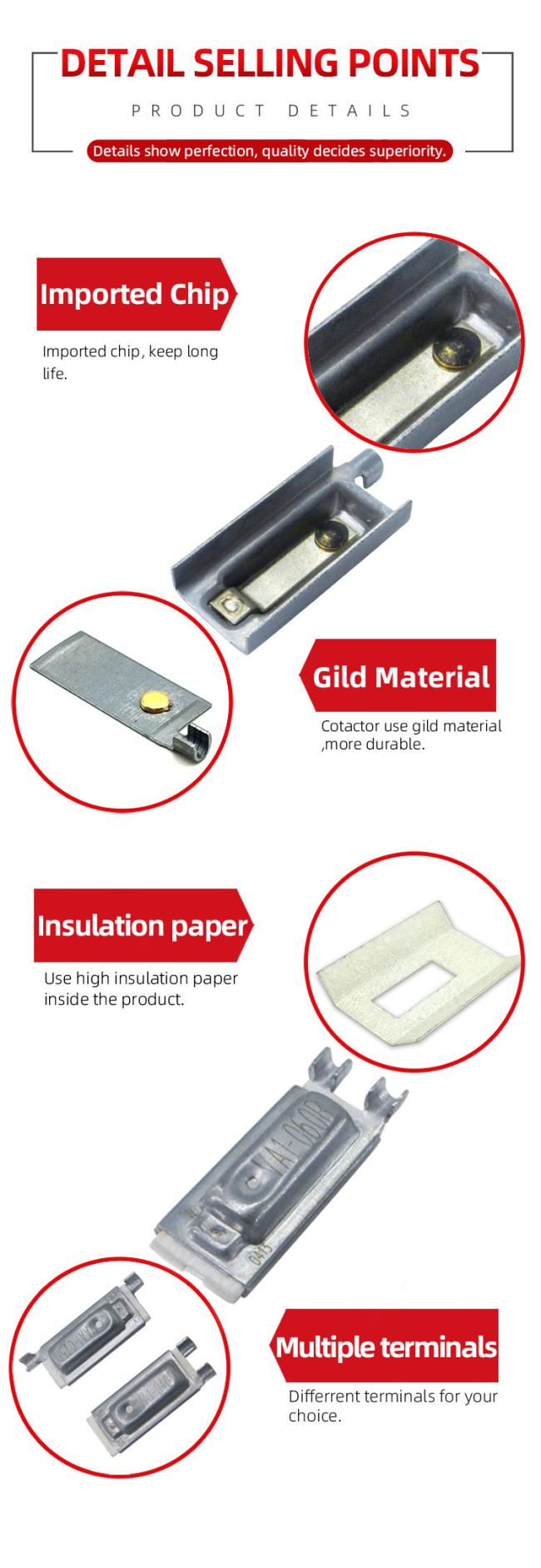

Product Details
Typical Applications
