Creep Action Bimetal Thermostat Automotive Bi Metal Temperature Switch

Price Negotiable

Price: please contact us

MOQ: 1000

Delivery Time: 5-7 work days

Brand: HCET

Product Description

VA1 Creep Action Bi-Metal Temperature Switch Thermostat

Precision-engineered thermal protection device designed for low-voltage heating applications requiring reliable temperature control in automotive seat heaters.

Product Specifications

Attribute	Value
Product Name	VA1 Creep Action Thermostat
Material	Plastic Case
Temperature Range	0~200℃
Tolerance	±3℃, ±5℃
Voltage	120V
Current	5A
Application	Automotive Seat Heaters

Key Features

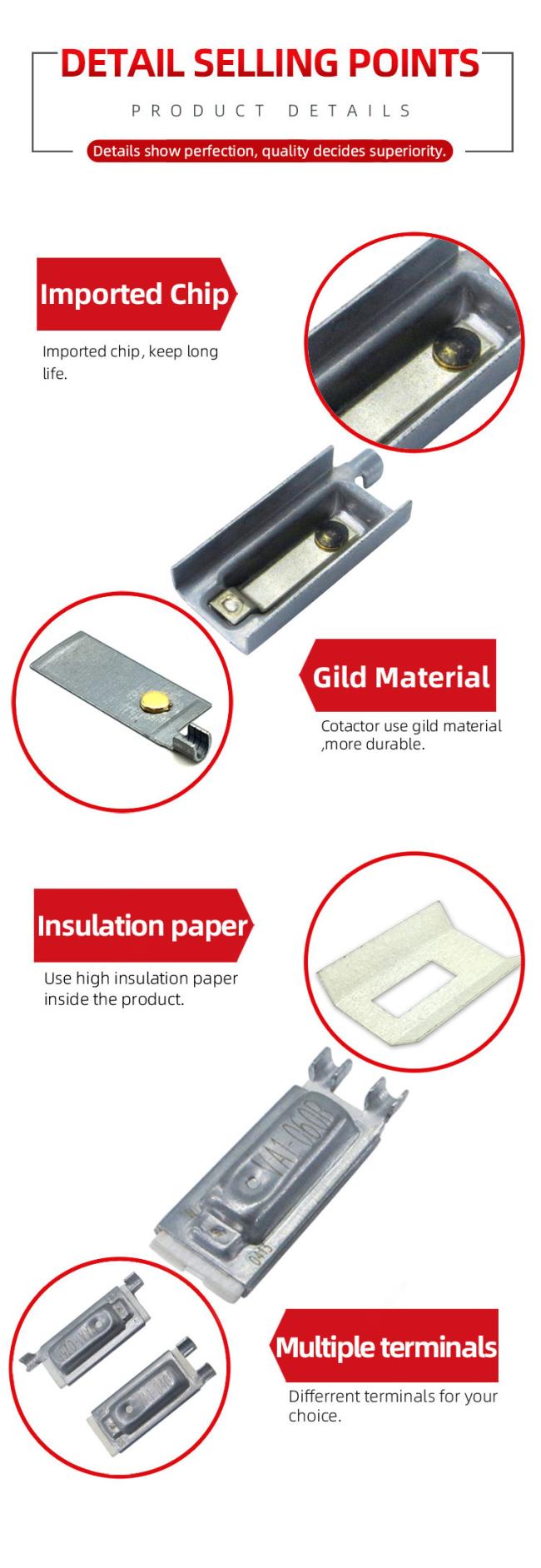

Inherent Safety Design: Conductive bimetal construction eliminates secondary contacts, reducing failure points. Slow make/break action prevents arcing in low-current inductive loads (≤5A).
Precision Thermal Regulation: Factory-preset calibration from 5°C to 200°C (±3℃ option available). Zero differential ensures immediate circuit interruption at trip point.
Cross-Industry Versatility: Suitable for medical warming systems, therapeutic heat pads, UL-certified electric blankets, heated mattress pads, and low-voltage process heaters.

Electrical Characteristics

Temperature Range: 0℃~200℃ (Customizable temperature available)
Temperature Tolerance: ±3℃, ±5℃, ±8℃
Electrical Specifications: VA1 & VAA1: 2A/120VAC, VA2 & VAA2: 5A/120VAC

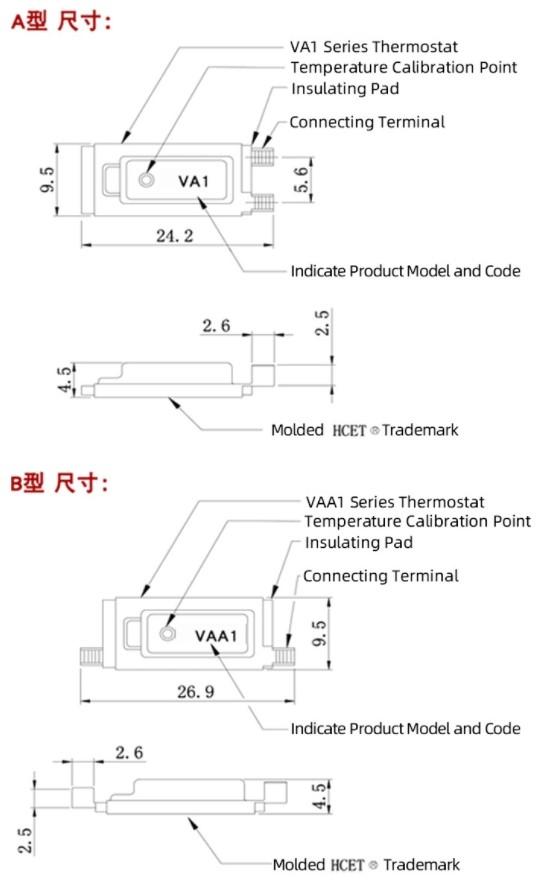

Product Dimensions
