China 0~200℃ Adjustable Bimetal Thermostat Switch 120V VA1 Creep Action Thermostat for sale

0~200℃ Adjustable Bimetal Thermostat Switch 120V VA1 Creep Action Thermostat

Price Negotiable
Price: please contact us
MOQ: 1000
Delivery Time: 5-7 work days
Brand: HCET
Product Description
HCET VA1/VAA1 Bimetal Creep Action Thermostat
Adjustable Temperature Overheat Protection for Electric Underblankets and Industrial Applications
Product Overview
The HCET VA1/VAA1 Series is a precision-engineered creep action thermostat utilizing conductive bimetal technology for reliable low-voltage temperature control. Designed with slow make/break switching mechanics, this safety-rated device provides ±3℃ accuracy across a 5℃-200℃ range, ideal for overheating prevention in personal heating appliances and industrial equipment. Certified to UL/CE standards, its electrically live case with optional insulation sleeve ensures compliance with global safety regulations while supporting 5A/120V AC.
Technical Specifications
Product Name VA1 Creep Action Thermostat
Material Plastic Case
Temperature Range 0~200℃ (Customizable temperature available)
Temperature Tolerance ±3℃, ±5℃, ±8℃
Voltage 120V AC
Current 5A
Application Electric Underblankets
Key Features
  • Bimetal Conductive Design: Current-carrying bimetal structure eliminates secondary circuits, enhancing response speed and durability.
  • Creep Action Mechanism: Gradual contact engagement reduces arcing, extending lifespan to 100,000+ cycles even under frequent load switching.
  • Precision Temperature Control: Factory-calibrated with ±3℃/±5℃/±8℃ tolerance options, ensuring consistent thermal protection for sensitive applications.
  • Versatile Termination Options: Choose VA1 (same-end) or VAA1 (opposite-end) terminal configurations, with optional pre-wired leads for OEM integration.
Electrical Specifications
Temperature Range: 0℃~200℃ (Customizable temperature available)
Temperature Tolerance: ±3℃, ±5℃, ±8℃
Electrical Ratings: VA1 & VAA1: 2A/120VAC; VA2 & VAA2: 5A/120V AC

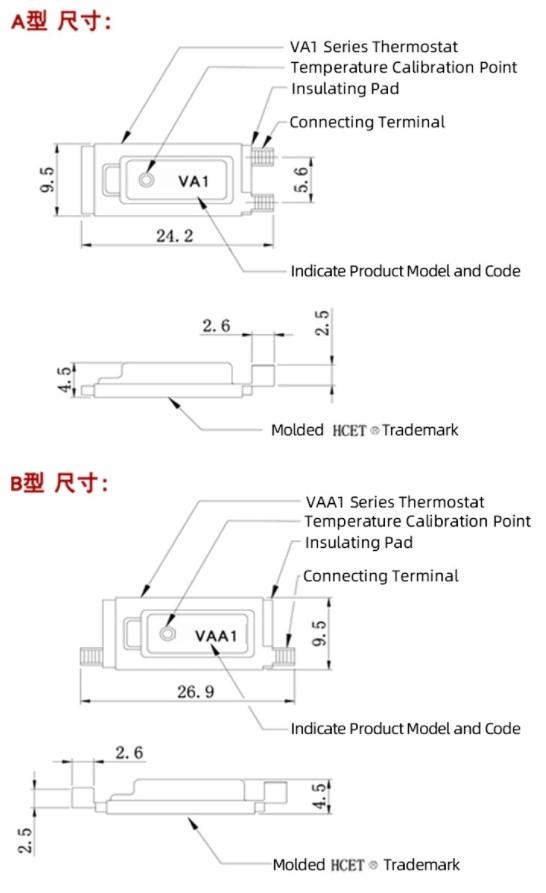

Product Dimensions
Detailed dimension diagram of HCET VA1/VAA1 thermostat showing exact measurements

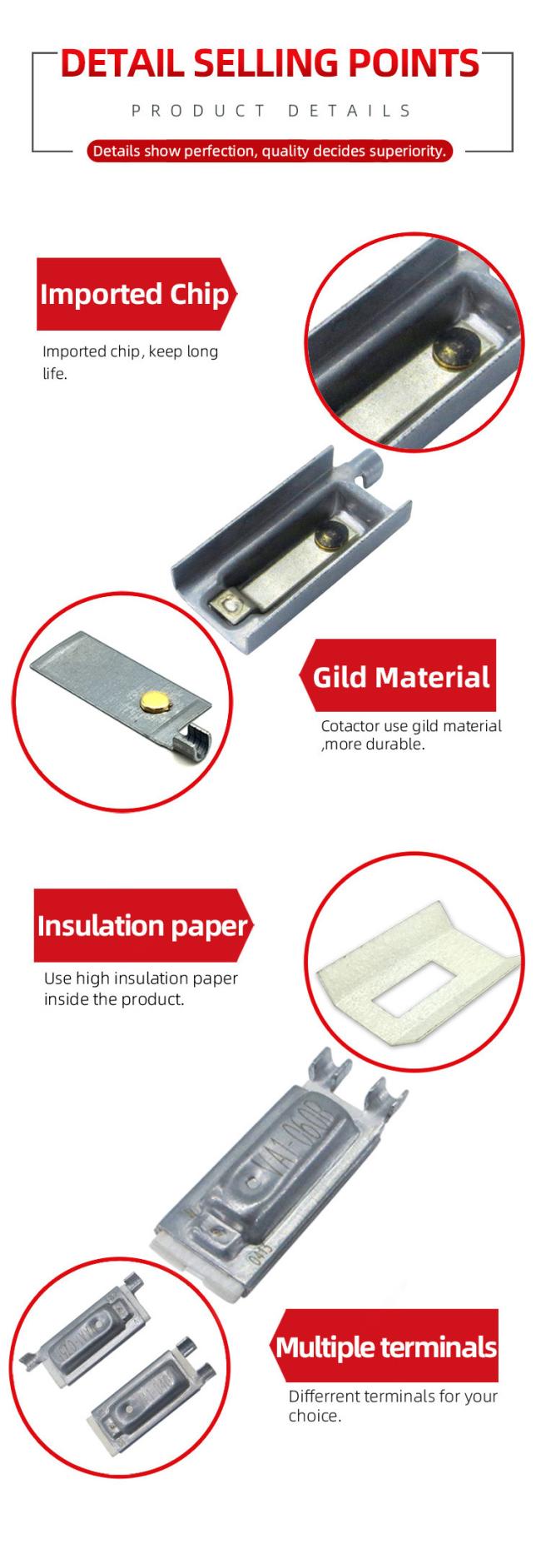

Product Details
Close-up view of HCET VA1/VAA1 thermostat components and construction
Typical Applications
Example installation of HCET VA1/VAA1 thermostat in electric underblanket application
