Glass Bead 100k 10k NTC Thermistor 3435k 3950 Hot Water Boiler Temperature Sensor
Price:
please contact us
MOQ:
1000
Delivery Time:
5-7 work days
Brand:
HCET
Product Description
Customized Glass Bead NTC Thermistor for Hot Water Boilers
HCET Glass Bead NTC Thermistors utilize advanced metal oxide ceramic technology to deliver highly accurate temperature monitoring in demanding environments. With resistance values ranging from 1KΩ to 200KΩ and operating temperatures of -40°C to 150°C, our B constant 3435/3950 series thermistors are engineered for precision thermal management.
Product Specifications
| Attribute | Value |
|---|---|
| Product name | NTC thermistor |
| Material | Plastic case |
| Temperature range | -40°C to 150°C |
| Tolerance | ±1%, ±2%, ±3% |
| Resistance values | Customizable |
| B values | Customizable |
| Application | Hot Water Boilers |

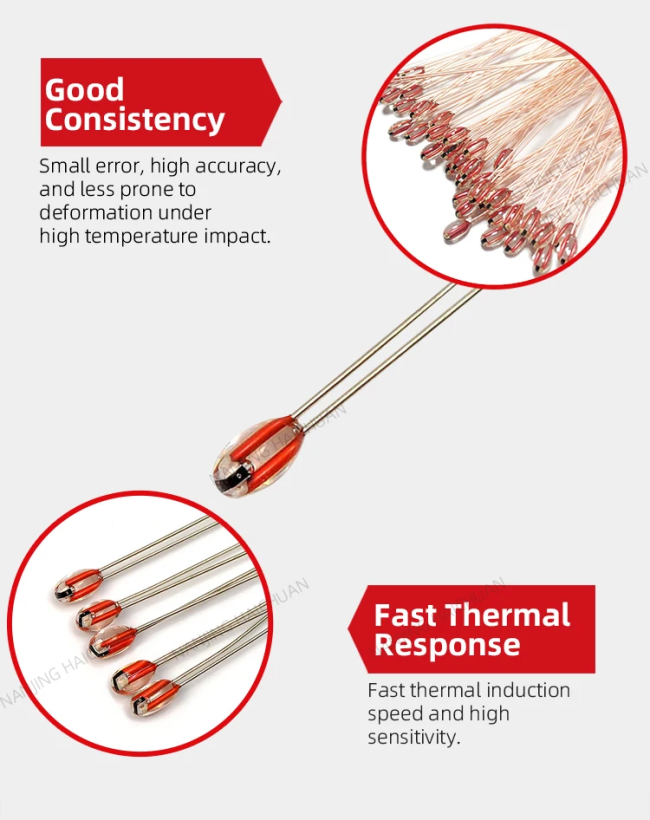

Key Features
- Military-Grade Stability: Sintered ceramic core withstands 500+ thermal shock cycles
- Custom Configuration: Choose wire length (13cm-2m), bead diameter (2mm-10mm), and epoxy coating for harsh environments
- Industry-Leading Response Time: <5s thermal time constant ensures real-time temperature compensation
Electrical Characteristics
Temperature Range: -40°C to 120°C (customizable temperatures available)
Resistance Values: 1K, 5K, 10K, 15K, 20K, 50K, 100K, 150K, 200K (customizable)
Beta Values: 3380K, 3435K, 3500K, 3700K, 3950K, 3985K, 4050K, 4150K, 4250K, 4450K (customizable)
Wire Lengths: 13cm, 20cm, 25cm, 30cm, 35cm, 40cm, 50cm, 1m, 2m (customizable)

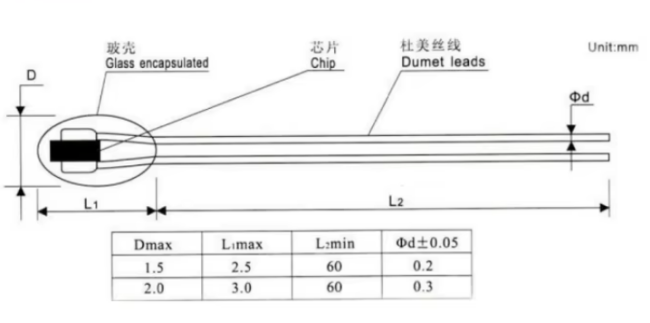

Dimensions
