Municipal Sanitation Hooklift Garbage Truck 4x2 Collection Garbage Disposal Vehicle
Price:
Negotiable
MOQ:
1
Delivery Time:
35-55days
Brand:
SHACMAN
Product Description

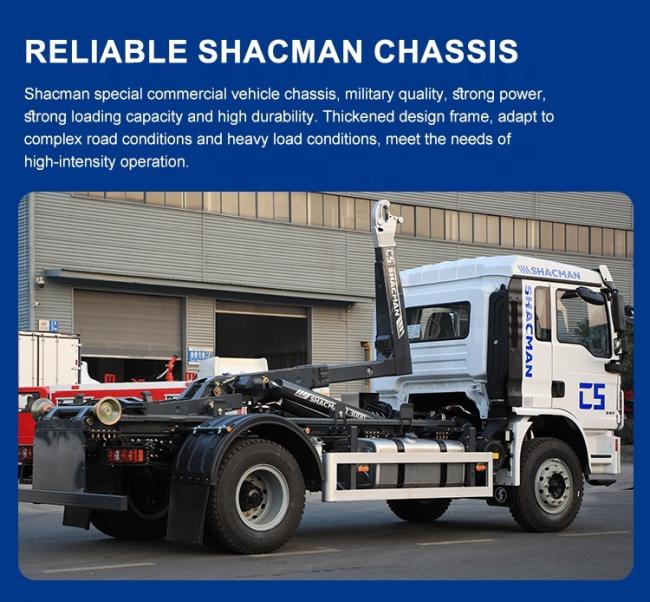

SHACMAN L3000 Series Detachable Compartment Garbage Trucks
A key vehicle in modern waste management, the compactor garbage truck (also called compressed or compression garbage truck) specializes in efficiently collecting, compressing and transporting waste, greatly enhancing disposal efficiency.
Our high-quality SHACMAN compactor garbage trucks are designed for waste collection and transportation in municipal sanitation, industrial parks, towns and scenic spots. With advanced compression technology, they deliver efficient, eco-friendly and reliable performance to meet international customers’ diverse needs.
SHACMAN Compactor Garbage Truck Advantages
-

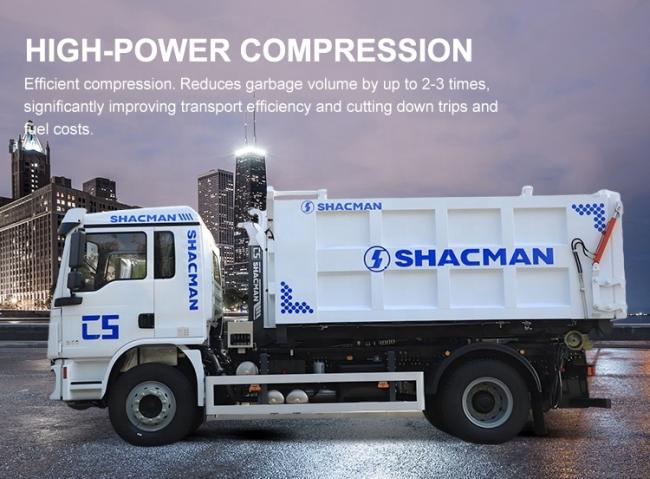

High-efficiency compression
-
Environmentally friendly & leakage-free
-

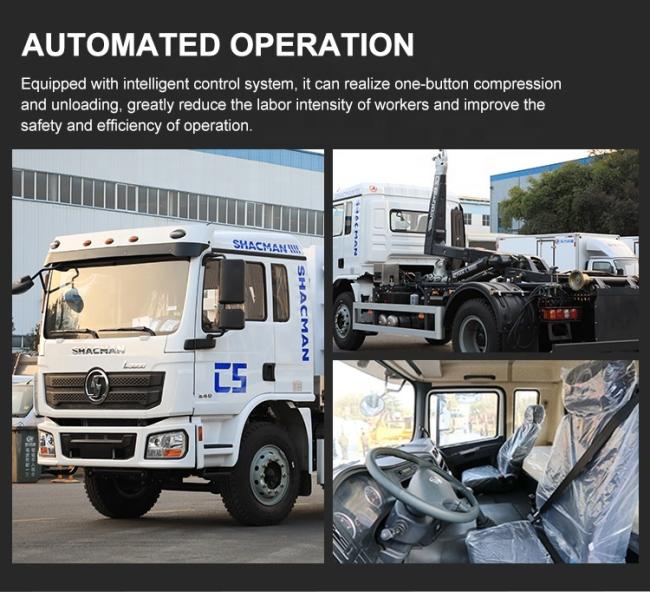

Automated operation
-
Economical & durable
-
Multi-scenario application
|
Truck Brand
|
SHACMAN L3000 Series Compressed Garbage Trucks
|
|
|
|
|
Steering Style
|
Left hand drive or right hand drive
|
|
|
|
Driving Type
|
4x2
|
|
|
|
Engine Brand
|
WEICHAI
|
|
|
|
Engine Power
|
210hp, 245hp, 300hp
|
|
|
|
Emission Standard
|
EURO 2
|
|
|
|
Fuel Tank
|
300L aluminum alloy
|
|
|
|
Frame
|
870x250(7+4)mm
|
|
|
|
Wheelbase
|
3600mm
|
|
|
|
Tire
|
10.00R20, 12.00R20
|
|
|
(Compression Bin)
|
Tank Volume
|
8m³, 10m³, 12m³, 14m³, 16m³
|
|
|
|
Compression Box Shape
|
Curved/square box body
|
|
|
|
Compression Ratio
|
≥2.5
|
|
|
|
Bucket Flipping Type
|
120/240/660/1100L drum
|
|
|
|
Flip Option
|

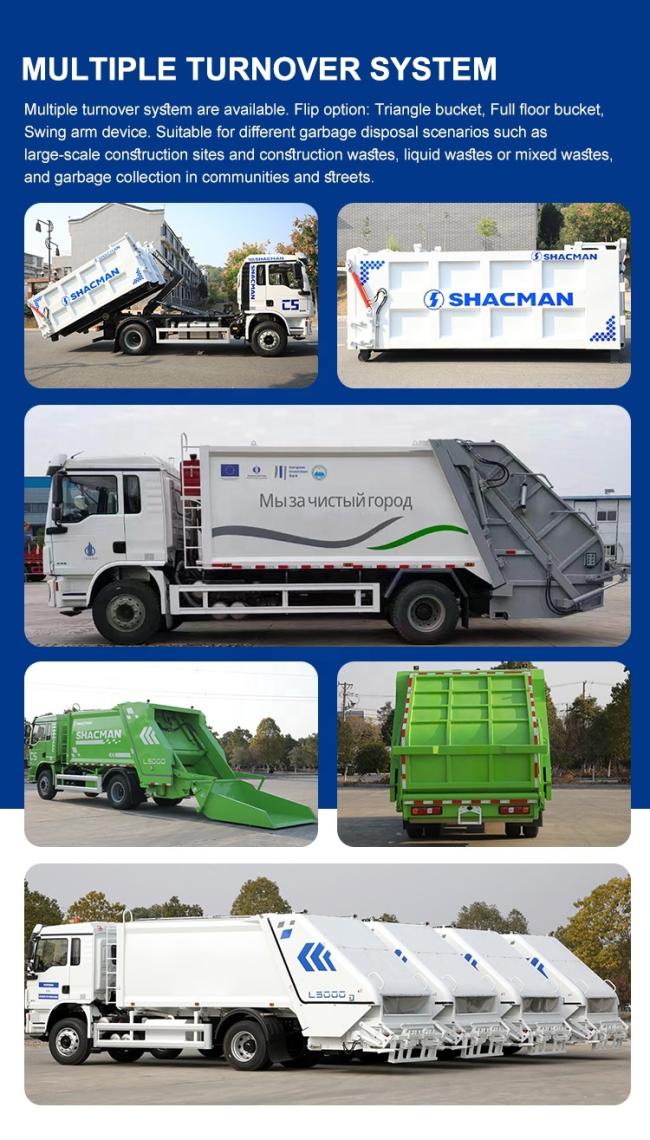

Triangle bucket/Full floor bucket/Swing arm device
|
|
|
|
Bucket Flipping Mechanism
|
Rear tail with bucket flipping mechanism
|
|
|
|
Effective Volume of Filler
|
≥1.8m³
|
|
|
|
Capacity of Sewage Tank
|
Front sewage tank 300L, Rear sewage tank 500L
|
|
|
|
Time of Filling Cycle Once
|
≤25s
|
|
|
|
Unload Garbage Time
|
≤45s
|
|
|
|
Control Mode
|
Automatic+manual+Wireless remote control
|
|
|
|
Control System
|
CAN-BUS bus control
|
|
Q1: What is the compression ratio and loading capacity of SHACMAN compactor garbage trucks?
A: SHACMAN compactor garbage trucks have a compression ratio of over 2.5:1 (up to 3.8:1 for some models). The effective compressed volume is 6-8 cubic meters and above, with a rated load capacity of approximately 8-10 tons, which varies by chassis and design. It has a much larger waste holding capacity compared to ordinary non-compacting garbage trucks.
Q2: Will there be sewage leakage during transportation?
A: No. We prioritize anti-leakage in design: the truck is equipped with a fully sealed body, multiple sealing strips, and a dedicated large-capacity sewage collection tank. All wastewater from compression and transportation is completely contained, avoiding secondary pollution.
Q3: Is the operation complicated? Does it require special training?
A: The operation is simple, controlled by a PLC one-touch panel in the cab or at the truck rear. Its high automation allows a single driver to complete all operations. We also provide detailed operational training upon delivery.
Q4: What customization options are available?
A: Customizations are available based on your needs, including: chassis brand/model (SHACMAN, Dongfeng, SINOTRUK HOWO, etc.); power type (Diesel/Pure Electric); loading method (Hanging bucket, Shovel bucket, Swing arm, etc.); volume and load capacity; and special configurations (weighing system, remote monitoring, high-pressure cleaning, air conditioning, explosion-proof, anti-corrosion treatment, extreme climate adaptations).
Q5: What is the warranty policy and after-sales service like?
A: We offer comprehensive support: the whole vehicle or body generally has a 1-year or operating hour-based warranty (specific terms to be confirmed). Our overseas service networks and partners provide timely after-sales service, technical support, and spare parts to ensure efficient vehicle operation.
