SHACMAN 20000kg Vacuum Sewage Suction Tanker Truck Sewerage Waste Cleaning Vehicle
Price:
Negotiable
MOQ:
1
Delivery Time:
35-55days
Brand:
SHACMAN
Product Description

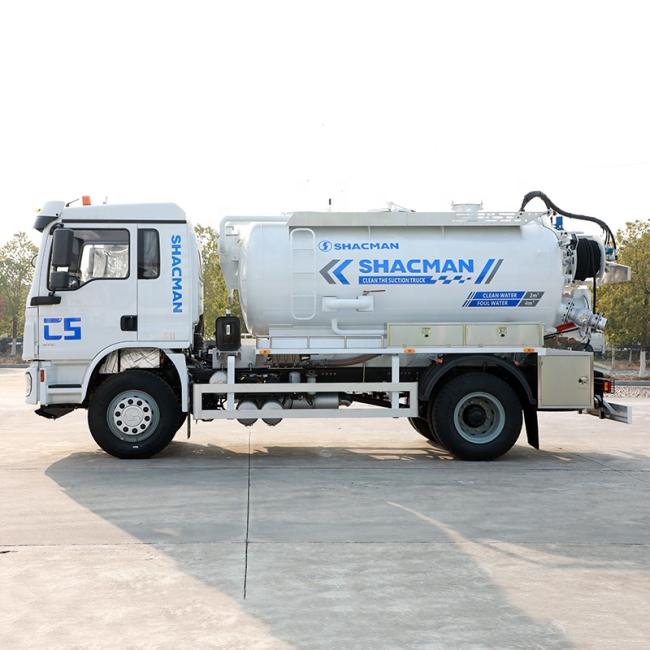

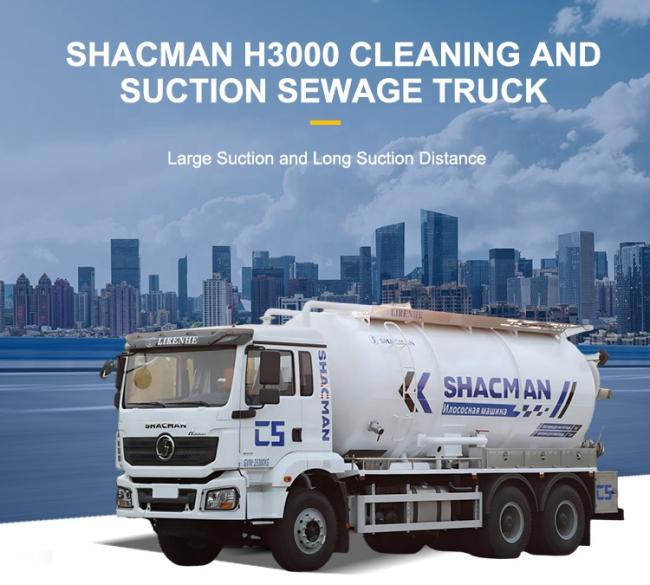

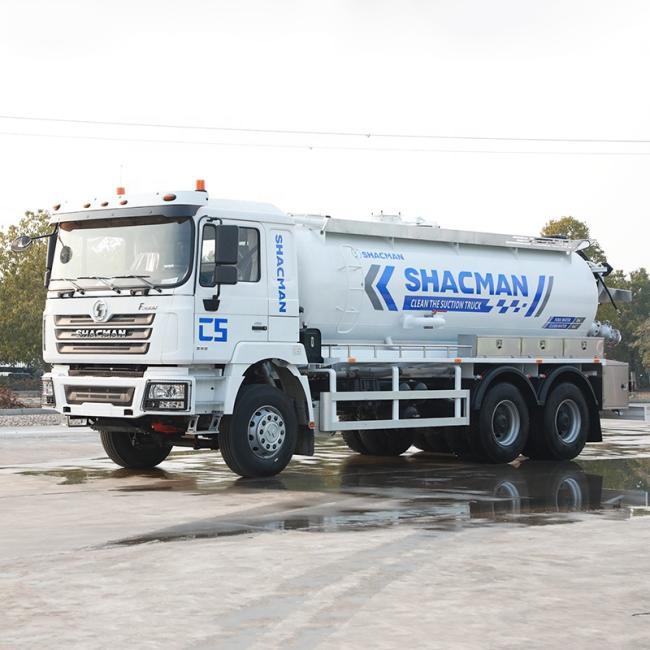

SHACMAN H3000 Series Sewage Suction Trucks

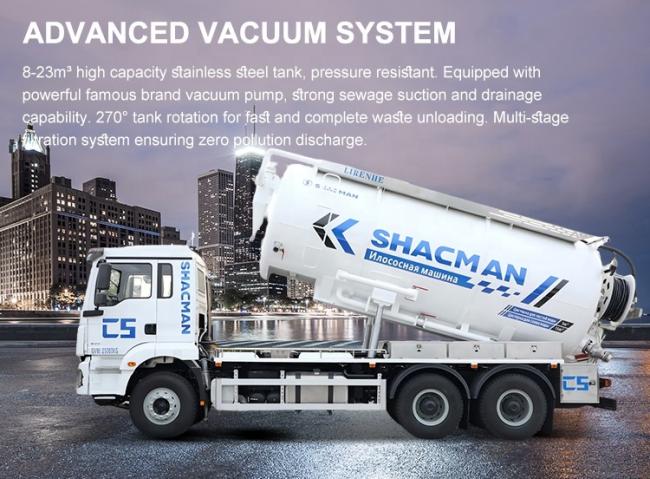

Suction sewage truck is a new type of sanitation vehicle that collects, transfers and cleans sludge and sewage to avoid secondary pollution. Suction sewage truck can suck and discharge itself, with fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud and crude oil. SHACMAN sewage suction truck adopts the vacuum pump of the sewage suction truck, which is advanced in domestic technology, with large suction and long suction distance, and is especially suitable for the suction, shipment and discharge of sludge in sewers, especially for the suction of sewage mud, silt, stones, bricks and other large objects.
|
Truck Brand
|
SHACMAN H3000 Series Sewage Suction Trucks
|
|
|
|
Driving Style
|
Left hand drive/Right hand drive
|
|
|
|
Driving Type
|
6x4
|
8x4
|
|
|
Wheelbase
|
3775+1400mm
|
1800+3575+1400mm
|
|
|
Max. Speed
|
75km/h
|
75km/h
|
|
|
Fuel Type
|
Diesel
|
Diesel
|
|
|
Engine Model
|
WEICHAI
|
WEICHAI
|
|
|
Transmission
|
FAST
|
FAST
|
|
|
Power
|
300HP
|
375HP
|
|
|
Emission Standard
|
EURO II
|
EURO V
|
|
|
Front/Rear Axle
|
HANDE
|
HANDE
|
|
|
Steering
|
ZF technology
|
ZF technology
|
|
|
Suspension
|
Front and rear multi-leaf spring, four main plates+four horse bolts
|
|
|
|
Frame
|
850x300(8+7)mm
|
850x300(8+7)mm
|
|
|
Fuel tank
|
400L Aluminum alloy
|
400L Aluminum alloy
|
|
|
Brakes
|
Running brake: Dual circuit compressed air brake
Parking brake: Air discharging with spring control
Auxiliary brake: Engine exhaust brake
|
|
|
|
Cabin
|
Standard flat cab(Optional)
|
|
|
4x2 Cleaning the Suction Truck
6x4 Cleaning the Suction Truck

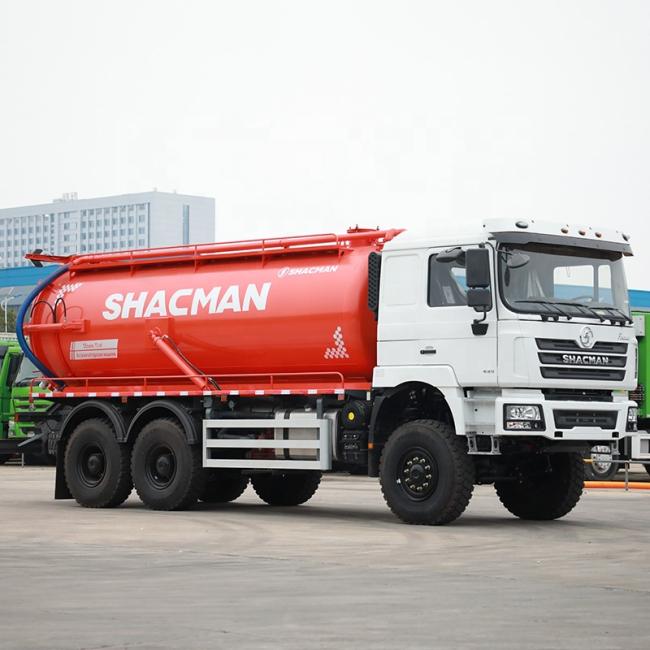

6x6 Cleaning the Suction Truck

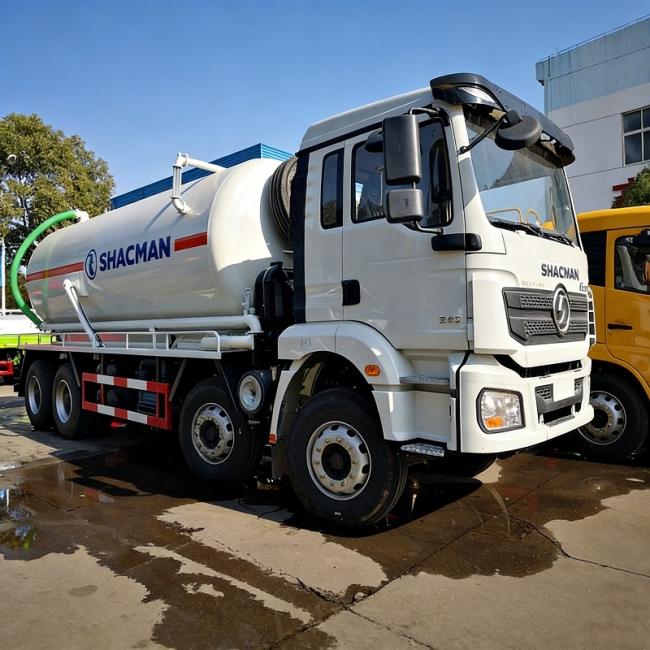

8x4 Cleaning the Suction Truck
1.Professional export packaging: Weather-proof and secure. 2.Multiple shipping methods: RORO, container, or bulk vessel. 3. Worldwide deliver: Experience in shipping to 50+ countries. 4. Documentation support: Complete export documentation provided.

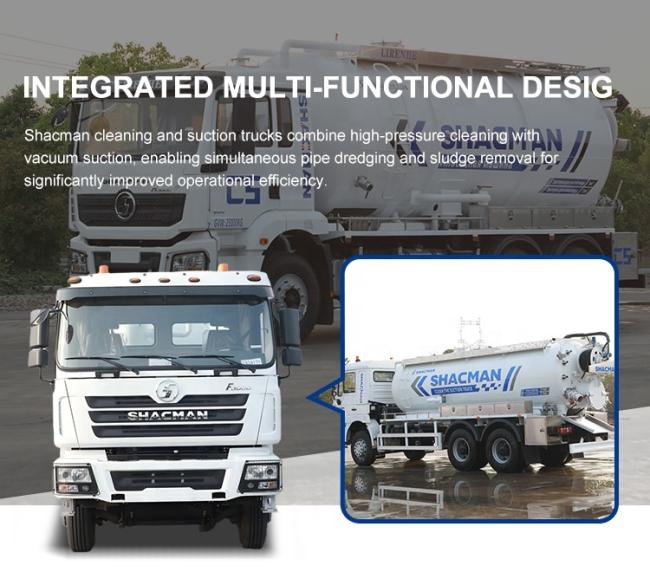

Q1: What are the key specifications I should focus on when choosing a vacuum truck? A: Focus on these three aspects: (1) Tank Capacity: Determines the suction volume per trip, directly impacting work efficiency. Choose based on your business volume (e.g., 5 cubic meters, 10m³, 15m³). (2) System Vacuum Degree (Suction Power): A higher vacuum rating allows for longer suction range and better ability to handle thick sludge and debris. (3) High-Pressure Cleaning System: An integrated high-pressure washer can flush pipes before or after suction, significantly improving dredging effectiveness. This is key to solving the customer pain point of "not being able to clean thoroughly in one go." Q2: Is the chassis brand or the body/building brand more important? A: Both are important and play different roles. (1) Chassis (e.g., shacman): Affects the vehicle's mobility, load-bearing capacity, and basic reliability. Choosing mainstream brands ensures easier after-sales service and repairs. (2) Body/Building (Tank, Vacuum Pump System): This is the "soul" of the vacuum truck, directly determining suction performance, durability, and operational efficiency. It is crucial to choose a professional body builder with mature technology and a good reputation. A reliable combination of "Chassis + Body" is the key. Q3: What are the safety risks when operating a vacuum truck, and how to avoid them? A: Main risks and precautions: (1) Tank Explosion Risk: Strictly avoid sucking in flammable or explosive materials. No open flames are allowed on-site, especially in confined spaces like septic tanks. (2) Poisoning and Asphyxiation Risk: When cleaning septic tanks or sewer wells, ensure prior ventilation. Operators should wear protective gear and avoid working alone. (3) Component Injury Risk: During suction and pressure release, ensure all covers and valves are secure, and keep personnel away from components like quick-connect couplings that might snap unexpectedly.

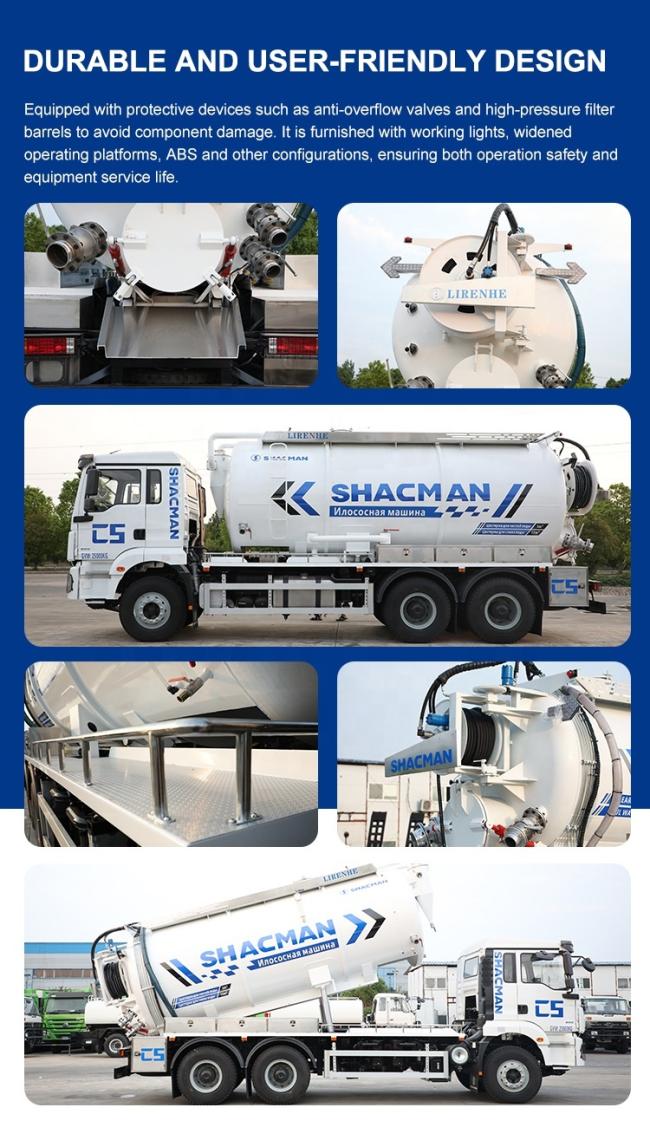

Q4: How should I maintain the vacuum truck in daily use to extend its lifespan? A: (1) Pre-operation: Check the vacuum pump oil level and ensure the oil mist lubricator is full. (2) During operation: Avoid sucking in hard objects like stones and metal to prevent damage to the tank and pump. (3) Post-operation: Clean the truck promptly, especially the inside of the tank, to prevent waste from solidifying and causing corrosion. Regularly drain and clean the oil-gas separator. Q5: Insufficient suction is a common issue. What could be the reasons? A: Insufficient suction is often caused by: (1) Leaks: Air leaks in the pipes, valves, or tank seals. This is the most common cause. (2) Clogs: The suction hose or anti-overflow valve is blocked by debris. (3) Component Wear: Worn vacuum pump vanes or use of incorrect oil, reducing pump efficiency. (4) Operational Issues: The tank is full, or the medium is too viscous. Q6: What is the warranty period for SHACMAN sewage vacuum trucks? A: We offer 12 months or 30,000 km warranty (whichever comes first) with extended options available. Q7: What's the delivery time for bulk orders? A: For orders of 10+ units, delivery time is 45-60 days. Q8: What payment methods do you accept? A: We accept T/T, L/C, and Alibaba Trade Assurance for secure transactions.
