High Force Electric Linear Actuator 1320 lbs Lift Capacity IP66 Waterproof 1"–24" Stroke
The LS-PAT-26 electric actuator delivers a powerful 6000N thrust in a compact design. With an IP66 protection rating, it maintains reliable operation under harsh conditions and serves as a durable, and space-optimized solution for lifting projects.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-26 |
| Voltage | 12V / 24V DC |
| Max. Load Force | 6000N (Push);3500N(Pull) |
| Max. Speed at Full Load | 3mm/s |
| Max. Speet at Free-load | 30mm/s |
| Stroke | 25mm - 600mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |

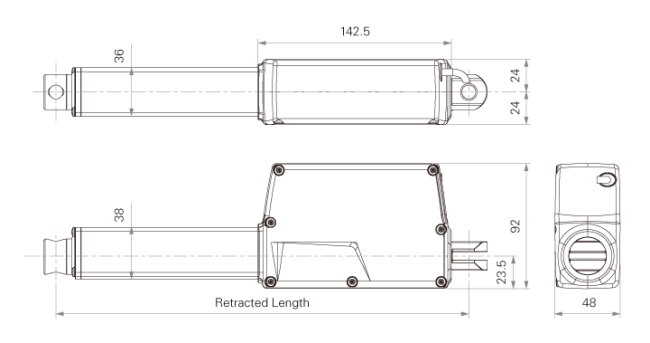

| Retracted Length | ≧178mm |
| IP Rating | IP66 |
| Operation Temperature | -5℃ - +45℃ |
| Color | Grey / Black |
- Up to 6000N maximum lifting force
- Space-saving form factor for tight installations
- Dust-tight and resistant to water jets for outdoor use
- Built for reliable, long-term use in demanding automation projects
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
