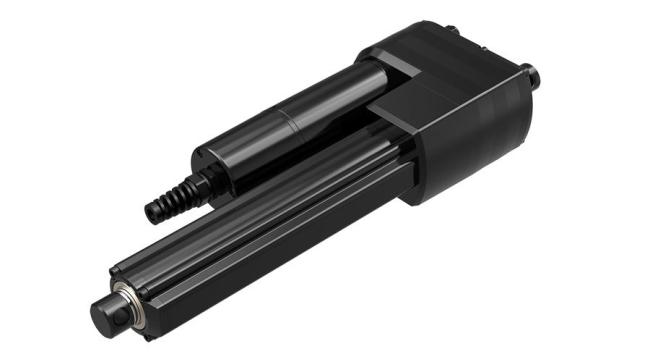

Industrial AC Motor Linear Actuator 4500N High Thrust 110V 220V AC IP69 Waterproof
This robust AC actuator offers high-torque performance with a maximum load capacity of 4500N and versatile 110V/220V dual-voltage compatibility. Designed for reliability in harsh environments, it features a manual drive override for emergency operation and a durable IP66-rated housing to withstand dust and high-pressure water.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-10 (AC motor) |
| Voltage | 115V AC 60Hz / 230V AC 50Hz |
|
Max. Load Force |
ACME screw: 2500N ; BALL screw: 4500N |
| Stroke | 20mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
|

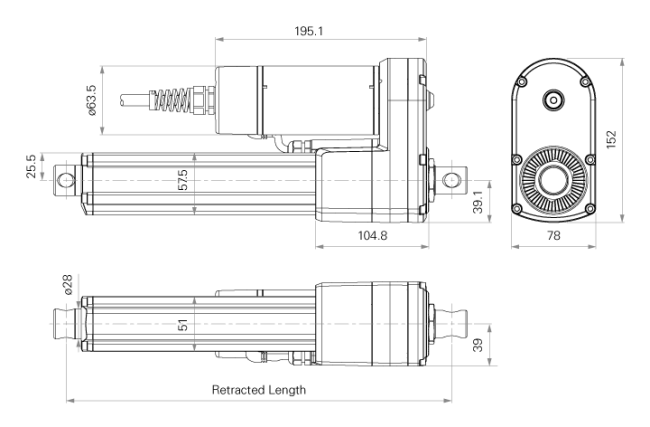

Retracted Length |
ACME screw: ≧Stroke + 160mm (W/O POT) Ball screw: ≧Stroke + 201mm (W/O POT) |
| IP Rating | IP69 |
| Operation Temperature | -40℃ - +80℃ |
| Manual Drive | Within |
| Options | Overload cluth; Motor brake; Mechanical brake |
| Color | Black |
- A powerful 4500N maximum load capacity for demanding industrial projects
- Offers 110V / 220V mains power for versatile global use
- IP69-rated housing with manual override ensures emergency operation and protection against dust and water
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
