3 Stage 6000N High Load Telescopic Lifting Column For Adjustable Platform Workstations
Designed for demanding vertical lifting, this 110×110 mm 2-stage column operates on 12V or 24V DC and handles loads up to 330 kg. It provides reliable, stable performance for a range of moderate to heavy-duty applications, including industrial workstations, medical equipment, and automated platforms.
*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-51 |
| Voltage | 24V DC |
| Max. Load Force | 600KG |
| Max. Speed at Full Load | 8mm/s |
| Max. Speet at Free-load | 26mm/s |
| Max. Dynamic bending moment | 1400Nm |
| Max. Static bending moment | 2800Nm |
| Stroke | 250mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |

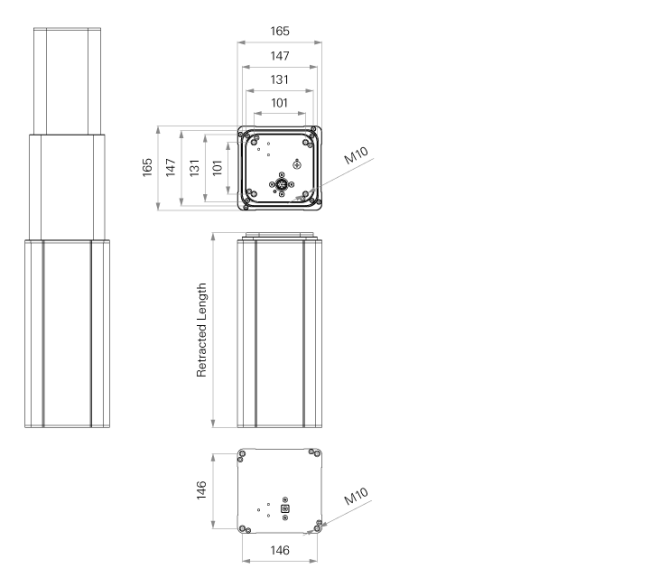

| Retracted Length | ≧Stroke/2 + 180mm OR ≧Stroke/2 + 240mm |
| Section | 3-stage , 165*165(mm), Square |
| Operation Temperature | -5℃ - +45℃ |
| Color | Silver / Black |
- High lifting force up to 6000 N suitable for heavy-duty applications
- 3-stage telescopic design providing a long stroke with a compact collapsed length
- High-quality extruded aluminum square profile ensuring excellent stability
- Multiple customization options, including stroke, color, and position feedback
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
