3 Stage Lifting Column 200KG Load Capacity Telescopic Pillars 700mm For Care Equipment
Engineered for reliable performance, this three-stage round lifting column offers a 2000N load capacity for smooth and stable height adjustment. It is an ideal solution for light-duty applications requiring precise vertical movement, such as adjustable furniture in automotive workshops and supportive structures for diagnostic equipment.
*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-8L |
| Voltage | 24V DC |
| Max. Load Force | 200KG (Push) |
| Max. Speed at Full Load | 9mm/s |
| Max. Speet at Free-load | 32mm/s |
| Max. Dynamic bending moment | 500Nm |
| Max. Static bending moment | 1000Nm |
| Stroke | 250mm - 700mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |

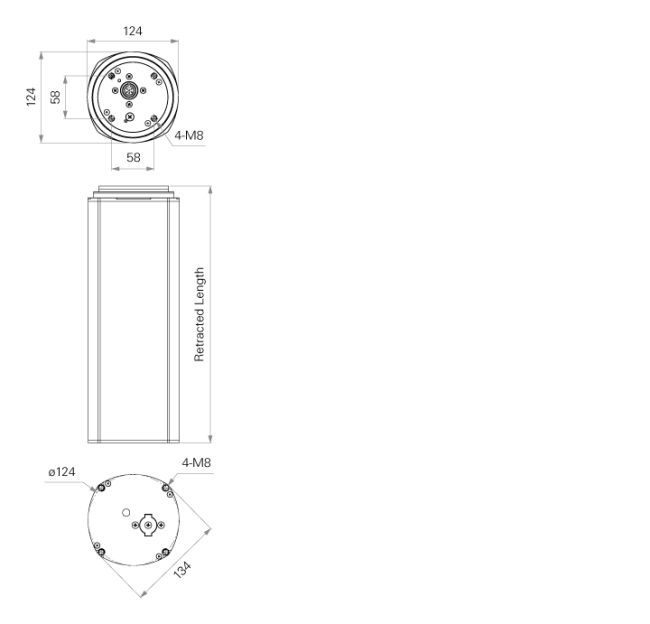

| Retracted Length | ≧Stroke/2 + 150mm |
| Section | 3-stage , ∅124, Round |
| Operation Temperature | -5℃ - +45℃ |
| Color | Silver / Black |
| IP Rating | IPX6 |
|
Note |
1.Recommended to be used in pairs 2.Push application only |
- Compact structure with an extended stroke
- Robust performance for reliable lifting
- Hall sensors optional for positional feedback
- sleek, smooth, and modern round profile
- Widely applied to care beds, nursing equipment, examination and therapy tables, adjustable medical furniture, rehabilitation systems, and other medium-load vertical lifting applications requiring smooth, quiet, and reliable motion.
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
