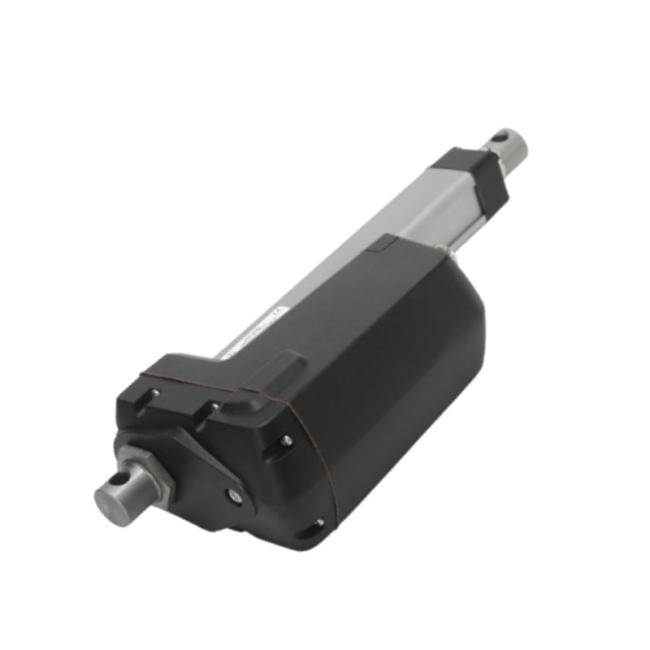

12000N Heavy Duty Electric Linear Actuator IP66 Manual Override 12V 24V 36V 48V DC
Tackle heavy-duty automation challenges with confidence. This 12000N thrust electric linear actuator is built to handle the toughest industrial lifting, pushing, and positioning applications—even in harsh, dusty, or wet environments (IP66 rated). Beyond raw power, it offers precision control through customizable feedback, protected by electronic overload safety and a reliable 25% duty cycle. Its built-in manual override ensures operation never stops, providing a critical safety buffer during unexpected power interruptions.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-HD3 |
| Voltage | 12V DC / 24V / 36V / 48V DC |
| Spindle Type | ACME Screw / Ball Screw |
|
Max. Load Force |
12000N |
| Max. Speed at Full Load |
4mm/s |
| Max. Speet at Free-load |
37mm/s |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
|

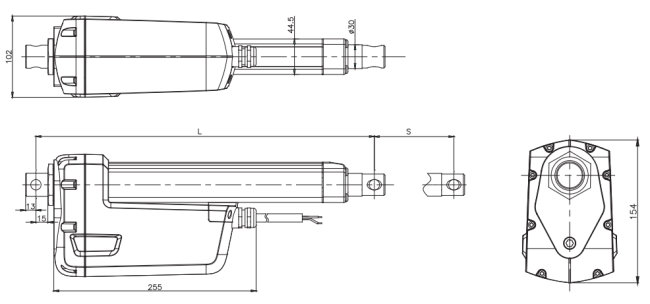

Retracted Length |
≧ Stroke +200mm |
| IP Rating | IP66 |
| Operation Temperature | -40℃ - +65℃ |
| Operations | Electrical / Manual override |
| Warranty | 18 months |
| Duty cycle | 25% |
| Motor type | Brushed DC |
|
Application |
Greenhouse Ventilation Solar Panel Tracking Operable Walls & Large Doors Retractable Roofs & Awnings |
- High Torque Brushed DC Motor with multi-voltage input compatibility
- IP66 Protection for dependable operation in dusty or wet conditions
- Versatile Feedback Options for precise and safe control
- 25% Duty Cycle ensures stability in continuous operation
- Dual-Mode Operation (Electric/Manual) provides safety backup during power loss
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
