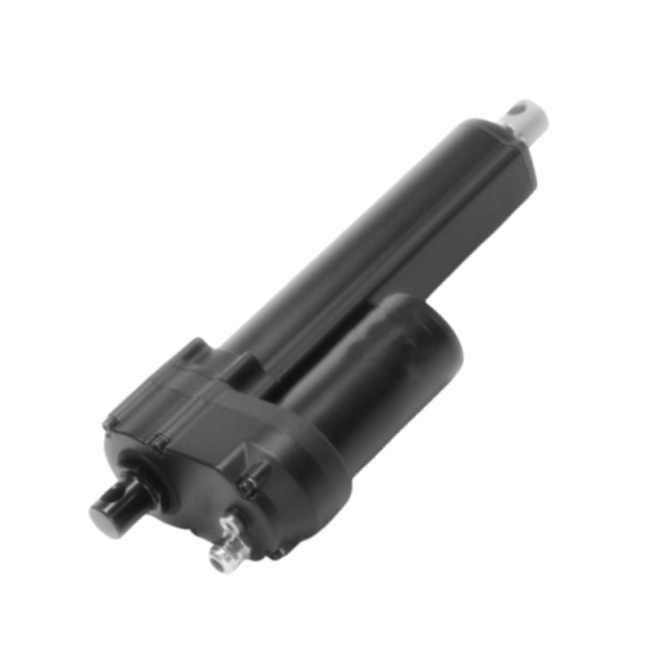

Rugged Linear Actuator IP65 Waterproof Electric DC Linear Actuator 7000N Manual Safety Override
Engineered for reliability in extreme conditions, IP65-rated motorized actuator LS-HD1 operates well between -40°C and +65°C. Its standout feature is the Manual Override Mode, offering a critical safety backup and easy installation adjustments during power-off scenarios. Whether for renewable energy, agricultural machinery, or marine and offshore hatch control, it delivers precision you can trust.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-HD1 |
| Voltage | 12V / 24V / 36V / 48V DC |
| Spindle Type | ACME Screw |
|
Max. Load Force |
7000N |
| Max. Speed at Full Load |
5mm/s |
| Max. Speet at Free-load |
35mm/s |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
|
Retracted Length |
≧ Stroke +200mm |
| IP Rating | IP65 |
| Operation Temperature | -40℃ - +65℃ |
| Operation | Electrical + Manual |
| Warranty | 18 months |
| Duty cycle | 25% |
| Motor type | Brushed DC |
|
Application |
solar tracking ；automated door/hatch operation |
- 25% high frequency balancing high output with long-term motor durability
- Built to perform in harsh climates with an operating temp. as low as -40°C
- Precision Feedback for accurate position tracking and synchronized movement
- Built-in manual mode ensures operational safety
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
