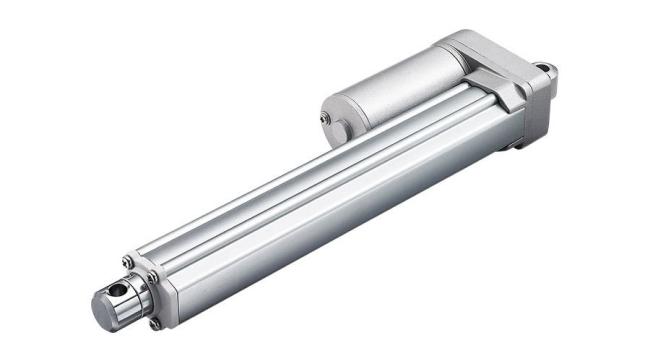

Waterproof Electric Linear Actuator 1000N Force 1000mm Long Stroke IP66 Rated For Light Industrial
This compact light-duty actuator features a robust construction and is designed to deliver reliable performance in outdoor as well, thanks to its IP66 protection rating. Despite its small installation size, the actuator provides a maximum force of up to 1000N, making it ideal for applications where space is limited but performance cannot be compromised.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-2 |
| Voltage | 12V / 24V DC |
| Max. Load Force | 1000N (Push/Pull) |
| Max. Speed at Full Load | 7mm/s |
| Max. Speet at Free-load | 76mm/s |
| Stroke | 20mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors / POT |
| Retracted Length | ≧ Stroke+105mm |
| IP Rating | IP66 |
| Operation Temperature | -5℃ - +45℃ |
| Color | Silver |
- Compact size for installations with limited mounting space
- Long customizable stroke from 20 to 1000mm
- A maximum1000N output force delivering reliable linear motion
- IP66-rated protection suitable for outdoor projects
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal

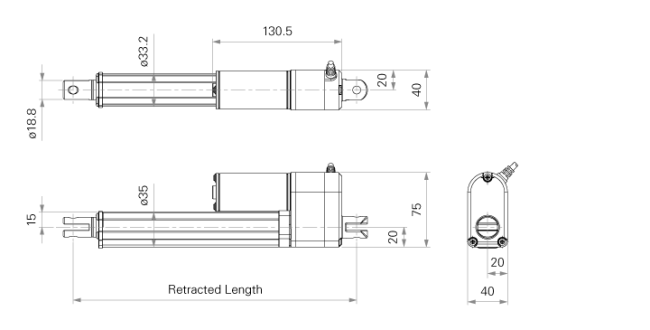

Dimensions with Output Signals (mm)

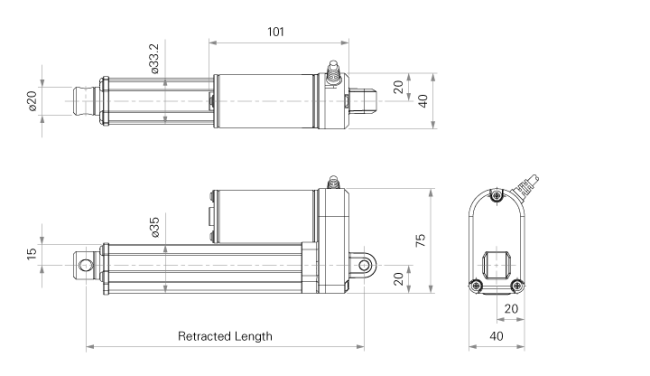

Dimensions without Output Signals (mm)
