Micro 24V DC Linear Actuator 500N Load Precise Motion Ultra Compact Linear Actuator
Delivering a smooth 500N of force, it is expertly crafted for light-duty adjustments such as hidden desk drawers, motorized cabinet doors, and ergonomic office furniture where unobtrusive motion is the top priority.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-31 |
| Voltage | 24V DC |
| Max. Load Force | 500N (Push) |
| Max. Speed at Full Load | 4.8mm/s |
| Max. Speet at Free-load | 16mm/s |
| Stroke Options | 15mm/ 25mm/ 31mm/ 34mm/ 40mm/ 44mm/ 50mm |
| Signal Output(Opional) | Hall sensors |
| Limit switches | Built in |

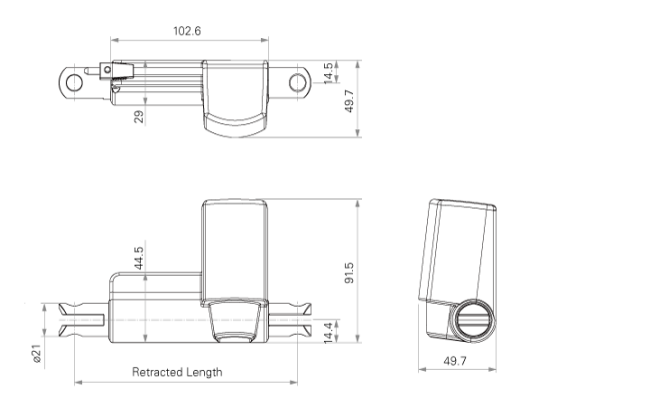

| Retracted Length | 143mm |
| Color | Black / Grey |
| Applications | laboratory test stands; automated shelving; Motorized Headrest Adjustment |
- 500N thrust for light-load adjustments
- Optimized for indoor applications
- Ultra-compact profile for hidden installation
- Highly economical and maintenance-free
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
