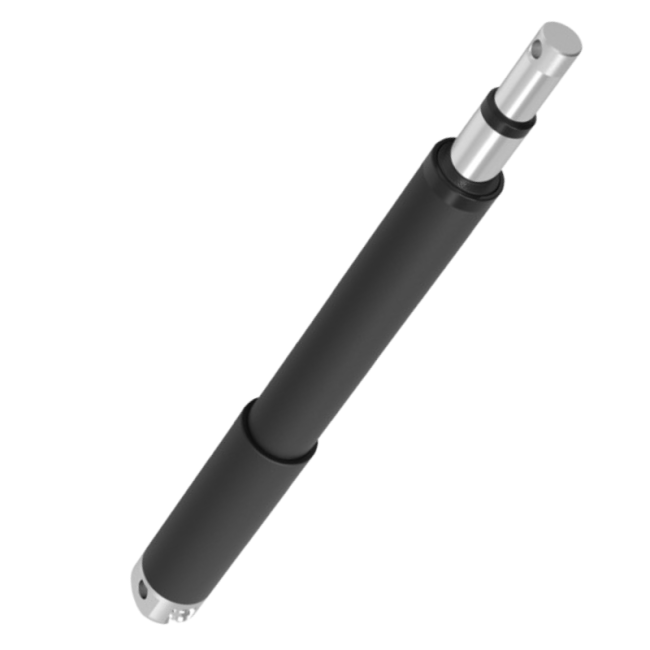

3 Stage Telescoping Electric Actuator 330lb High Thrust Space Saving Industrial Automation
This three-stage tube-shaped telescopic actuator delivers a robust maximum thrust of 330 pounds and offers a versatile, customizable stroke range from 200mm to 1200mm to fit various application needs.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-GM-2 |
| Voltage | 12V DC / 24V DC |
| Max. Load Force | 1500N |
| Speed | 8mm/s - 75mm/s |
| Noise Level | ≤60dB |
| Stroke | 200mm - 1200mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |

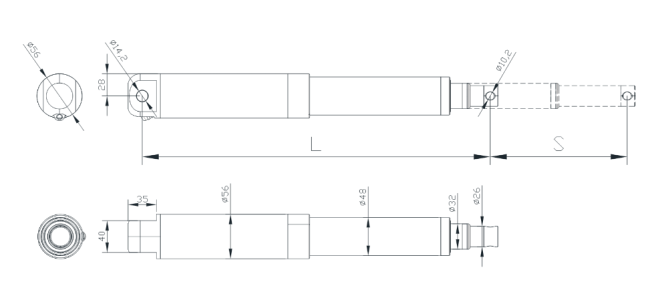

| Retracted Length |
≧Stroke/2 + 350mm |
| Section | 3-stage |
| Operation Temperature | -10℃ - +50℃ |
- Tube design for a compact installation
- 200mm to 1200mm long stroke options
- 150KG max. lift capacity for light-duty projects
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
