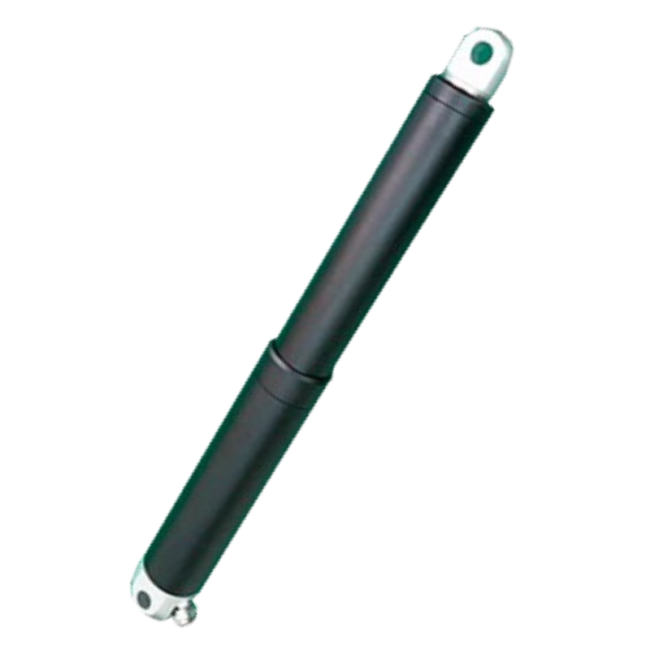

Heavy Duty 300KG Inline Linear Actuators Slim 38mm Waterproof IP66 Electric Motor
Engineered for constrained spaces, this 38mm tube actuator generates an impressive 300kg load force from an ultra-slim profile. It thrives in harsh conditions, thanks to a sealed IP65 construction and a durable brushless DC motor designed for continuous, dependable operation with minimal upkeep.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-L38 |
| Voltage | 12VDC / 24VDC |
| Max. Load Force | 3000N |
| Max. Speed at Full Load | 3.5mm/s (3000N) |
| Max. Speet at Free-load | 9mm/s (2000N) |
| Stroke | 10mm - 600mm |
| Limit Switch | Built-in |
| Signal Output(Optional) | Hall Sensors |
| Retracted Length | ≧Stroke + 240mm |
| IP Rating | IP66 |
| Operation Temperature | -25℃ - +65℃ |
| Color | black / Silver |
| Warranty | 18 months |
- Handle Heavy-Duty Tasks
- Install in Tight Spaces
- Built for Harsh Environments
- Control with Precision
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
