1350 Lbs Heavy Duty Lifting Column High Thrust 2 Stage DC Pillar Actuator 12V 24V
This high-thrust 2-stage DC lifting column delivers powerful, stable vertical motion for height-adjustable workbenches, industrial platforms, medical and rehabilitation equipment, RV tables, and heavy-duty automation systems requiring reliable linear elevation.
*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-JLC-01 |
| Power Input | 12V / 24V DC |
| Max. Lift Capacity | 6000N |
| Travel | Customizable |
| Limit switch | Built in |
| Position Feedback | Hall Effect Sensors (Optional) |

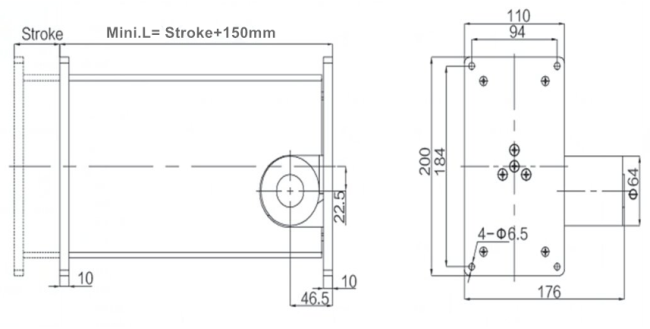

| Installation Dimension | Minimum Profile: Stroke + 150mm |
| Telescopic Profile | 2-Section Precision Extrusion |
- Delivers up to 1350 lbs of lifting force for demanding load applications
- Two-stage telescopic design ensures smooth, space-saving vertical extension
- Available in 12V or 24V DC options for flexible integration into various systems
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
