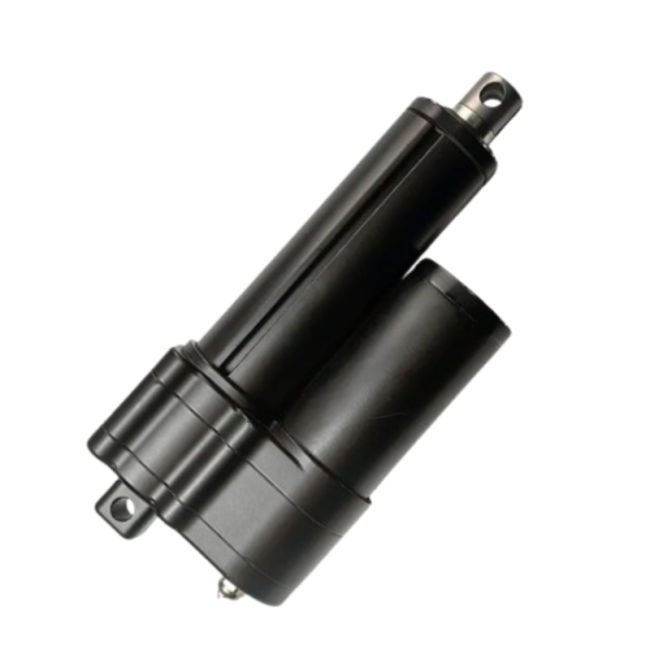

900lbs Heavy Duty Linear Actuators 12V 24V DC Actuator IP66 For Trucks Boats Solar Systems
This heavy-duty 12V/24V DC electric linear actuator delivers up to 400KG lifting force with IP66 waterproof protection, making it ideal for reliable motion control in trucks, boats, and solar tracking systems.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-HD7 |
| Voltage | 12V / 24V / 36V / 48V DC |
| Spindle Type | ACME Screw |
|
Max. Load Force |
4000N |
| Max. Speed at Full Load |
4mm/s (4000N) |
| Max. Speet at Free-load |
32mm/s (600N) |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |
|
Retracted Length |
≧ Stroke +180mm |
| IP Rating | IP65 |
| Operation Temperature | -40℃ - +65℃ |
| Operation | Electrical + Manual |
| Warranty | 18 months |
| Duty cycle | 20% |
| Motor type | Brushed DC |
|
Application |
Truck Tonneau Cover Lifts; RV Slide-Outs & Steps; Off-Road Utility Bed Lifts; Automated Pool Covers |
- Provides powerful and stable linear motion for demanding mobile and outdoor applications
- Sealed design protects against dust, rain, and harsh environments.
- Provides powerful and stable linear motion for demanding mobile and outdoor applications
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
