2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm

Price Negotiable
Price: 199USD-499USD
MOQ: 1 SET
Delivery Time: 2 WEEKS
Brand: MaxM
Product Description



         2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm



This electric lifting column features a high dynamic bending moment, delivering exceptional stability. Its elegant outer tubes are crafted from aluminum alloy, and an integrated AC plug enables direct connection to computers and TVs. These features make it widely suitable for healthcare and smart home applications.


*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs


Specifications:
Model LS-LC50
Voltage 24VDC
Max. Load Force 1150N
Max. Speed at Full Load 32mm/s
Max. Speet at Free-load 49mm/s
Max. Dynamic bending moment 542.5Nm
Max. Static bending moment 1085Nm
Stroke 200mm - 900mm
Limit Switch Built in
Signal Output(Optional) Hall Sensors

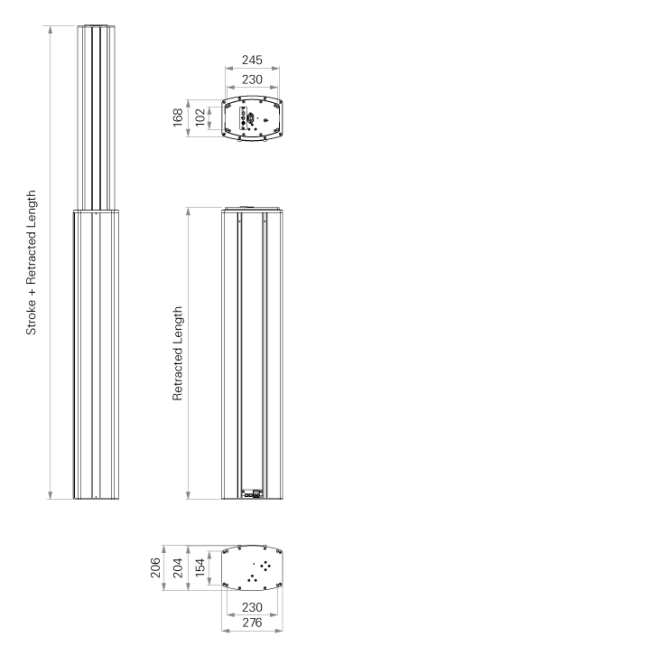

Retracted Length ≧Stroke+ 500mm
Section 2-stage
Operation Temperature -5℃ - +45℃
Color Silver

Features:
  • High Dynamic Bending Moment – Delivers exceptional stability under dynamic loads
  • Elegant Aluminum Alloy Construction – crafted from aluminum alloy for durability and aesthetics.
  • Integrated AC Plug – Enables direct connection to computers and TVs for simplified setup.


Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
