The Online Turbidity Sensor, Optical Turbidity Probe, Automatic Cleaning Brush, RS485 Output, Is Put Into Use

1. Product Introduction
    The brand-new KNF-1004/A series turbidity sensor from Kainafu adopts the 90° scattered light measurement principle and complies with the ISO7027 international standard. It features custom quartz optical components, is compact in size, robust and durable, easy to install and maintain, less susceptible to environmental light interference, and offers superior repeatability and stability. The sensor does not require reagents, is pollution-free, has a long service life, and is economical and environmentally friendly.

2. Sensor features
Digital sensor, RS-485 output, standard Modbus protocol, strong anti-interference ability
The 90° scattered light principle quartz glass window is not affected by ambient light and chromaticity
Equipped with an automatic cleaning device (KNF-1004A
Built-in calibration parameters, precisely calibrated at the factory, and can be directly installed and used
Equipped with turbidity calibration software, it can set the ID and calibrate the sensor

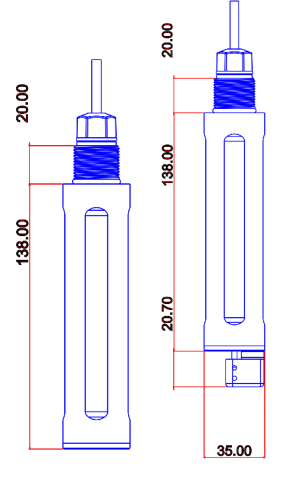

Sensor size unit (mm)

3.Technical indicators

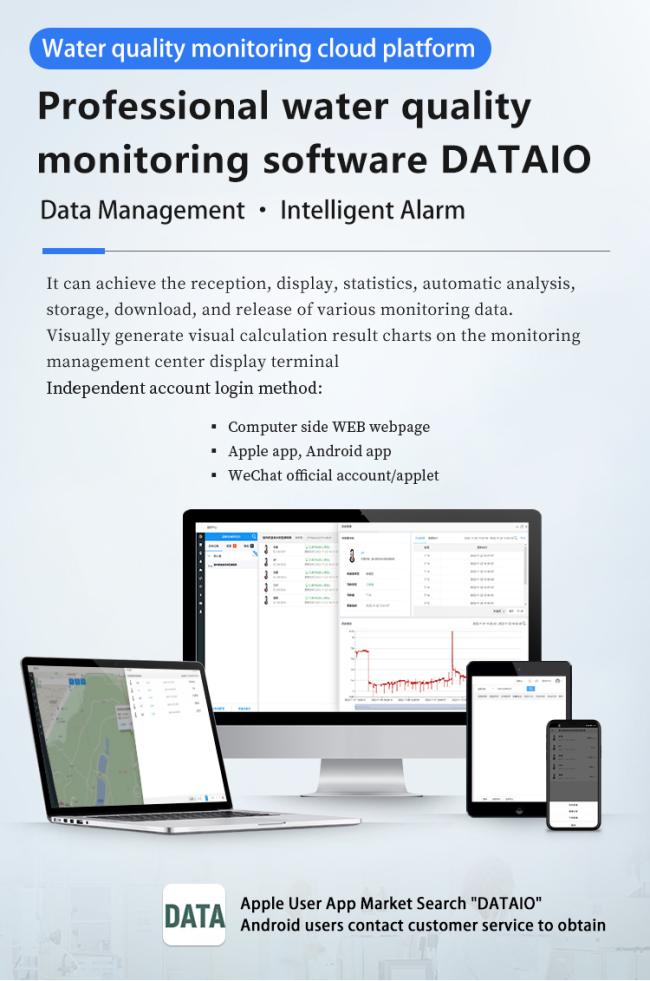

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

    All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program
