The Buoy Water Quality Monitoring System Features 4G Wireless Transmission, With Optional Monitoring Indicators And An Automatic Cleaning Brush, Requiring Low Maintenance

1.Product Introduction

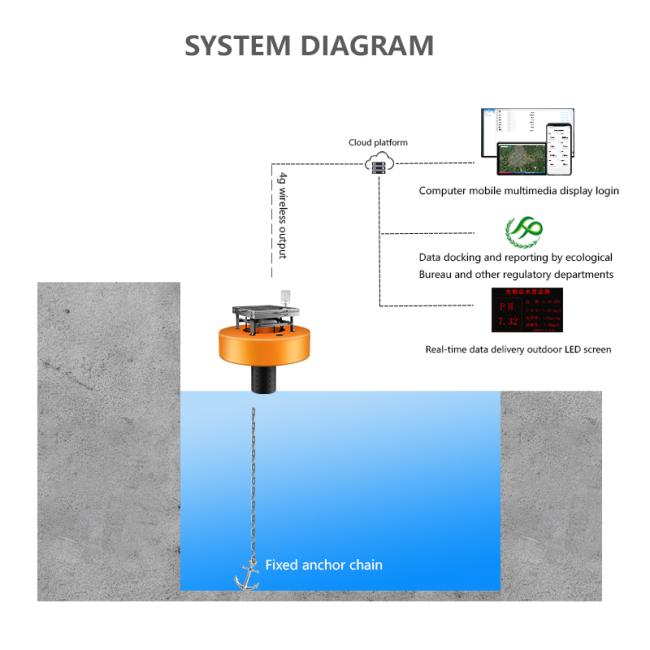

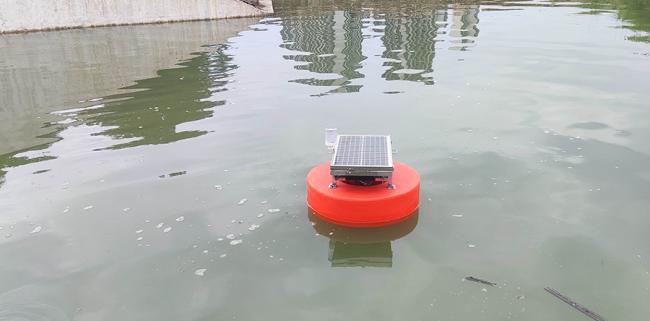

    Buoy-type water quality monitoring system KNF-407S integrates all parameter sensors on the buoy and places them in the water to be monitored. It can be installed and put into use without hoisting, which is suitable for real-time online monitoring of unattended waters in the wild. Modern wireless communication technology is used to realize data transmission and remote control between buoy system and Kenafu monitoring platform, and to realize online automatic monitoring and early warning of water quality in rivers, reservoirs, lakes, aquaculture and other fields.

    The system adopts advanced material technology, solar power supply technology, sensor online monitoring technology, data acquisition and cloud platform monitoring technology, combined with rich field operation and maintenance experience, the monitoring system and modern water monitoring means are manufactured. The buoy monitoring system can observe water quality, meteorology and other contents all day, continuously and at fixed points, and transmit the data to the central station in real time.

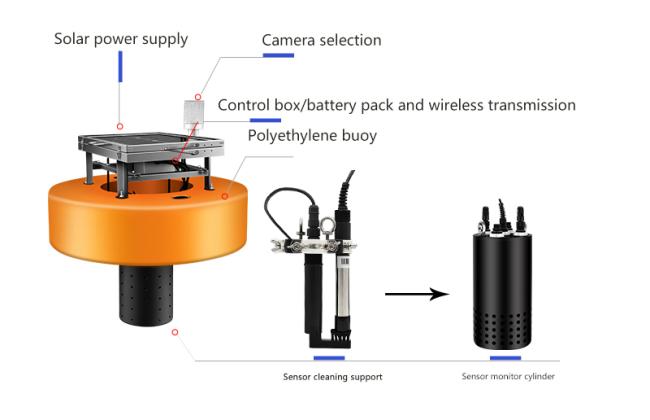

2.Characteristics of KNF-407S buoy water quality monitoring system:

Low center of gravity design, more stable and reliable, maximum buoyancy of 40kg.

Modular design, strong expansibility, and extremely simple later maintenance.

The measurement index can be selected according to the sensor, and no reagent is needed for monitoring.

The sensor can be equipped with built-in automatic cleaning device, which is very convenient for later operation and maintenance with extremely low maintenance.

Optional: 4G,RS485,NB and other data transmission modes.

Have Kenafu Internet of Things data management cloud platform and APP.

 3.Technical indicators

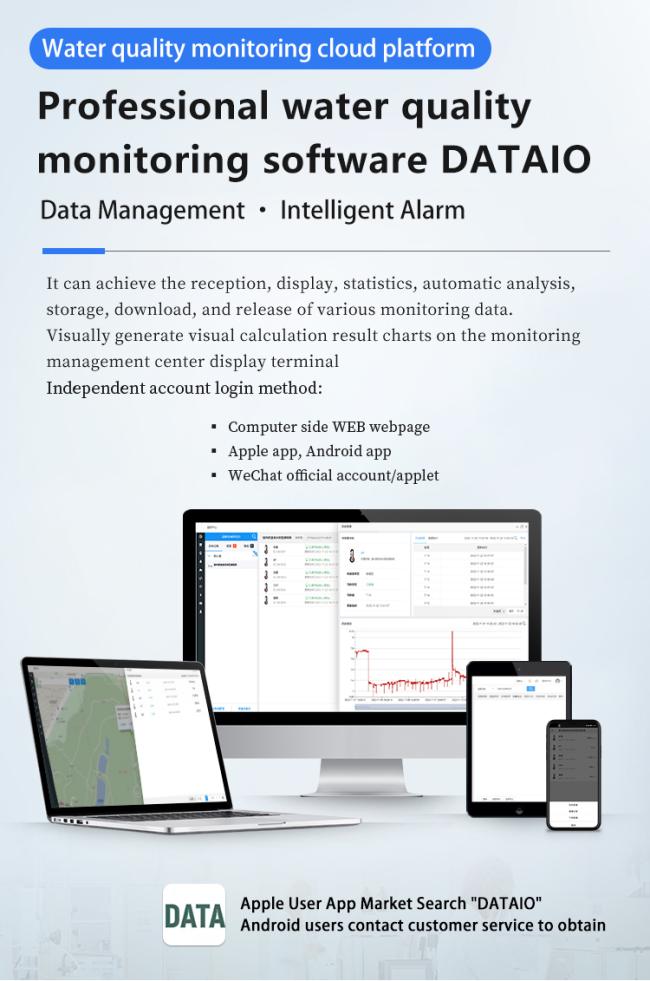

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

    All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program
