Automatic Water Level Gauge Submersible Probes Radar Current Meter Non Contact
Radar Current Meter/Non-contact Installation, Ultra-high Sensitivity, Bidirectional Automatic Recognition Of Flow Velocity
The KNF-1312 radar current meter is a radar current meter integrating a microstrip antenna, RF circuit and signal processing circuit. It directly outputs the velocity information of the target and is used for flow velocity measurement in rivers and underground pipe networks. The radar adopts German imported integrated chips, a pre-low-noise amplifier and ultra-high sensitivity.
Technical indicators
|
Voltage |
Power supply |
36 |
V |
|
Temperature
|
Working temperature |
85 |
℃ |
|
Storage temperature |
125 |
℃ |
|
|
|
|
|
|
|
Measurement range |
0.1-20m/s |
Measurement accuracy |
±0.01m/s |
|
Resolution |
0.01m/s |
Identification of flow velocity direction |
Bidirectional automatic identification |
|
Measurement time |
once/s |
Data interface |
RS485(9600bps) |

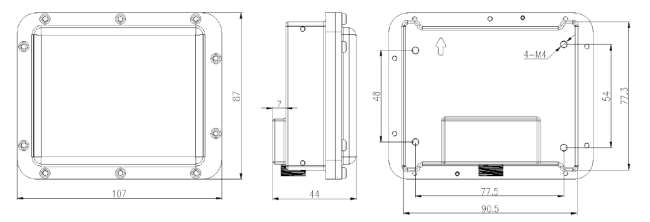

Size
